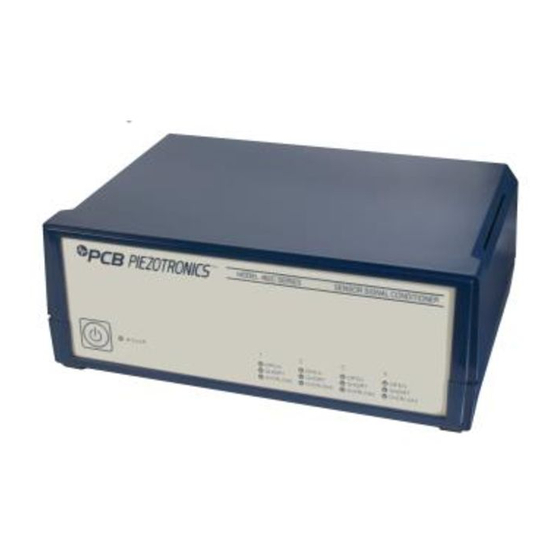

Model 482C16
4-channel, line-powered, ICP® sensor signal cond., incremental gain x0.1 to x200, RS-232
Installation and Operating Manual
For assistance with the operation of this product,
contact the PCB Piezotronics, Inc.
Toll-free: 716-684-0001
24-hour SensorLine: 716-684-0001
Fax: 716-684-0987
E-mail: info@pcb.com
Web: www.pcb.com
