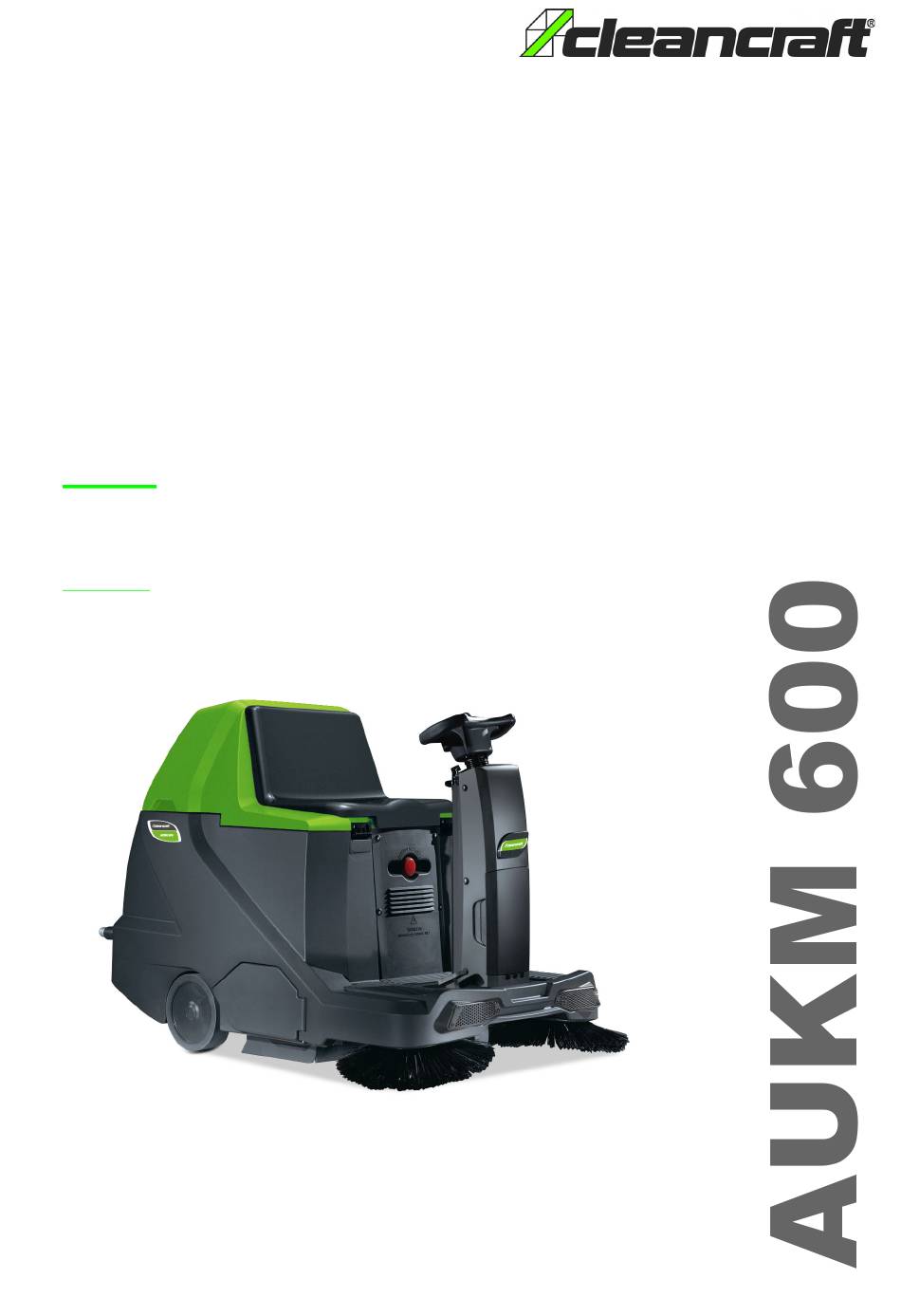

  • Page 1 Operating Instruction Sweeping Machine AUKM 600 AUKM 600...

  • Page 2: Imprint

    Imprint Product identification CLEANCRAFT Sweeping Machine AUKM 600 Artikelnummer:7305060 Stürmer Maschinen GmbH Manufacturer Dr.-Robert-Pfleger-Str. 26 D-96103 Hallstadt 0049 (0) 951 96555 - 55 Fax: E-Mail: info@cleancraft.de www.cleancraft.de Internet: Indications regarding the operating instructions Original Instructions Edition: 17.08.2017 Version: 1.01 Language: English...
  • Page 3 The descriptions contained in this document are not binding. The company therefore reserves the right to make any modifications at any time to elements, details, or accessory supply, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings contained in this document is prohibited by law.

  • Page 4: Table Of Contents

    CONTENTS IMPRINT........................................CONTENTS......................................... ON CONSIGNMENT OF THE MACHINE ..............................6 INTRODUCTORY COMMENT ..................................6 IDENTIFICATION DATA .................................... 6 TECHNICAL DESCRIPTION ..................................6 INTENDED USE ......................................6 SERIAL NUMBER PLATE ..................................6 TECHNICAL DESCRIPTION ..................................7 SYMBOLS USED ON THE MACHINE ................................ 8 GENERAL SAFETY REGULATIONS ...............................
  • Page 5 WEEKLY MAINTENANCE ..................................29 27. CLEANING THE PANEL FILTER................................... 29 28. CLEANING THE FABRIC FILTER (OPTIONAL) ..............................30 29. CLEANING THE DEBRIS HOPPER ..................................31 EMERGENCY MAINTENANCE .................................. 32 30. SIDE BRUSH ADJUSTMENT ....................................32 31. CENTRAL BRUSH FLAP ADJUSTMENT ................................. 32 32.

  • Page 6: On Consignment Of The Machine

    ON CONSIGNMENT OF THE MACHINE SERIAL NUMBER PLATE When the machine is consigned to the customer, an immediate check The serial number plate is located at the rear of the steering column, must be performed to ensure all the material mentioned in the shipping and indicates the general characteristics of the machine, in particular the documents has been received, and also to check the machine has not serial number of the machine.The serial number is an extremely...

  • Page 7: Technical Description

    TECHNICAL DESCRIPTION AUKM 600 Working width without side brush Working width with right side brush Working width with left and right side brush 1000 Working capacity, up to (2SL version with two side brushes) 5100 Central brush Ø mm Side brush Ø...

  • Page 8: Symbols Used On The Machine

    SYMBOLS USED ON THE MACHINE Main switch symbol (version B) Used on the steering column to indicate the key switch for machine operation on (I) or off (0) Horn symbol Used to indicate the acoustic alarm button. Symbol of the reverse movement selector. Used to indicate the button for engaging the reverse gear.
  • Page 9 SYMBOLS USED ON THE MACHINE Side brush/es movement symbol (idle position) Used on the rear of the steering column to indicate the movement lever of the side brush/es. Side brush/es movement symbol (working position) Used on the rear of the steering column to indicate the movement lever of the side brush/es. Indicates the risk of crushed hands Indicates the risk of burns due to the hot surface Indicates the maximum gradient...

  • Page 10: General Safety Regulations

    GENERAL SAFETY REGULATIONS The regulations below must be carefully followed in order to avoid harm to the operator and damage to the machine. WARNING: Read the labels on the machine carefully. Do not cover them for any reason and replace them immediately if they become damaged. •...

  • Page 11: Machine Preparation

    MACHINE PREPARATION 1. HANDLING OF THE PACKED MACHINE The machine is contained in specific packaging with a pallet for the handling with fork trucks. The packages cannot be placed on top of each other. The total weight of the machine with its packaging is 210 kg The dimensions of the packaging are as follows: A : 1270 mm B : 1020 mm...

  • Page 12: Handlebar Control Components

    MACHINE PREPARATION 4. HANDLEBAR CONTROL COMPONENTS The handlebar control components are identified as follows: Level indicator for battery/hour meter. Filter shaker control button. Horn button. Reverse button. Vacuum motor "STOP" button. 5. STEERING COLUMN COMPONENTS The steering column components are identified as follows: Central brush lifting lever.

  • Page 13: Front Components

    MACHINE PREPARATION 7. FRONT COMPONENTS The front components of the machine are identified as follows: Storage compartment. Headlights. 8. SIDE COMPONENTS The components on the side of the machine are identified as follows: Left side panel central brush engage/adjustment. Seat unit lifting handle. Right side panel central brush maintenance.

  • Page 14: Battery Maintenance And Disposal

    MACHINE PREPARATION 11. BATTERY MAINTENANCE AND DISPOSAL For information about battery maintenance, refer to the instructions provided by the battery manufacturer. When the battery reaches the end of its working life, it must be disconnected by expert, trained personnel, then lifted (using the grips and suitable lifting devices) to remove it from the battery compartment. EXHAUSTED BATTERIES ARE CLASSIFIED AS DANGEROUS WASTE AND MUST BE CONSIGNED TO THE AUTHORISED BODIES FOR CORRECT DISPOSAL.
  • Page 15 MACHINE PREPARATION Grasp the handle located on the side of the operator seat unit. Lift the operator seat unit until the safety clamp (3) is hooked. WARNING: Before installing the battery, clean the battery compartment with a damp cloth. Check that the connectors on the cables supplied are functioning correctly. WARNING: Check that the characteristics of the battery that you are looking to use are appropriate for the type of work to be performed.

  • Page 16: Connecting The Batteries And Battery Connector

    MACHINE PREPARATION 14. BATTERY CHARGER CONNECTION In order not to cause permanent damage to the batteries, it is essential to avoid their complete discharge: arrange the recharge within a few minutes of the switching on of the "discharged batteries" blinking light. WARNING: Never leave the batteries completely discharged, even if the machine is not being used.

  • Page 17: Battery Charger Connection (Without Bc)

    MACHINE PREPARATION Connect the recently wired cable to the external battery charger. WARNING: Carefully read the use and maintenance instructions of the battery charger that is used for charging. WARNING: Danger of gas exhalation and leakage of corrosive liquids. WARNING: Danger of fire: do not go near with free flames When the recharge cycle is complete, disconnect the battery charger connector from the external battery charger.
  • Page 18 MACHINE PREPARATION To connect the battery charger you must: Move the machine to the place used for maintenance or recharging the batteries. Make sure the electric brake is engaged, otherwise engage it using the lever (1) located at the left rear of the machine (working direction).

  • Page 19: Battery Charge Level Indicator

    MACHINE PREPARATION 16. BATTERY CHARGE LEVEL INDICATOR On the instrument panel of the machine there is a monitor (1) indicating (amongst other things) the battery charge status. If the lower line contains ten light indicators, the battery charge level is 100%. If the battery charge percentage is at 00% and flashing, this means the batteries are discharged.

  • Page 20: Preparing To Work

    PREPARING TO WORK 21. PREPARING TO WORK Before beginning to work, it is necessary to: Ensure that the debris hopper is empty, otherwise empty it completely (see paragraph "EMPTYING THE DEBIT HOPPER"). Check that the condition of the central brush is suitable for the work, otherwise arrange for its maintenance (see paragraph "CLEANING THE BRUSH CENTRAL"...

  • Page 21: Work

    WORK 22. STARTING WORK To start working, do as follows: Carry out all controls indicated in paragraph “PREPARING TO WORK )”. Sit on the driver’s seat. Turn the main switch key (1) clockwise by a quarter of a turn to position "I". The control display on the instrument panel will immediately comes on.
  • Page 22 WORK If the machine does not move and the control display shows "ELECTRO-BRAKE?" the electric brake has to be engaged, using the lever on the rear left of the machine (work direction). To lower the right side brush (1SL versions) or both side brushes (2SL versions) simply turn the lever (4) clockwise.

  • Page 23: Emergency Button

    WORK 23. EMERGENCY BUTTON If there are any problems while you are working, press the emergency button (1) beneath the seat (B versions) or on the steering column (Hybrid versions). This command interrupts the electric circuit between the batteries and the machine system, so the machine stops and the electric brake is triggered. To resume work, having solved the problem, proceed as follows: Rotate the key (2) of the main switch to the "0"...
  • Page 24 WORK Turn the latches (5) in order to release the debris hopper, turn the left latch counterclockwise and the right latch clockwise. WARNING: you are advised to always wear protective gloves, to avoid the risk of serious injury to your hands. Grasping the handle (6) on the debris hopper, remove it from the machine.

  • Page 25: At The End Of Work

    AT THE END OF WORK At the end of work, and before carrying out any type of maintenance, perform the following operations: Stop the machine close to the place where the debris hopper is emptied. Lift the central brush by turning the lever (1) anti-clockwise. Lift the side brush if lowered, by rotating the lever (2) clockwise.
  • Page 26 AT THE END OF WORK 10. Turn the latches (5) to secure the debris hopper to the body, turn the left latch clockwise and the right latch counterclockwise. 11. Turn the key (4) of the main switch to "I" or "II", depending on the type of power source you want to use. 12.

  • Page 27: Daily Maintenance

    DAILY MAINTENANCE PERFORM ALL MAINTENANCE OPERATIONS IN SEQUENCE 25. CLEANING THE CENTRAL BRUSH Proceed as follows in order to clean the central brush: Make sure the electric brake is engaged, otherwise engage it using the lever located at the left rear of the machine (working direction).

  • Page 28: Cleaning The Side Brush

    DAILY MAINTENANCE 26. CLEANING THE SIDE BRUSH Proceed as follows in order to clean the side brush: Make sure the electric brake is engaged, otherwise engage it using the lever located at the left rear of the machine (working direction). Check the main switch (1) is in the “0”...

  • Page 29: Weekly Maintenance

    WEEKLY MAINTENANCE 27. CLEANING THE PANEL FILTER Whenever the vacuum action seems to be unsatisfactory, check that the vacuum filter is not obstructed. If necessary clean with an air jet as follows: Make sure the electric brake is engaged, otherwise engage it using the lever located at the left rear of the machine (working direction).

  • Page 30: Cleaning The Fabric Filter (Optional)

    WEEKLY MAINTENANCE 28. CLEANING THE FABRIC FILTER (OPTIONAL) Whenever the vacuum action seems to be unsatisfactory, check that the vacuum filter is not obstructed. If necessary clean with an air jet as follows: Make sure the electric brake is engaged, otherwise engage it using the lever located at the left rear of the machine (working direction).

  • Page 31: Cleaning The Debris Hopper

    WEEKLY MAINTENANCE 29.CLEANING THE DEBRIS HOPPER Clean the debris hopper every week as follows: Make sure the electric brake is engaged, otherwise engage it using the lever located at the left rear of the machine (working direction). Check the main switch (1) is in the “0” position, if this is not the case, turn the key by a quarter of a turn to the left, and remove the key from the instrument panel.

  • Page 32: Emergency Maintenance

    EMERGENCY MAINTENANCE 30. SIDE BRUSH ADJUSTMENT If the side brush does not channel the dirt efficiently towards the centre of the machine, you must adjust its height in relation to the ground, as follows: Make sure the electric brake is engaged, otherwise engage it using the lever located at the left rear of the machine (working direction).

  • Page 33: Central Brush Replacement

    EMERGENCY MAINTENANCE Open the left cover (3) (depending on the direction of travel). Make sure there is about 2 mm between the left flap (4) and the ground, otherwise loosen the nuts (5) and make the adjustment using the proper tool. WARNING: For the correct operation of the machine the distance of the flap from the ground must be even throughout its length.

  • Page 34: Side Brush Replacement

    EMERGENCY MAINTENANCE Remove the knob (5) that secures the lifting arm of the brush, by turning it counterclockwise. Remove the lifting arm (6) and the left side casing (7) of the brush. Remove the brush from the tunnel and replace it with the new one. Repeat the operations in reverse to reassemble.

  • Page 35: Troubleshooting

    TROUBLESHOOTING 34. THE MACHINE DOES NOT START Make sure that the key switch is turned to "I" or "II", depending on the type of power source you want to use. Make sure the battery connector is connected to the connector of the machine system. Check that batteries are charged.

  • Page 36: Disposal

    The central brush has bristles of 1.1mm and of 0.7mm to comply with both characteristics. TABLE FOR CHOOSING THE BRUSHES Machine No. of Code Type of bristles Length Notes ∅ Bristles ∅ Brush brushes 7311010 PPL + PPL + BRONZE 0.7 + 1.1 + // CENTRAL BRUSH AUKM 600 7311011 SIDE BRUSH...

  • Page 37: Spare Parts Drawing

    Spare parts drawings...
  • Page 38 SEITEN BÜRSTE 1.,,/ SEITENBÜRSTE �...
  • Page 39 LENKUNGSGRUPPE LENKUNGSGRUPPE...
  • Page 40 LENKRADBAUGRUPPE FAHRMOTOR...
  • Page 41 VORDERRAD...
  • Page 43 STEUEREINHEIT GRUPPE FILTER-...
  • Page 44 FILTERGEWEBE ABSAUGEINHEIT / / / 1 �...
  • Page 45 BATTERIE GRUPPE ELEKTROTEILE...

  • Page 46: Wiring Diagram

    Wiring Diagram...

  • Page 47: Ec Declaration Of Conformity

    D-96103 Hallstadt hereby declares that the following product Product group: Cleancraft® Sweeping Machine Machine type: Machine designation: AUKM 600 7305060 Item number: ____________________ Serial number: 20_________ Year of manufacturer: complies with all relevant regulations of the aforementioned directive as well as any other, applicable directives (subsequently added) –...
