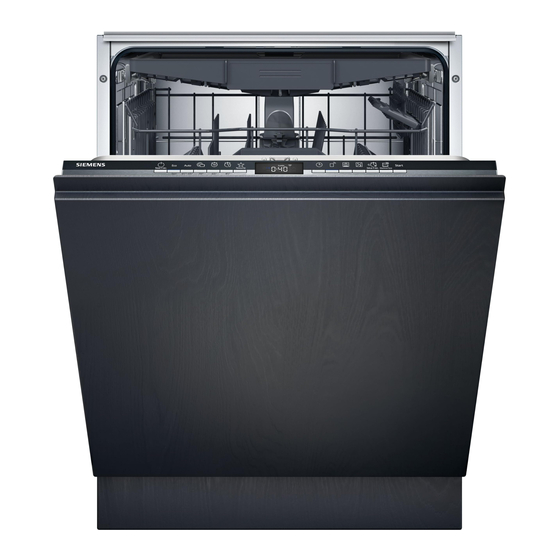

- Page 1 SN73EX02CE Dishwasher EN Information for Use Register your appliance on My Siemens and discover exclusive services and offers. Siemens Home Appliances...
-
Page 2: Table Of Contents
Further information and explanations are available online: Table of contents 1 Safety ........... 4 8 Features........ 21 1.1 General information.... 4 8.1 Top basket....... 22 1.2 Intended use...... 4 8.2 Etagere ........ 22 1.3 Restriction on user group.. 4 8.3 Bottom basket ...... 23 1.4 Safe installation ...... - Page 3 20 Customer Service.... 51 13.2 Arrange tableware .... 31 20.1 Product number (E-Nr.), 13.3 Removing tableware.... 33 production number (FD) 14 Basic operation ....... 33 and consecutive numbering (Z-Nr.) ........ 52 14.1 Switching on the appliance ... 33 20.2 AQUA-STOP guarantee .. 52 14.2 Setting a programme ....
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe ¡ for future reference or for the next owner. Do not connect the appliance if it has been damaged in transit. ¡... - Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. Connect and operate the appliance only in accordance with the ▶ specifications on the rating plate. Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- ▶...
-
Page 6: Safe Use
en Safety Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. Check that there is a distance of at least 5 cm between the ap- ▶... - Page 7 Safety en Highly caustic alkaline or highly acidic cleaning agents in conjunc- tion with aluminium parts in the interior of the appliance may cause explosions. Never use highly caustic alkaline or highly acidic cleaning ▶ agents, in particular commercial or industrial products, in con- junction with aluminium parts (e.g.
-
Page 8: Damaged Appliance
en Safety 1.6 Damaged appliance WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. Never operate a damaged appliance. ▶ Never operate an appliance with a cracked or fractured surface. ▶ Never pull on the power cord to unplug the appliance. Always ▶... - Page 9 Safety en WARNING ‒ Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. With redundant appliances, unplug the power cord. Then cut ▶ through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close.
-
Page 10: Preventing Material Damage
en Preventing material damage Modified or damaged water hoses Preventing material damage 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing material damage 2.1 Safe installation Only use the water hoses supplied ▶... -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en So as not to scratch the finish on 3.3 autoOpen Dry ▶ the appliance, do not use sponges The appliance door opens automatic- with a rough surface or abrasive ally during the drying phase. This en- cleaning agents. -
Page 12: Installing And Connecting The Appliance
en Installation and connection Installation Instructions ¡ 4.3 Drainage connection Further information documents ¡ Connect your appliance to drainage Installation material ¡ connection so dirty water is dis- Steam protection ¡ charged via the wash cycle. Salt filling aid funnel ¡ Mains cable ¡... -
Page 13: Electrical Connection
Installation and connection en 4.5 Electrical connection Connecting the appliance to the electricity supply Notes Follow the Safety instructions ¡ → Page 4. Please note that the water safety ¡ system is only functional if there is a power supply. Insert the non-heating appliance plug of the power cable into the appliance. -
Page 14: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance Familiarising yourself with your appliance 5 Familiarising yourself with your appliance Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 52. - Page 15 Familiarising yourself with your appliance en Detergent dispenser Add detergent to the detergent dispenser. → "Detergent", Page 28 Bottom basket Bottom basket → Page 23 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 24 Lower spray arm The lower spray arm washes the table- ware in the bottom basket.
-
Page 16: Controls
en Familiarising yourself with your appliance 5.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. 3 4 5 6 ON/OFF button and reset Switching on the appliance button... - Page 17 Familiarising yourself with your appliance en button If you press for approx. 3 seconds, you can open the basic set- tings. → "Changing basic settings", Page 37 Remote Start → "Remote Start ", Page 39 Timer programming Setting timer programming → Page 33 Door handle Open the appliance door. Display The display shows information about the remaining running time or the ba-...
- Page 18 en Familiarising yourself with your appliance Symbol Description If you have started a pro- gramme, the symbol lights up on the display. If the water inflow or drainage malfunctions, the symbol lights up or flashes on the display. → "Troubleshooting", Page 44...
- Page 19 Programmes en Programmes 6 Programmes You can find an overview of the pro- ted. The running time will change if Programmes grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
-
Page 20: Information For Test Institutes
en Programmes Programme Programme se- quence Tableware: Time-optimised: Delicate tableware, cutlery, tem- Cleaning 45 °C ¡ ¡ Speed 45° perature-sensitive plastics and Intermediate rinse ¡ glasses Final rinse 55 °C ¡ Level of soiling: Lightly adhering fresh food rem- ¡ nants Use only if appliance is unloaded. Machine Care 70 °C Machine Care → "Favourite ", Page 20... -
Page 21: Features
Additional functions en Additional functions 7 Additional functions You can find an overview of the additional functions that can be selected here. Additional functions Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme. -
Page 22: Top Basket
en Features Raise or lower the basket evenly to 8.1 Top basket the right level. Arrange cups, glasses and small items of tableware in the top basket. Check that the basket is level on both sides. Release the levers. You can adjust the height of the top The basket clicks into position. -
Page 23: Bottom Basket
Features en 8.3 Bottom basket 8.4 Folding prongs Arrange pans and plates in the bot- Use the folding prongs to position tom basket. tableware securely, e.g. plates. Large plates up to a diameter of You can fold the prongs down to po- 31 cm can be arranged in the bottom sition pans, bowls and glasses basket as shown. -
Page 24: Cutlery Drawer
en Before using for the first time Add special salt. → Page 25 8.5 Cutlery drawer Add rinse aid. → Page 27 Arrange cutlery in the cutlery drawer. Switch on the appliance. → Page 33 Setting the water softening system. → Page 25 Set the amount of rinse aid to be dispensed. -
Page 25: Setting The Water Softening System
Water softening system en Water hardness Hardness range mmol/l Setting value °E 0 - 8 Soft 0 - 1.1 9 - 10 Soft 1.2 - 1.4 11 - 12 Medium 1.5 - 1.8 13 - 15 Medium 1.9 - 2.1 16 - 20 Medium 2.2 - 2.9 21 - 26... -
Page 26: Switching Off The Water Softening System
en Water softening system Note: Only use special salt for The water hardness is 0 - 8 °E. ¡ dishwashers. You do not need to use special Do not use salt tablets. salt. Do not use table salt. Press . Add the special salt to the dis- To open the basic settings, press penser. -
Page 27: Rinse Aid
Rinse aid system en Add rinse aid up to the max mark. Additional power consump- 0.05 tion in kWh The consumption values specified are laboratory measurements determ- ined in accordance with the currently applicable standard using the Eco 50° programme and with the factory value of the water hardness set to 16 - 20 °E. -
Page 28: Switching The Rinse Aid System Off
en Detergent To save the settings, press starch and remove protein. Oxygen- for 3 seconds. based bleaching agents are generally used to remove coloured marks, e.g. tea or ketchup. 11.3 Switching the rinse aid system off Note: Follow the manufacturer's in- structions for each detergent. If you find the rinse aid refill indicator Tip: Suitable detergents are available irritating, e.g. -
Page 29: Unsuitable Detergents
Detergent en With powder and liquid detergent the 12.3 Information on deter- dosage can be individually adjusted gents to the level of soiling of the table- ware. Follow the instructions on detergents For better washing and drying results in everyday use. and to avoid damage to the appli- Detergents marked as "organic"... - Page 30 en Tableware Add the detergent to the dry deter- Close the lid of the detergent dis- gent dispenser. penser. 50 ml 25 ml 15 ml If you are using tablets, one is The lid clicks into position. enough. Insert the tablets in a hori- The detergent dispenser will open zontal position.
-
Page 31: Tableware
Tableware en 13.1 Damage to glass and Cause Recommenda- tion tableware Highly caustic al- If you are using Only put glasses and china in the kaline or highly highly caustic al- dishwasher if it is marked as dish- acidic cleaning kaline or highly washer-safe by the manufacturer. - Page 32 en Tableware allowing steam to escape and water To save resources, do not pre- to leak out around the door. This rinse tableware under running wa- could damage your kitchen units. ter. Observe the following when arran- ging tableware: – Put heavily soiled tableware in the bottom basket, e.g.
-
Page 33: Removing Tableware
Basic operation en 13.3 Removing tableware 14.2 Setting a programme To adjust the washing programme to WARNING the soiling level of the tableware, se- Risk of injury! lect a suitable programme. Hot tableware can cause burns to the Press the right programme button. ▶... -
Page 34: Starting The Programme
en Basic operation 14.5 Starting the programme 14.7 Terminate programme Press To end a programme early or to ▶ switch from a programme that has The programme has ended when already started, you will need to can- the display shows "0h:00m". cel it first. Notes Open the appliance door. -
Page 35: Basic Settings
Basic settings en Basic settings 15 Basic settings You can configure the basic settings for your appliance to meet your needs. Basic settings 15.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Display text Selection Description Water hardness H00 - H07... - Page 36 en Basic settings Basic setting Display text Selection Description SideLight I00 - I01 While the programme is run- ning, a strip of light appears on the left-hand side of the appliance. If the appliance door is not completely closed, the strip of light will flash.
-
Page 37: Changing Basic Settings
Basic settings en Basic setting Display text Selection Description Wi-Fi Cn0 - Cn1 Switch the wireless network connection on or off. Level "Cn0" switches the wireless network connection off. This basic setting is not available until you have con- nected the appliance with the Home Connect app. -
Page 38: Home Connect Quick Start
en Home Connect Press repeatedly until 16.1 Home Connect quick the display shows the required set- start ting. Press repeatedly until the dis- Connect your appliance to a mobile play shows the right value. device quickly and easily. You can change several settings. Setting up the Home Connect app To save the settings, press Install the Home Connect app on for 3 seconds. -
Page 39: Remote Start
Cleaning and servicing en Security certificate of the Wi-Fi ¡ 16.2 Remote Start communication module (to ensure You can use the Home Connect app a secure data connection). to start the appliance with your mo- The current software and hardware ¡ bile device. version of your appliance. -
Page 40: Cleaning Products
Dishwasher Care and Ma- ance to malfunction. To avoid such chine Cleaner for Dishwashers online faults and reduce odours, we recom- at https://www.siemens-home.bsh- mend cleaning your appliance at reg- group.com/store or from customer ular intervals. service. -
Page 41: Filter System
Cleaning and servicing en not have a reminder function, we re- Once the programme has ended, commend performing Machine Care the indicator for Machine Care every 2 months. goes out. Running Machine Care 17.5 Filter system Notes The filter system removes coarse Run the Machine Care programme ¡... -
Page 42: Cleaning Spray Arms
en Cleaning and servicing Pull down the micro filter to re- Insert the filter system into the ap- move. pliance and turn the coarse filter clockwise. Make sure that the arrow mark- ‒ ings match up. Press the locking catches gether and lift the coarse filter out ... - Page 43 Cleaning and servicing en Pull up the lower spray arm to re- move. Check the outlet nozzles on the spray arms for blockages under running water and remove any for- eign bodies. Insert the lower spray arm. The spray arm clicks into position. Insert the upper spray arm and screw it firmly in place.
-
Page 44: Troubleshooting
This will avoid unneces- sary costs. Tip: You can find further information and explanations on troubleshooting on- line by scanning the QR code in the table of contents and on our website siemens-home.bsh-group.com. WARNING Risk of electric shock! Incorrect repairs are dangerous. - Page 45 Troubleshooting en Fault Cause and troubleshooting E:32-00 will light up Remove the filter from the supply hose alternately or indicator for water supply lights Clean the filter. Re-insert the filter in the supply hose. Screw the water connection back on. Check the water connection for leaks. Restore the power supply.
- Page 46 en Troubleshooting Fault Cause and troubleshooting E:61-03 will light up Not an appliance fault. Siphon connection is still alternately. Water is closed or the wastewater hose is kinked or blocked. not drained. Check the connection to the siphon and open if ne- cessary.
- Page 47 Troubleshooting en Fault Cause and troubleshooting All LEDs lit up or Electronics have detected a fault. flashing. Press the main switch button for approx. 4 seconds. The appliance is reset and restarted. If the problem occurs again: Switch off the appliance. ‒ Pull out the mains plug or switch off the fuse in ‒...
- Page 48 en Troubleshooting Fault Cause and troubleshooting Remnants of food on Filters are inserted incorrectly and/or not engaged. tableware. Insert the filters properly. → "Filter system", Page 41 Engage the filters. Washing programme selected too weak. Select a more intensive washing programme. ▶ → "Programmes", Page 19 Tableware has been precleaned too intensely.
- Page 49 Troubleshooting en Fault Cause and troubleshooting Rust spots on cutlery. Cutlery is not sufficiently rust-resistant. Knife blades are often more severely affected. Use rust-resistant tableware. ▶ Cutlery may also rust if washed together with rusting items. Do not wash rusting items. ▶...
-
Page 50: Clean Wastewater Pump
en Transportation, storage and disposal Insert the pump cover and press 18.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 51: Protect Appliance From Frost
Customer Service en 19.2 Protect appliance from 19.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 52: Product Number (E-Nr.), Production Number (Fd) And Consecutive Numbering (Z-Nr.)
en Customer Service Customer Service for a period of at 20.2 AQUA-STOP guarantee least 10 years from the date on In addition to warranty claims against which your appliance was placed on the seller under the purchase agree- the market within the European Eco- ment and in addition to our manufac- nomic Area. -
Page 53: Technical Specifications
Technical specifications en Technical specifications 21 Technical specifications Technical specifications Weight Max.: 60 kg Voltage 220 - 240 V, 50 Hz or 60 Hz Power rating 2000 - 2400 W Fuse 10 - 16 A Water pressure min. 50 kPa (0.5 bar) ¡ max. 1000 kPa (10 bar) ¡ Inlet rate Min. 10 l/min Water temperature Cold water. -
Page 54: Declaration Of Conformity
BSH Hausgeräte GmbH hereby de- Declaration of Conformity A detailed Declaration of Conformity clares that the appliance with Home can be found online at siemens- Connect functionality conforms to the home.bsh-group.com/uk/ among the essential requirements and other rel- additional documents on the product evant provisions of Directive page for your appliance. - Page 56 EN Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom BSH Hausgeräte GmbH Carl-Wery-Straße 34...
