Summary of Contents for Vikeri 4K

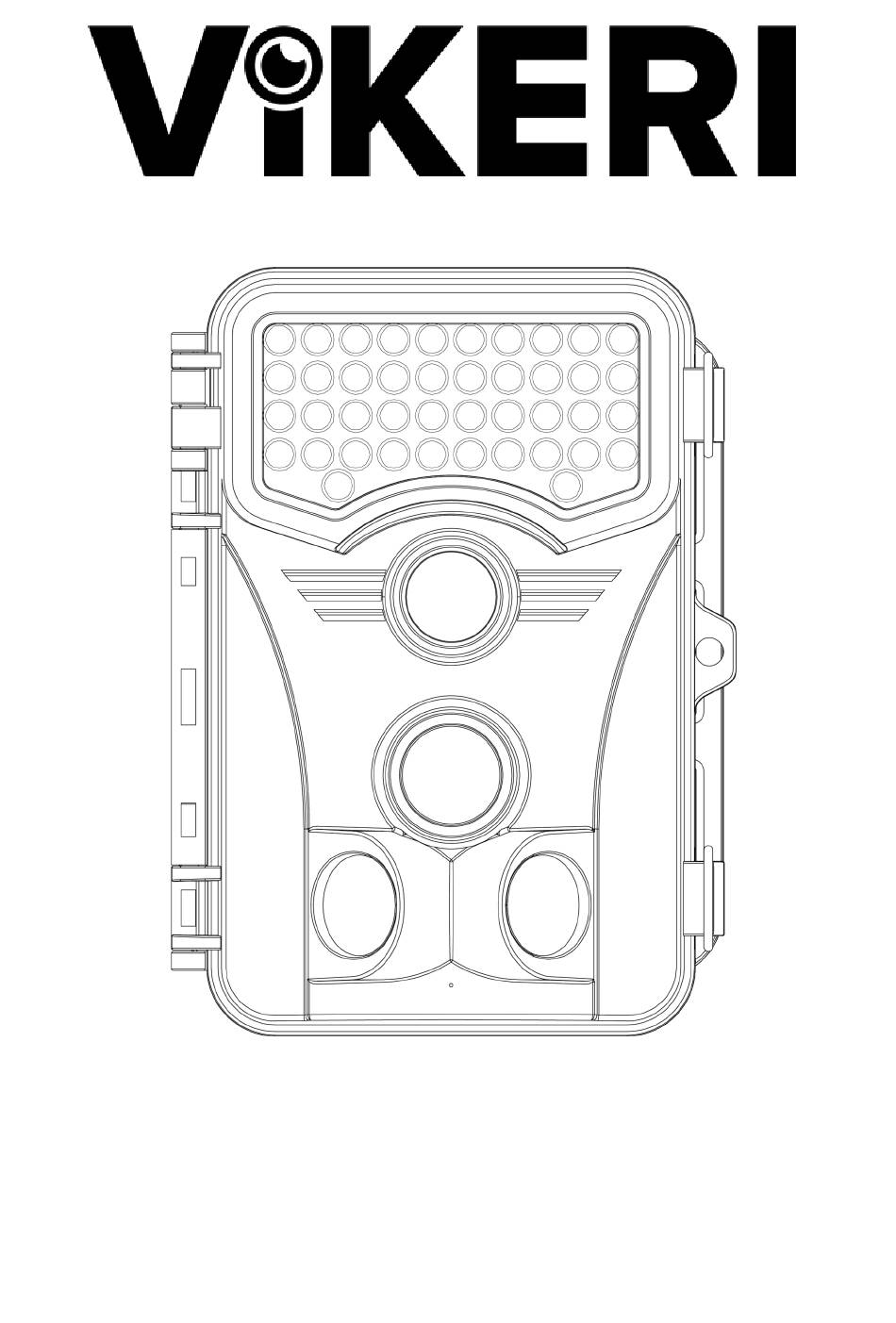

- Page 1 MODEL: 4K Instruction Manual...
- Page 2 WARRANTY AND SERVICE Authorized Service Centers for 4K Whether you use the 4K for hunting or wildlife monitoring or farm monitoring, a reliable camera repair service is key in ensuring that you continue to enjoy your photographing experience. If your 4K isn't performing as it should, making a strange noise, doing strange things, or if you're just unsure.
-
Page 3: Table Of Contents
PACKAGE CONTENTS ............2 PRODUCT DIAGRAM ............3 QUICK START GUIDE ............4 POWER SUPPLY ............... 11 CAMERA PARAMETER ............12 BUTTON FUNCTIONS .............13 SETTING FUNCTIONS .............14 OTHER FUNCTIONS ............18 INSTALLATION ..............20 IMPORTANT INSTRUCTION ......... 22 QUESTIONS&ANSWERS ..........23 WARRANTY AND SERVICE ........... 26... -
Page 4: Package Contents
③ ④ ⑤ ⑥ ⑦ 1x Vikeri 4K Trail Camera 4x AA battery 1x 32G SD Card ( Installed in card slot ) 1x Micro USB Cable 1x Stand Mount & Stand Support & 3x Bolts & Stoppers 1x Installation Belt... -
Page 5: Product Diagram

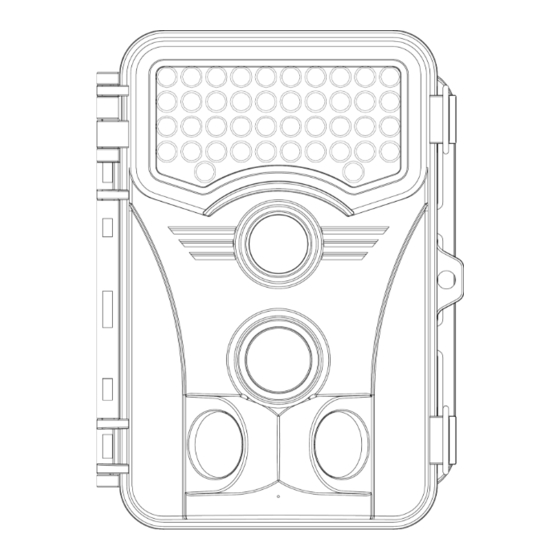

Contact us at support@vikeri.tech PRODUCT DIAGRAM 1.Infrared LEDs 2. Lens 3. PIR motion sensor 4. LCD screen 5. Up/Video Mode 6. Menu button 7. Left button 8. Replay button 9.Down/Photo Mode 10. SD card slot 11. USB slot 12. OFF/TEST/ON 13. -
Page 6: Quick Start Guide
"ON": 4K will flash blue light and countdown 15 seconds when you switch to this mode. It means that 4K is being prepared and will start work soon. 4K will turn off the blue light and screen when the... - Page 7 Place 4 alkaline AA batteries come with the camera into the slot. We have installed the 32 GB SD card into the memory card slot. Turn 4K on to test mode. (Power switch from left to mid, not right side)
- Page 8 Contact us at support@vikeri.tech Format SD card. (MENU→ Format memory card→ YES→ OK) Reset camera. (MENU→ Reset Settings→ YES→ OK) Switch to 20 MP photo pixels（MENU→Photo resolution→32MP）...
- Page 9 Contact us at support@vikeri.tech Switch to 1520P video pixels（MENU→Video resolution→4K Menu→ Mode → Video→ OK (This tutorial is only a tutorial for recording video in motion detection mode) Menu→ Video length→ 20S→ OK (Or other recording length you wish) Menu→ Shot lag → 10 S → OK (Explain this function of more detail later) Menu→...
- Page 10 Contact us at support@vikeri.tech Turn the power switch to "ON" mode. Move in front of 4K after the blue light turn off.(The position of the blue light is shown in the figure)
- Page 11 Contact us at support@vikeri.tech 4K will record a 20-second video when your movements are detected. Turn "ON" mode back to "TEST". Click on the "REPLAY" button to view the video you have just recorded.
- Page 12 Contact us at support@vikeri.tech Click on the "OK" button to play. Click "OK" to pause, "MENU" to stop when you’re playing video.
-
Page 13: Power Supply
Contact us at support@vikeri.tech POWER SUPPLY A. 1.5V AA alkaline battery This camera uses 4 or 8 AA 1.5V alkaline batteries. When using 4 batteries, put them all in the upper or lower part of the battery compartment. This camera is not compatible with 1.2V rechargeable batteries. -
Page 14: Camera Parameter
Contact us at support@vikeri.tech CAMERA PARAMETER Photo Resolution 5MP/ 8MP/ 12MP / 16MP / 20MP/ 32MP Video Resolution VGA / 720P / 1080P / 1520P/ 4K Detection Angle Up to 120 ° Fill Light LED Wavelength 940nm (No Glow) Fill Light LED Quantity... -
Page 15: Button Functions
Contact us at support@vikeri.tech BUTTON FUNCTIONS [MENU]: Press to open or close the setup menu / replay menu. In Replay mode (video): Stop video [REPLAY]: Press to preview photos and videos on the LCD screen. [↑] : Cursor moves to previous item. -
Page 16: Setting Functions
Photos (Default) : 4K only take photos, not record videos. Videos : 4K only record videos, not take photos. Photos & Videos : 4K will take a photo, record a video, take a photo, record a video, and so on. - Page 17 2 seconds (Min) | 30 seconds (Default) | 60 minutes (Max) [Sensitivity Motion Sensors]: Adjust the sensitivity of motion sensor. Low | Middle (Default) | High [Target Recording Time]: Want to set 4K to work in a certain period? Off (Default) ...
- Page 18 Note: It is recommended that you write your password on a sticky note when you set it. If you forgot the password . Turn off 4K at first. Press replay button and up button at the same time (Don't let go of your...
- Page 19 [Serial NO]: Give the current camera a 4-digit code name. This 4-digit number will be displayed on the left side of Photo Stamp. It usually used to distinguish which camera the photo was taken from. (If you have more than one 4K camera) Off (Default) →...
-
Page 20: Other Functions
Contact us at support@vikeri.tech downloaded by contacting customer service. OTHER FUNCTIONS [USB Boot]: When you find that the 4K does not turn on properly. Connect the USB Cable to the computer (do not connect the camera yet) Press and hold the "UP" button. - Page 21 In REPLAY mode, press MENU button to open the file menu. Select "Write protect". 4K will ask if you need to protect the current file or all files. Of course, unlock files are also in this menu. A key will be displayed in the status bar above the photo when you successfully protect a file, representing that the file is currently protected by the camera.
-
Page 22: Installation
Contact us at support@vikeri.tech INSTALLATION If you want to put the camera on the wall. 1. Mark the installation position with the help of the metal plate and make holes in the wall. 2. Put the green components in the holes. - Page 23 Contact us at support@vikeri.tech screws. If you want to put the camera on a tree. 1. Pass the Installation Belt through the support on the back of the camera. If the Belt is too long for the tree which you choose, there are 3 holes on each side the support, you could pass the Installation Belt through several holes to shorten the belt.
-
Page 24: Important Instruction
Contact us at support@vikeri.tech IMPORTANT INSTRUCTION ① The 4K uses a SD card (TF class 10) instead of a standard SD card. ② The 4K is compatible with SD cards up to 256GB. ③ Format the SD card when you find that the camera does not recognize the memory card properly. -
Page 25: Questions&Answers
Contact us at support@vikeri.tech QUESTIONS&ANSWERS 1. Q: Why can't I open videos taken by 4K on my Windows computer? A: Videos created by 4K may not be supported by Windows player. We recommend using VLC or Irfanview player. (Please abide by local laws and regulations, download genuine software) 2. - Page 26 Please check "Section" in SETTING FUNCTIONS. 8. Q: 4K does not work at night or does not record at the set length. A: If the battery is low (1/3 of a charge), Night Vision function will be turn off automatically.
- Page 27 15. Q: Why is there fog in my 4K, is it leaking? A: Because there is a space inside the camera, the air inside may liquefy when the temperature changes, resulting in water mist.
-
Page 28: Warranty And Service
WARRANTY AND SERVICE Authorized Service Centers for 4K Whether you use the 4K for hunting or wildlife monitoring or farm monitoring, a reliable camera repair service is key in ensuring that you continue to enjoy your photographing experience. If your 4K isn't performing as it should, making a strange noise, doing strange things, or if you're just unsure.
