Technical documentation
Last changed on: 2024-01-10

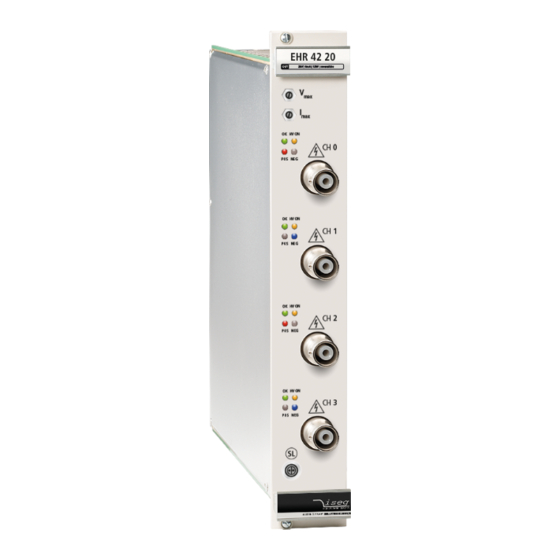

EHR Series
Versatile High Precision High Voltage Module with multiple Floating Options
4 channels
•
Electronically switchable polarity for each channel independently
•
2kV / 6 kV versions
•
High precision / very low ripple and noise
•
Second current measurement range 20 μA for high precision version
•
Voltage and current control per channel
•
Hardware voltage and current limits
•
programmable parameters (delayed trip etc.)
•
www.iseg-hv.com
Advertisement
Table of Contents
Related Manuals for iseg EHR Series
Summary of Contents for iseg EHR Series
- Page 1 Technical documentation Last changed on: 2024-01-10 EHR Series Versatile High Precision High Voltage Module with multiple Floating Options 4 channels • Electronically switchable polarity for each channel independently • 2kV / 6 kV versions • High precision / very low ripple and noise •...
-
Page 2: Document History
Copyright © 2024 by iseg Spezialelektronik GmbH / Germany. All Rights Reserved. This document is under copyright of iseg Spezialelektronik GmbH, Germany. It is forbidden to copy, extract parts, duplicate for any kind of publication without a written permission of iseg Spezialelektronik GmbH. This information has been prepared for assisting operation and maintenance personnel to enable efficient use. -
Page 3: Safety
Advice marked as “Caution!” describe actions to avoid possible damages to property. CAUTION! INFORMATION Advice marked as “Information” give important information. INFORMATION Read the manual. Important information. Attention high voltage! EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 3/26... -
Page 4: Intended Use
You may only put the product into operation after it has been established that the high-voltage device complies with the • country-specific regulations, safety regulations and standards of the application. The high-voltage power supply unit may only be installed by qualified personnel. • EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 4/26... -
Page 5: Important Safety Instructions
Do not operate the unit in an explosive atmosphere. WARNING! WARNING! Do not operate the unit if you suspect the unit or the connected equipment to be damaged. WARNING! EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 5/26... - Page 6 CAUTION! CAUTION! The devices must only be used in combination with iseg approved crates. CAUTION! INFORMATION Please check the compatibility with the devices used. INFORMATION EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 6/26...
-
Page 7: Table Of Contents
Front panel versions Dimensional Drawings Connectors assignments PIN assignments 10.1 Safety Loop socket 10.2 Single channel Inhibit Order guides Appendix Glossary Warranty & service Disposal Manufacturer contact EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 7/26... -
Page 8: General Description
2kV, 3mA up to 4kV and 2mA up to 6kV. Alternatively the EHR can be equipped with cost efficient 2kV/6mA channels. Several EHR modules can be daisy-chained by CAN and controlled for example by iseg iCS system. The hardware is made of best components such as 24 bit ADC and 20 bit DAC. -
Page 9: Technical Data
/s | opt. up to 0.75 • V Module status green LED turns on if the channel has the status “Ready” yellow LED turns on if the channel has the status “HV ON” EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 9/26... - Page 10 1) – The resolution of measurable values depends on the settings of the sampling rate and the digital filter! 2) – Factory Settings 3) – not available with Option L Table 2: technical data: Specification EHR EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 10/26...
-
Page 11: Configuration
LOWER OUTPUT CURRENT L (I = 100 μA) EHR 4260 L − Notes: - Requires EHR “High Precision” Series Table 4: Technical data: Options and order information EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 11/26... -
Page 12: Overview
9 Connectors assignments INHIBIT Single Channel inhibit 5.5 Single Channel Inhibit CFG-CG / SL disable Jumper 5.1 Connection Notes: 1) – optionaly Table 5: description overview EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 12/26... -
Page 13: Handling
The delivery condition is shown on the modules type plate (side plate of the module). Typically newer iseg crate controllers (CC24, CC23, CC238) are delivered with 250kBits/s standard. Wiener INFORMATION M-POD Controller and older iseg hardware is set on 125 kBit/s standard bitrate. -
Page 14: Channel And Leds
The channel is switched off and can be turned on. illuminated illuminated The channel is turned on and there is output voltage at the channel. flashing The channel is ramping up or down Table 6 EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 14/26... -
Page 15: Hardware Limit
The loop can be activated by removing the internal jumper. The jumper can be accessed via a ventilation slot on the bottom of the module, see Figure 3: section of back view EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 15/26... -
Page 16: Single Channel Inhibit
Shut down all channels without ramp • When the INHIBIT is no longer active, the Inhibit flag must be reset before the voltage can be switched on again. EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 16/26... -
Page 17: Current Limitation
> 20 µA to a value < 20 µA or vice versa. If it is intended to switch the current measurement range, the channel must be switched off or “KillEnable” must be deactivated for altering the current set value. EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 17/26... -
Page 18: Delayed Trip
To guarantee a sufficient resolution for the current set values, a nominal current adequate to the application should be selected. iseg offers HV modules with nominal currents reduced to 100 μA in all voltage classes. These are designated e.g. for semiconductor detectors, which only require a few microampere operating current. -
Page 19: Front Panel Versions
7 Front panel versions FRONT PANELS Channels Floating FG / CFG HV Connector Options INHIBIT Figure Notes: CFG: Common Floating Ground Floating Ground Table 7: front view EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 19/26... -
Page 20: Dimensional Drawings
8 Dimensional Drawings Figure 6: EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 20/26... -
Page 21: Connectors Assignments
Z592312 Figure 9 Table 8 CAUTION! Only use genuine iseg parts like power cables, CAN cables and terminators for stable and safe operation. CAUTION! EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 21/26... -
Page 22: Pin Assignments
10.2 Single channel Inhibit NAME DESCRIPTION Ground Inhibit 0 Inhibit channel 0 Inhibit 1 Inhibit channel 1 Inhibit 2 Inhibit channel 2 Inhibit 3 Inhibit channel 3 Table 10 EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 22/26... -
Page 23: Order Guides
HV cable shielded 30kV (HTV-30S-22-2) open S08_C04-LLL Notes: Length building examples: 10cm ➜ 0.1, 2.5m ➜ 2.5, 12m ➜ 012, 999m ➜ 999 Table 12: Guideline for cable ordering EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 23/26... -
Page 24: Appendix
Archives http://download.iseg-hv.com/SYSTEMS/MMS/EHR/archive CAN EDCP Programmers-Guide http://download.iseg-hv.com/SYSTEMS/MMS/CAN_EDCP_Programmers-Guide.pdf iseg Hardware Abstraction Layer http://download.iseg-hv.com/SYSTEMS/MMS/isegHardwareAbstractionLayer.pdf Cables and connectors https://iseg-hv.com/download/ACCESSORIES/Adapters%20and%20Cables/iseg_Cables%20and%20Connectors_en.pdf Manufacturers website (connectors) LEMO ELEKTRONIK GMBH https://www.lemo.com/ Radiall GmbH https://www.radiall.com/ EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 24/26... -
Page 25: Glossary
I bounds bounds nominal output power input power nominal input power in_nom temperature reference temperature HV ON HV OFF channel(s) high voltage low voltage signal ground EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 25/26... -
Page 26: Warranty & Service
16 Manufacturer contact iseg Spezialelektronik GmbH Bautzner Landstr. 23 01454 Radeberg / OT Rossendorf GERMANY FON: +49 351 26996-0 | FAX: +49 351 26996-21 www.iseg-hv.com info@iseg-hv.de sales@iseg-hv.de EHR High Voltage Power Supply series | Last changed on: 2024-01-10 | www.iseg-hv.com 26/26...
