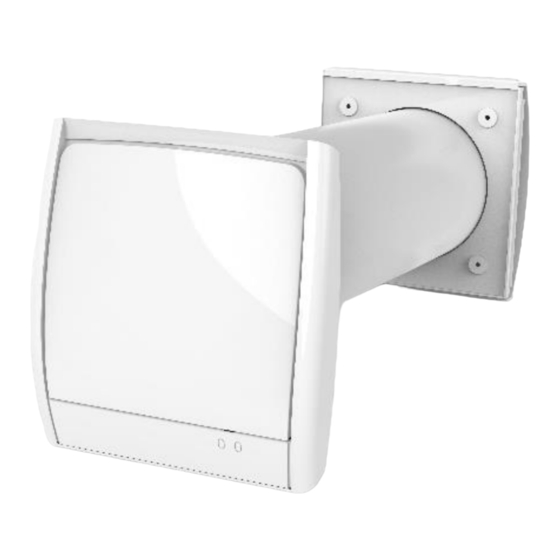

- Page 1 HIGH EFFICIENCY SINGLE-ROOM HEAT RECOVERY UNIT WITH REMOTE KERS 50 EVO - KERS 25 EVO USER AND INSTALLER MANUAL ENGLISH...
- Page 2 KERS 50 Evo e KERS 25 Evo – user and installer manual - ENGLISH FOREWORD This manual indicates the intended use of the unit and provides instructions for transporting, installing, mounting, adjusting, and operating the unit. Provides information for maintenance interventions, spare parts ordering, residual risks and staff training.
-
Page 3: Service Standards
KERS 50 Evo e KERS 25 Evo – user and installer manual - lack of periodic and constant maintenance interventions or use of non-original spare parts. In any case, if the user attributes the accident to a defect of the unit, he must demonstrate that the damage occurred was a main and direct consequence of this "defect". - Page 4 KERS 50 Evo e KERS 25 Evo – user and installer manual - Constant and careful preventive maintenance always guarantees the high operational safety of the unit. Never postpone necessary repairs and have them carried out only and exclusively by specialized personnel, using only original spare parts;...
-
Page 5: Product Description
KERS 50 Evo e KERS 25 Evo – user and installer manual Check the unit carefully by following the list of operations in this manual. Safety plates General alarm Electrical voltage Burn hazard Moving parts Cutting injuries PRODUCT DESCRIPTION KERS recuperators are designed to ventilate apartments, hotels, bars and any other civil, residential and commercial environment in a controlled manner. -
Page 6: Operational Limits
KERS 50 Evo e KERS 25 Evo – user and installer manual - Step 1 - stale warm air is extracted from the room. As it flows through the ceramic heat exchanger, it warms it up. It thus transfers up to 97% of the heat energy. In about 65 seconds the exchanger is heated and the unit switches to phase 2. -
Page 7: Wiring Diagrams
KERS 50 Evo e KERS 25 Evo – user and installer manual The fans, equipped with energy-efficient, reversible EC motors, are extremely quiet. 14.3 WIRING DIAGRAMS The unit is built to operate on 230V/50Hz single-phase AC. Use copper cables with a cross-section of between 0.5 mm² and 0.75 mm² for the power supply to the unit. Insert upstream a circuit breaker with a passage current higher than that required by a device (see technical data table). -
Page 8: Remote Control
KERS 50 Evo e KERS 25 Evo – user and installer manual - MASTER (Input - Output) SLAVE (Extraction - Input) SLAVE (Input - Output) The first KERS Evo (master) unit controls all others. The units must be set up so that injections and extractions are not simultaneous, so as not to put the environment under pressure or depression. - Page 9 KERS 50 Evo e KERS 25 Evo – user and installer manual General Setup: The remote control is powered by two CR2032 type batteries, easily accessible on the back of the remote. The remote control will automatically lock if not used for one minute. When locked, a key symbol appears on the display in the upper right corner.
- Page 10 KERS 50 Evo e KERS 25 Evo – user and installer manual - Figure on display Selectable Min/Med/Max Min/Med/Max Min/Med/Max Min/Med/Max speed Some Kers are in Some Kers are in All Kers are All Kers are in supply Air Flow...
-
Page 11: Troubleshooting
KERS 50 Evo e KERS 25 Evo – user and installer manual AFTER SALE 16.2 TROUBLESHOOTING The following pages list the most common causes that can cause the unit to block, or at least to malfunction. The breakdown is made on the basis of easily identifiable symptoms. -
Page 12: Installation
KERS 50 Evo e KERS 25 Evo – user and installer manual - Extraction of ceramic exchanger and filters Slightly rotate the guard grille counterclockwise to release the exchanger. Pull out the body of the appliance using the supplied cord. Remove the filters from the body. - Page 13 KERS 50 Evo e KERS 25 Evo – user and installer manual LIFTING AND TRANSPORTING When unloading and positioning the unit, extreme care must be taken to avoid sudden or violent maneuvers. Internal transport must be carried out with care and delicacy, avoiding using machine components as strengths.
-
Page 14: Wall Mounting
KERS 50 Evo e KERS 25 Evo – user and installer manual - Central body 18.4 WALL MOUNTING Hole preparation Prepare a through hole in the wall with diametric minimum 162 mm for Kers Evo 50 or 102 for Kers Evo 25, inclined outwards with a slope between 2°... - Page 15 KERS 50 Evo e KERS 25 Evo – user and installer manual Outdoor grille and grille cover installation Remove the grill cover from the grill by pulling it toward you. Drill 4 holes at least 40 mm deep on the outside. For locations use directly the part of the grid that is adhered to the wall.
- Page 16 KERS 50 Evo e KERS 25 Evo – user and installer manual - 18.5 FIRST START-UP Set switch on machine to ON position If the unit is installed alone, control one of the three speeds with the buttons on the remote control.
-
Page 17: Warranty Conditions
1999/44/EC regulation and of the D. Leg. no. 24 of 2 February 2002. The warranty is limited to the products provided by Ideal Clima and only to the customer. Ideal Clima reserves the right to apply their own... - Page 18 KERS 50 Evo e KERS 25 Evo – user and installer manual - NOTE Pag. 38 di 40...
- Page 19 KERS 50 Evo e KERS 25 Evo – user and installer manual Pag. 39 di 40...
- Page 20 IDEAL CLIMA s.r.l. Via Magnolini 8 - 25135 BRESCIA - Italy Tel. +39.030.35.45.319 - Fax +39.030.51.09.329 info@idealclima.eu - www.idealclima.eu Version: 4.0 - June 2022...
