Summary of Contents for BE Ag & Industrial BE-QH1GI

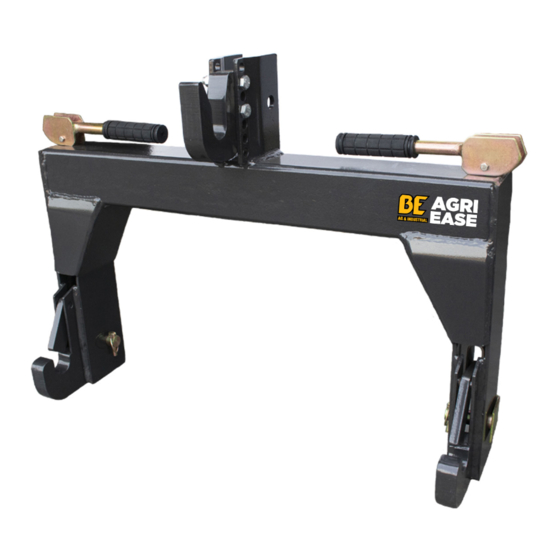

- Page 1 QUICK HITCH BE-QH1GI OPERATIONS & PARTS MANUAL FOR MODELS: • BE-QH1GI PURCHASE DATE MODEL NO. SERIAL NUMBER DEALER...
- Page 3 SAFETY WARNINGS AND PRECAUTIONS WARNING: When using tool, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Read all instructions before using this tool! 1. Keep work area clean. Cluttered areas invite injuries. 2.
- Page 4 Top Bracket Top Hook Latch Handle Latch Handle Lynch Pin (3) Locking Clip (4) Lower Hook Lynch Pin (3) Lower Hook INSTALLATION Note: It is recommended that 2 people assist in the setting up of this product. 1. Fasten the Quick Hitch to the tractor’s lift arms using the solid Link Pins (not provided) with a flat bracket on one end and Lynch Pins (3).
- Page 5 INSTALLATION & MOUNTING MOUNTING NON-ASAE IMPLEMENTS If the implement is not of ASAE specifications, use an Adapter Bracket (not provided) to mount it to the Quick Hitch as illustrated below. 1. Remove the Top Hook by taking out the two Hex bolts (2), Lock Washers (6), and Nut (7). Save hardware. 2.
- Page 6 MAINTENANCE 1. Clean dirt and debris off the Quick Hitch after each use. 2. Store in a clean and dry location. 3. Periodically lubricate all moving parts. 4. After each use check for damaged or overly worn parts. Never use the Quick Hitch or attached implement if damaged or worn parts are noted.
- Page 7 BE-QH1G USER MANUAL...
- Page 8 B RA B E R EQ .CO M WGSALES@BRABEREQ.COM PHONE: 604-850-7770 FAX: 604-850-7774 TOLL FREE PHONE: 1-877-588-3311 TOLL FREE FAX: 1-800-665-7334 BE-QH1G USER MANUAL...
