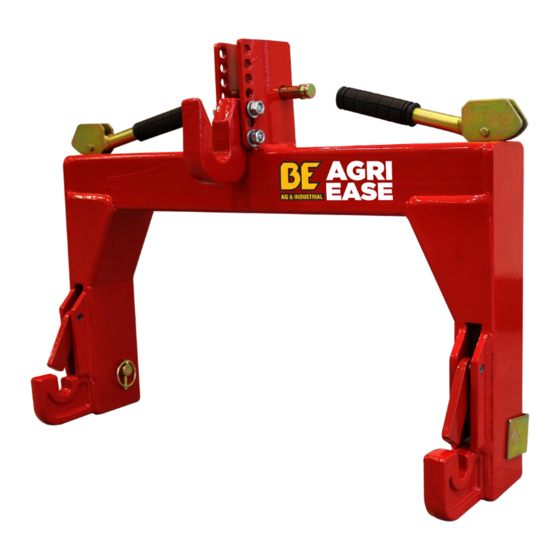

- Page 1 QUICK HITCH BE-QH1N OPERATIONS & PARTS MANUAL FOR MODELS: • BE-QH1N PURCHASE DATE MODEL NO. SERIAL NUMBER DEALER...
- Page 3 The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. BE-QH1N USER MANUAL...
- Page 4 Note: If the tractor has stabilizer arms, they will not fit into the Quick Hitch mounting area along with the lift arms. For this reason, use stabilizer chains, or some other common longer Mounting Pin (not provided) to fasten the Quick Hitch to the tractor. BE-QH1N USER MANUAL...
- Page 5 Pin (not provided). For most implements, the front hole (closest to implement) is recommended for the best vertical alignment. 3. Attach the implement to the Adapter Bracket tab with a Link Pin (not provided) 4. Check that all connections are tight before starting the work task BE-QH1N USER MANUAL...
- Page 6 4. After each use check for damaged or overly worn parts. Never use the Quick Hitch or attached implement if damaged or worn parts are noted. QUICK HITCH PARTS LIST REF DESCRIPTION Main Frame Weldment Bolt - M12x65 Lynch Pin Hair Pin Hook Nut - M12 Lock Washer 12 Top Link Pin BE-QH1N USER MANUAL...
- Page 7 BE-QH1N USER MANUAL...
- Page 8 B RA B E R EQ .CO M WGSALES@BRABEREQ.COM PHONE: 604-850-7770 FAX: 604-850-7774 TOLL FREE PHONE: 1-877-588-3311 TOLL FREE FAX: 1-800-665-7334 BE-QH1N USER MANUAL...
