Summary of Contents for Newfeellight NF-260

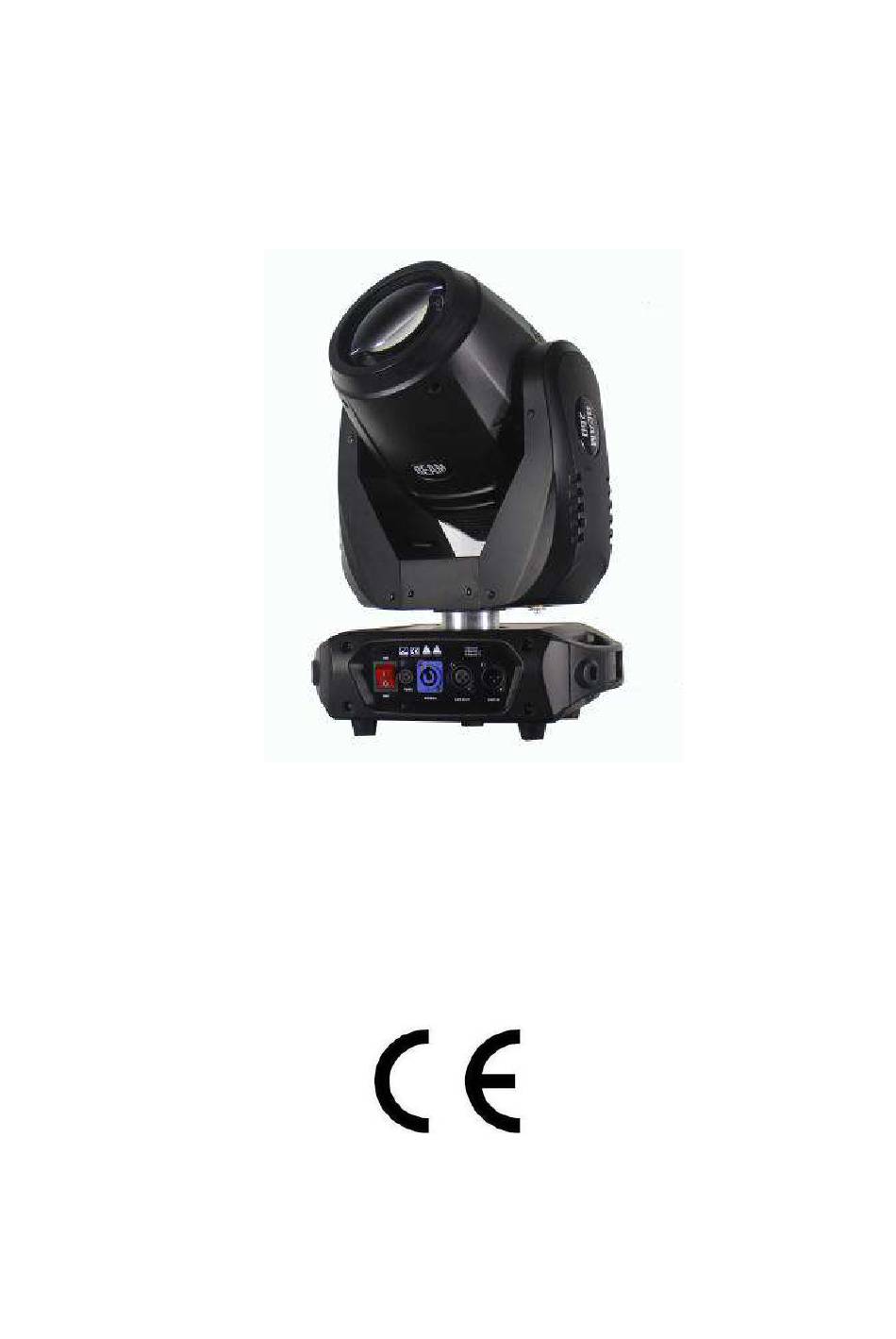

- Page 1 260W Moving Head Beam USER MANUAL KEEP THIS MANUAL FOR FUTURE NEEDS...
- Page 2 Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install, operate, and maintain the lighting safety correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.
-
Page 3: Mounting And Installation
Please check carefully that there is no damage caused by transportation. Should there be any, please consult your dealer and don’t install this device. 2 Mounting and installation 2.1 Cautions: for added protection mount the fixtures in areas outside walking paths ,seating areas,or in areas were the fixture might be reached by unauthorized personnel. - Page 4 material being used ,and periodic safety inspection of all installation material and the fixture. If you lack these qualifications , Do not attempt the installation yourself ,improper installation can result in bodily injury. Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet.
- Page 5 2.4 DMX-512 control connection Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking.
-
Page 6: Technical Parameters
3 TECHNICAL PARAMETERS POWER SUPPLIE Input power:AC100-240V 50/60 Hz Power consumption :330W Lamp:260W bulb DMX channel:18 channels Color temperature ：6700K Pan scan：540°(16bit) Electric correction Tilt scan：270° (16bit) Electric correction Color wheel: one color wheel, 13 kinds of color chips in one color wheel Static Gobo: 13gobos+open Effect Wheel: two Effect prism,one Rotation 16- prism,one Rotation 48- prism effect move ，Bi-directional rotation... -
Page 7: Menu Function
4 :MENU FUNCTION Option Illustrate Operation mode Slave condition ： receive DMX signal from controller or main engine Auto run random Voice control DMX address 1~512 press“confirm”key to enter redact condition。 press“confirm”key to enter redact status。This moment pitch on hundreds place， press“up”“down”key change channels... -
Page 8: Dmx Channels
Channel mode Norm 18CH Norm 18 channel mode X inversion close open Y inversion close open XY exchange close open Exchange XY axial channel（including fine tuning） XY encoder open use encoder to judge step out and self-correcting the setting close Do not use encoder to correct the setting DMX signal keep... - Page 9 40-44 COLOUR8 45-49 COLOUR9 50-54 COLOUR10 55-59 COLOUR11 60-64 COLOUR12 65-69 COLOUR13 70-74 WHITE+COLOUR1 75-79 COLOUR1 + COLOUR2 80-84 COLOUR2 + COLOUR3 85-89 COLOUR3 + COLOUR4 90-94 COLOUR4+ COLOUR5 95-99 COLOUR5+ COLOUR6 100-104 COLOUR6 + COLOUR7 105-109 COLOUR7+ COLOUR8 110-114 COLOUR8 + COLOUR9 115-119 COLOUR9 + COLOUR10...
- Page 10 196-200 GOBO 2 SHAKE, SLOW to FAST 201-205 GOBO 3 SHAKE, SLOW to FAST 206-210 GOBO 4 SHAKE, SLOW to FAST 211-215 GOBO 5 SHAKE, SLOW to FAST 216-220 GOBO 6 SHAKE, SLOW to FAST 221-225 GOBO 7 SHAKE, SLOW to FAST 226-230 GOBO 8 SHAKE, SLOW to FAST 231-235...
