Sensor

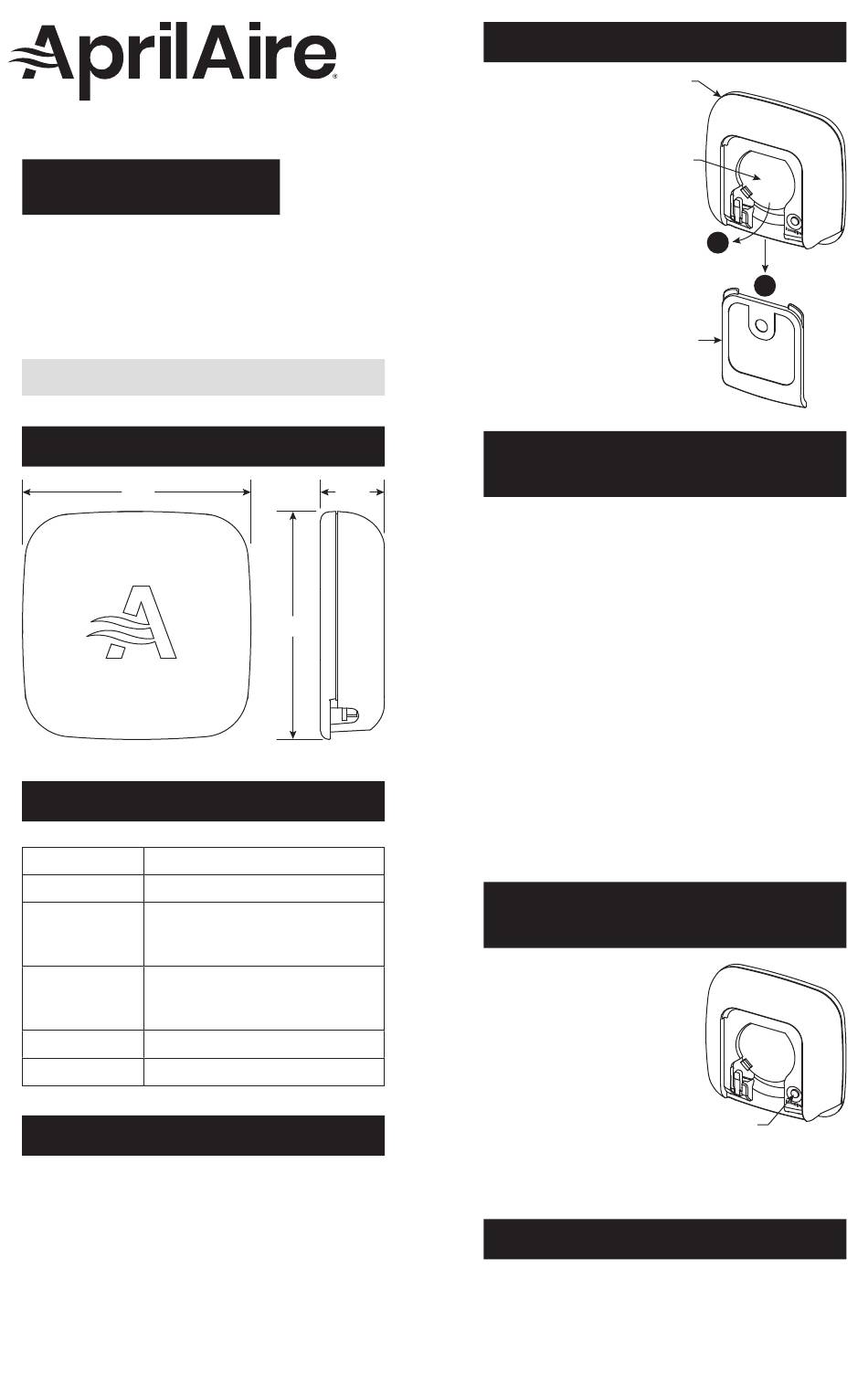

INSTALLATION AND
OPERATOR'S MANUAL
Model Z10IDT
Wireless Indoor Temperature
and Humidity Sensor
READ AND SAVE THESE INSTRUCTIONS
DIMENSIONS
1.79"
SPECIFICATIONS
Communications
2.4 MHz
Wireless range
35 feet
Accuracy: ±2°F (40°F to 105°F), ±5°F
Temperature
outside of this range
measurement
range/accuracy
Range: -40°F to 125°F
Accuracy: ±5% RH between 20% and
Humidity
80% RH
measurement
range/accuracy
Range: 0.5% to 99.5% RH
Battery life
Approximately 1 year
Battery type
Lithium CR2032 type
FEATURES
WHEN USED WITH APRILAIRE MODEL S86WMUPR
THERMOSTAT:
• Sensor controlled scheduling – heat/cool calls can
be controlled by averaging inputs from all sensors, or
control a scheduled event with a specific individual
sensor input.
• Pair up to 8 indoor temperature sensors with your
AprilAire thermostat.
0.53"
1.79"
90-2709
BATTERY REPLACEMENT
SENSOR
1. Slide the backing
plate down to
remove from
sensor.
2. Remove battery.
BATTERY
3. Replace battery
with lithium
CR2032 type.
4. Replace backing
plate on sensor.
BACKING
PLATE
MOUNTING THE WIRELESS
INDOOR SENSOR
NOTE: Pair sensor with Wi-Fi thermostat before mounting.
The sensor should be mounted:
• On an interior wall, in a frequently occupied space.
• Within 35 feet of thermostat.
• Approximately 5 feet above the floor.
• At least 18" from the outside wall.
Do not mount the sensor:
• Behind doors, in corners or other dead air spaces.
• In direct sunlight, near lighting fixtures, or other
appliances that give off heat.
• On an outside or unconditioned area wall.
• In the flow of a supply register, in stairwells, or near
outside doors.
• On a wall with concealed pipes or ductwork.
PAIRING THE SENSOR TO THE
S86WMUPR THERMOSTAT
1. On the thermostat, navigate
to wireless sensor settings:
Menu > Settings > Installer
Settings (press and hold
UP and DOWN 5 seconds)
> Wireless Sensors > Add.
2. On the sensor, press and
hold the pairing button 5
seconds (the red indicator
on the front of the sensor
will start flashing).
3. On the thermostat, select Continue and wait for the
pairing process to complete.
LOW BATTERY DISPLAY
When the battery gets below 30% life left the sensor will
flash the LED once every 10 seconds. The connected/
paired device will display sensor low battery screen
(see your thermostat or connected device manual).
2
90-2706
1
PAIRING
BUTTON
90-2706
