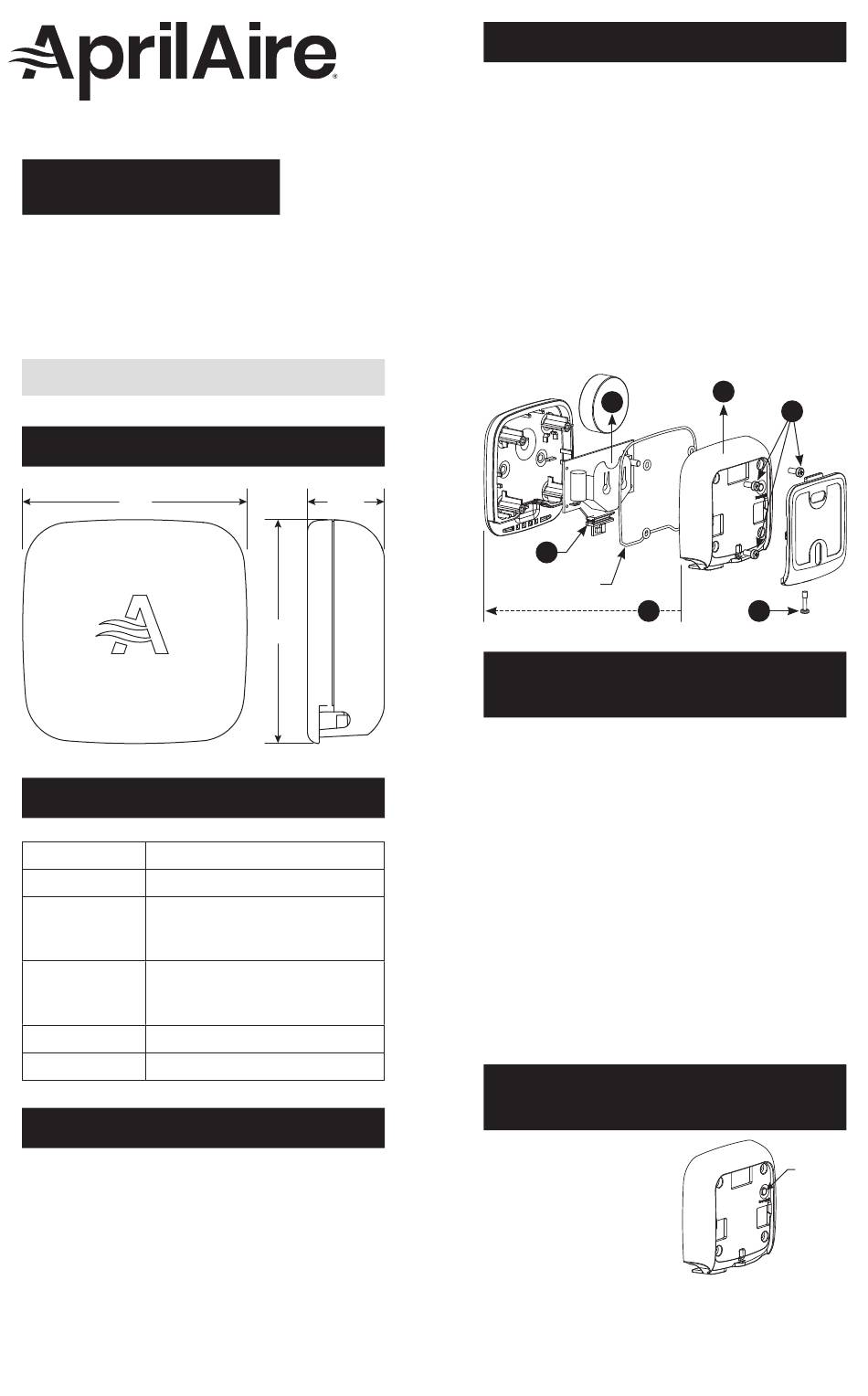

INSTALLATION AND
OPERATOR'S MANUAL
Model Z10ODT
Wireless Outdoor Temperature
and Humidity Sensor
READ AND SAVE THESE INSTRUCTIONS
DIMENSIONS
2.16"
SPECIFICATIONS
Communications 2.4 MHz
Wireless range
35 feet
Accuracy: ±2°F (40°F to 105°F), ±5°F
Temperature
outside of this range
measurement
range/accuracy
Range: -40°F to 125°F
Accuracy: ±5% RH between 20% and
Humidity
80% RH
measurement
range/accuracy
Range: 0.5% to 99.5% RH
Battery life Approximately 2 years
Battery type
Lithium CR2477 type
FEATURES
WHEN USED WITH A THERMOSTAT, THE WIRELESS
OUTDOOR SENSOR CAN BE USED TO:
• More efficiently control an air source heat pump with
balance points.
• Enable automatic humidification.
• Enable ventilation lockouts.
• Display of outdoor temperature.
0.74"
2.16"
90-2710
BATTERY REPLACEMENT
1. Remove screw at the bottom of the backing plate.
2. Remove sensor from backing plate.
3. Remove 4 screws from back.
4. Carefully separate front and back of sensor case.
Be careful to not damage or lose the rubber gaskets
(4 round screws gaskets, 1 large gasket).
5. Remove green circuit board.
6. Slide battery out of clip.
7. Replace battery with lithium CR2477 type.
8. Replace cover making sure all 5 gaskets and the
button cover are in place.
9. Replace sensor on backing plate.
10. Replace bottom screw to secure sensor to mounting
bracket.
6
5
RUBBER GASKETS
4
MOUNTING THE WIRELESS
OUTDOOR SENSOR
NOTE: Pair sensor with Wi-Fi thermostat before mounting.
The sensor should be mounted:
• Within 35 feet of the thermostat.
• Away from large metal obstructions that could reduce
wireless communication range.
• Away from direct rainfall (the unit is water resistant not
water proof).
• On a vertical exterior wall, at least 6 inches below any
overhang.
• Protected from direct sunlight (north side
recommended).
• At least 3 feet away from exhaust vents and
condensing lines.
• Above the snow line.
• Accessible for easy battery replacement.
PAIRING THE SENSOR TO THE
S86WMUPR THERMOSTAT
1. On the thermostat,
navigate to wireless
sensor settings:
Menu > Settings >
Installer Settings (press
and hold UP and DOWN
5 seconds) > Wireless
Sensors > Add.
2. On the sensor, press and hold the pairing button
5 seconds (the red indicator on the front of the
sensor will start flashing).
3. On the thermostat, select Continue and wait for the
pairing process to complete.
2
3
1
90-2695
PAIRING
BUTTON
