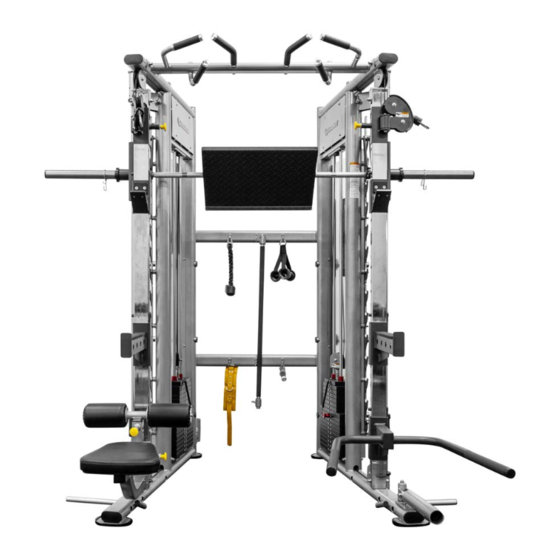

BODYKORE MX1162 Owner's Manual
  1. Manuals
  2. Brands
  3. BODYKORE Manuals
  4. Fitness Equipment
  5. MX1162
  6. Owner's manual

BODYKORE MX1162 Owner's Manual

Universal trainer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL - MX1162
Owner's Manual
Universal
Trainer
MX1162
Scan Here For
Installation Video:
Language:
English
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX1162 and is the answer not in the manual?

Questions and answers

Related Manuals for BODYKORE MX1162

Summary of Contents for BODYKORE MX1162

  • Page 1 Owner’s Manual Universal Trainer MX1162 Scan Here For Installation Video: Language: English OWNER’S MANUAL - MX1162...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction 2. Important Safety Guidelines for Owners 3. MX1162 Components 4. Assembly Instructions 5. Assembly Guide 6. Daily Inspection 7. Weekly Inspection 8. Monthly Inspection 9. Warranty OWNER’S MANUAL - MX1162...

  • Page 3: Introduction

    1. Introduction This user manual is specific to your MX1162. This user manual contains important assembly, maintenance, and warranty information, which you should keep for reference. You should also read the entire Owner’s Manual, because it has additional important general information and instructions which you should follow.

  • Page 4: Important Safety Guidelines For Owners

    Whenever a weight can drop and hit a user, such as with an Olympic bench, We highly recommends that a helper or spotter be used. Do not place the equipment outdoors or on wet surfaces. OWNER’S MANUAL - MX1162...

  • Page 5: Mx1162 Components

    Dual Pulley System J Hooks Attachment Safety Spotter Attachment Inverted Leg Press Plate Attachment Dip Bar Attachment Smith Machine Land Mine Lat Pull-Down Seat Band Pegs Olympic Plate Storage Bar Storage Sliding Pulley Arms Number Column Accessories Hooks OWNER’S MANUAL - MX1162...

  • Page 6: Assembly Instructions

    4. Assembly Instructions Assembly of the MX1162 takes about 120 minutes to complete. If this is the first time you have assembled this type of equipment, plan on allowing more time. Be careful to open boxes and assemble components in the sequence presented in this manual.

  • Page 7: Assembly Guide

    5. Assembly Guide Step 1 Connect both towers with crossbeams. (M10x25 bolts) Step 2 Connect Pull Up Bar to both towers. (M10x25 bolts) • Tighten bolts using tools. Step 3 Put Pulley arms onto number column. OWNER’S MANUAL - MX1162...
  • Page 8 Put column onto frame. (M10x110 bolts on top, M10x25 bolts on the bottom.) Step 5 Attach cable onto pulley. (Pulley wheel needs to be removed for this.) Step 6 Install weight stacks. • Remove guide rod mount. OWNER’S MANUAL - MX1162...
  • Page 9 Step 6 Continued • Put guide rods in plate. (bumpers on bottom) • Insert plates. 10x 15lb plates ◉ 6x 10lb plates ◉ • Insert pull pin and place pin ring around top pin of weight stack OWNER’S MANUAL - MX1162...
  • Page 10 Secure guide rod mount back on top plate. Step 7 Connect smith machine bar • Hook bar into place • Insert bar ends (flat side should be facing sleeve) • Line up plate to bearing casing. (M10X35 bolts) OWNER’S MANUAL - MX1162...
  • Page 11 5. Assembly Guide Step 7 Continued • Connect counter balanced cable. Step 8 Add on attachments • Storage weight horns. • Land mine (M10x25 bolts) OWNER’S MANUAL - MX1162...
  • Page 12 5. Assembly Guide Step 8 Continued • Bar holder (M10x25 bolts) • Lat pulldown seat OWNER’S MANUAL - MX1162...

  • Page 13: Daily Inspection

    For chrome parts, use a commercial chrome cleaner to restore and maintain the luster. As you clean, inspect the frames for cracks, rust, or other damage. Make sure welds are solid and fasteners are properly secured. OWNER’S MANUAL - MX1162...

  • Page 14: Weekly Inspection

    Check cable rod ends to ensure the shoulder bolt is secure. If cable rod ends are noisy, you can lubricate them with a silicone spray lubricant. Spray the lubricant onto the joint where the spherical portion is enclosed in the outer housing. Wipe off any excess lubricant with a rag. OWNER’S MANUAL - MX1162...
  • Page 15 IMPORTANT: Do not use petroleum-based lubricants or motor oil. These lubricants tend to cause a rapid buildup of dirt and hair on the weight plates, which can cause the plates to stick together. OWNER’S MANUAL - MX1162...

  • Page 16: Monthly Inspection

    For removing heavier dirt and grease and for polishing, use a good car polish. For scuffs and marks that are not removed by the above methods, use a soft scrub cleanser. Do not use solvents, lacquer thinner, acetone, or finger nail polish remover. OWNER’S MANUAL - MX1162...

  • Page 17: Warranty

    (30) calendar days after date of discovery of any defects. Warranty claims can be submitted to warranty@bodykore.com. Defected product must be available for visual inspection by BodyKore or BodyKore dealer with proof of the original serial number that is on the original packaging.
