Summary of Contents for jbc PHXLEK

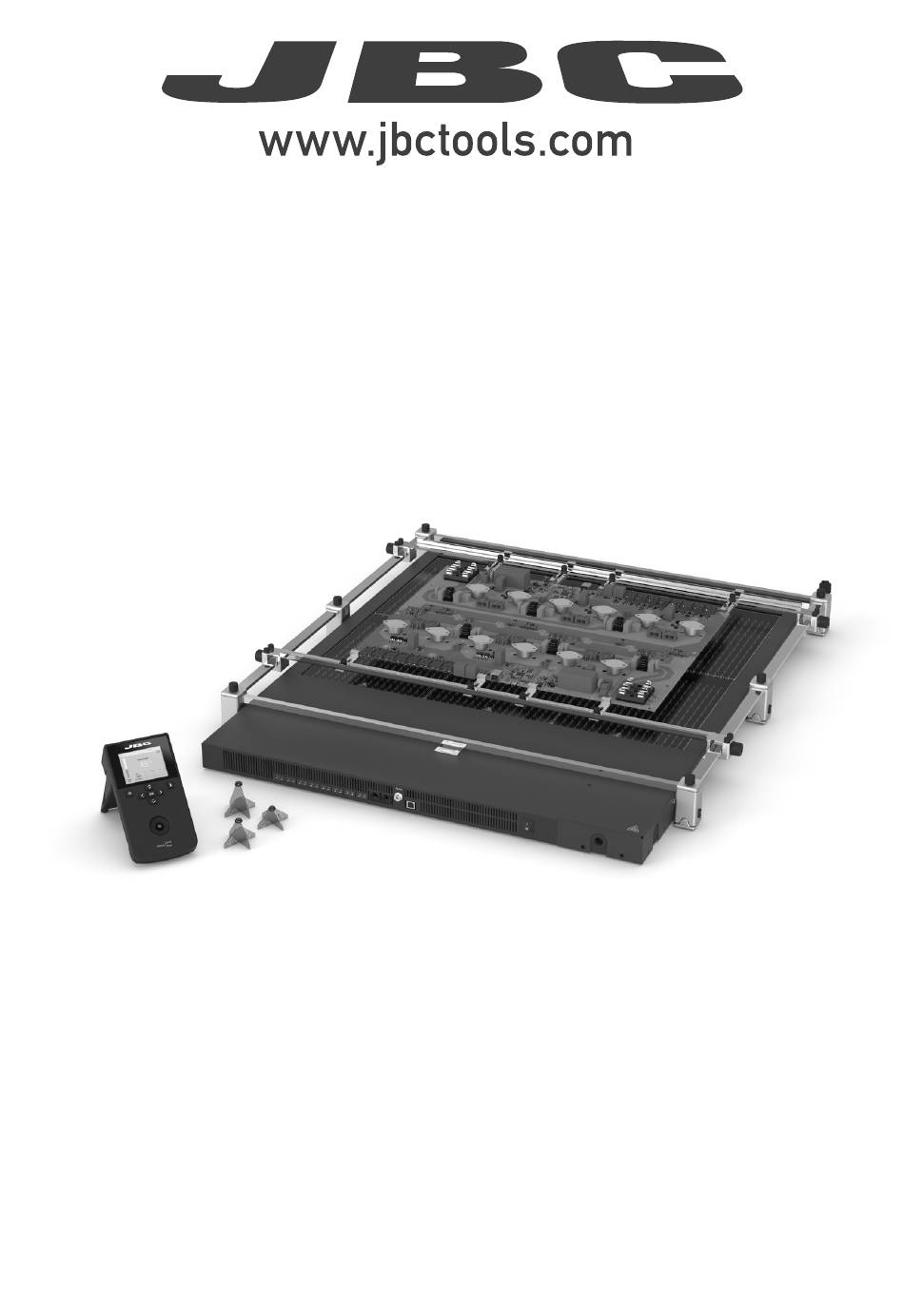

- Page 1 INSTRUCTION MANUAL PHXLEK Preheater Set for PCBs up to 51x61cm/20x24”...
-
Page 2: Table Of Contents
This manual corresponds to the following references: PHXLE-1KA (120V) PHXLE-2KA (230V) PHXLE-9KA (100V) Packing List The following items are included: PHXLE Preheater Unit ......1 unit PHXLS Support..........1 unit Ref. PHXL-SA PH206* PH204* PH205* Console ......1 unit Metallic Supports for PCB RJ45 Cable .... -
Page 3: Console
w w w.jbctools.com Features and Connections Heating Areas Preheater Unit (6 independent heating areas) Zone B1 Zone B2 Zone B3 Fixing brackets for Zone A1 Zone A2 Zone A3 PHXLS Support Thermocouple Connectors x8 (Type K) For Electrical Power Supply RJ45 Connector Connection to Console... - Page 4 RJ45 Cable Ref. 0019914 Connection to Power Supply PHXLEK can be connected to single-phase or three-phase networks. A power supply cable is required. Use the following table to determine the cable size and connection: Peak Current Cable Connection Wire Section Ref.
- Page 5 w w w.jbctools.com To conect your power supply cable to the Heater Unit do as follows: Cable grommet 1. Unscrew the four screws and remove the 2. Insert the cable through the cable grommet cover. The cable can be inserted through the and the flange and fix it with the Allen screws.
-
Page 6: Ref. Ph204
To lower the support, press the button and move down. It is also possible to use JBC´s metallic supports to stabilize the PCB to avoid PCB deformation. Depending on the working height, Ref. PH204*, PH205* or PH206* can be used. Arrange them between the PCB and the Preheater as shown below. - Page 7 w w w.jbctools.com Fast PCB Replacement PHXLS Support lets you replace PCBs of the same batch fast and easily thanks to the spring- loaded clamps, located at the frontal sliding guide. To do this, there is no need to open the sliding guide knob (1) and nor to move the sliding guides.
- Page 8 Work Display The console offers an intuitive user interface, which provides quick access to station parameters. 14:15 Status Indicator 14:15 Max. Rate Status Bar º 1.6ºC/s Max. Heating Max. Rate Rate Instant Power º 1.6ºC/s º Selected 120 Supplied to TC1 Current Heater and Selected...
- Page 9 w w w.jbctools.com Setting Thermocouples Function Select Thermocouples from the Work mode menu to set them up. The thermocouples (TC) can work in three different ways depending on what is needed. · Control: the unit maintains the selected temperature. · Protection: the Heater Unit stops if the TC reaches the selected temperature. ·...
- Page 10 14:15 Work Mode Max. Rate º 1.6ºC/s Temperature Mode: Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected Selected 120 º temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection temperature limit.
- Page 11 Work Mode w w w.jbctools.com Temperature Mode: This function allows you to set a maximum value for the temperature increase per second when heating. Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection The maximum heating rate value can be set between 0.1ºC/s and 2.0ºC/s (2) or “None”...
- Page 12 Profile Modes Select Profile Mode from the Work Mode Menu. In this mode the heater unit regulates the temperature of the TC1 thermocouple according to the selected profile as long as the other TCs do not reach the control/protection temperature limit. 14:15 PROFILE1 Stop...
- Page 13 JBC Predefined Profiles There are 3 profiles predefined by JBC: A, B and C. The difference between them is the number of steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain gradual warming.
- Page 14 Process Analysis By pressing Graphics in the main MENU, the temperature of TC1 thermocouple and power fi gures in real time are displayed. Graphics 14:15 Power (%) Temperature (ºC) Power [%] Ext. Temp [ºC] Switch Y Axis Between Power and Temperature System Notifications The following icons will be displayed on the screen’s status bar.
- Page 15 Insert a USB flash drive into the USB-A connector to export/import profiles. Update the Station Software 1. Download the JBC Update File from 2. Insert the USB flash drive into the console. www.jbctools.com/software.html and save The icon is displayed while updating.
- Page 16 - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. Clean periodically the guide axes...
- Page 17 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than PCB preheating. Incorrect use may cause a fire. - The mains cable must be plugged into approved bases. Make sure that it is properly grounded before use.
- Page 18 Notes...
-
Page 19: Phxls Support
Specifications PHXLEK Preheater Set for PCBs up to 51x61cm / 20x24” Ref.: PHXLE-9KA 100V. Input 100/200V. 50/60Hz. Fuse T20A Ref.: PHXLE-1KA 120V. Input 120/208V. 50/60Hz. Fuse T20A Ref.: PHXLE-2KA 230V. Input 230/400V. 50/60Hz. Fuse T10A - Total Net Weight: 23.00kg / 50.7 lb... - Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
