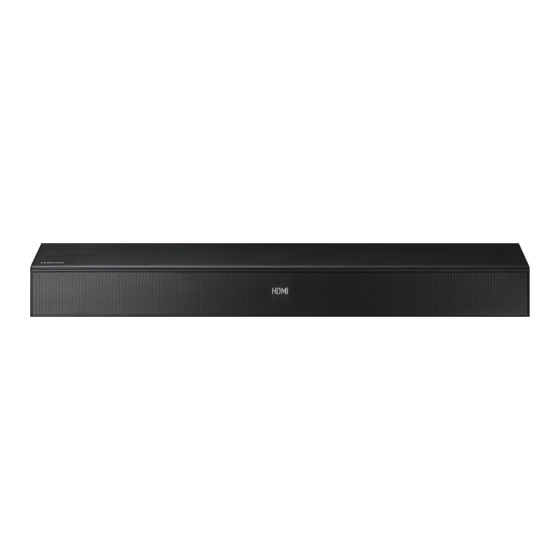

FULL MANUAL HW-N400 Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register...
Page 2
SAFETY INFORMATION SAFETY WARNINGS WARNING • To reduce the risk of fire or electric shock, do TO REDUCE THE RISK OF ELECTRIC SHOCK, DO not expose this appliance to rain or moisture. NOT REMOVE THE COVER (OR BACK). CAUTION NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE •...
Page 3
It is for personal use only. Condensation You can access the FULL MANUAL on may occur if your product has been stored in Samsung’s on-line customer support centre by cold temperatures. If transporting the unit scanning the QR code. To see the manual on...
CONTENTS Checking the Components Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- Product Overview Front Panel / Right Side Panel of the Soundbar ------------------------- Bottom Panel of the Soundbar ------------------------- Connecting the Soundbar Connecting Electrical Power ------------------------- Connecting to your TV Method 1.
Page 5
Connecting a Mobile Device Connecting via Bluetooth ------------------------- Using the Samsung Audio Remote App ------------------------- – Installing the Samsung Audio Remote App ------------------------- – Launching the Samsung Audio Remote App ------------------------- Using the Remote Control How to Use the Remote Control...
5. • For Soundbar wall mounting components, see page 23. • The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care. • The appearance of the accessories may differ slightly from the illustrations above.
02 PRODUCT OVERVIEW Front Panel / Right Side Panel of the Soundbar Position the product so that the SAMSUNG logo is located on the top. Right Side of the Soundbar Display Displays the product’s status and current mode. +/- (Volume) Button Adjusts the volume.
Bottom Panel of the Soundbar HDMI OUT (TV-ARC) AUX IN HDMI IN DIGITAL AUDIO IN USB (5V 0.5A) (OPTICAL) DC 24V HDMI OUT (TV-ARC) DC 24V AUX IN HDMI IN USB (5V 0.5A) DIGITAL AUDIO IN (OPTICAL) DC 24V (Power Supply In) Connect the AC/DC power adapter.
Bottom of the 1 AC/DC Adapter Soundbar Main Unit Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-8500S) to your Soundbar (Sold separately). For more information, see the Samsung Wireless Rear Speaker Kit manual.
• When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using the TV’s remote control. – When you connect using an optical cable, this feature is supported by 2017 Samsung Smart TVs that support Bluetooth.
2. “TV ARC” appears in the display window of the Soundbar main unit and the Soundbar plays TV sound. • If TV sound is inaudible, press the (Source) button on the remote control or on the right side of the Soundbar to switch to “D.IN” mode. The screen displays “D.IN” and “TV ARC” in sequence, and TV sound is played.
3. Select Bluetooth mode on the TV. (For more information, see the TV’s manual.) 4. Select “[AV] Samsung Soundbar Nxxx N-Series” from the list on TV’s screen. An available Soundbar is indicated with “Need Pairing” or “Paired” on the TV Bluetooth device list.
Page 13
If the device fails to connect • If the previously connected Soundbar listing (e.g. “[AV] Samsung Soundbar Nxxx N-Series”) appears in the list, delete it. • Press the PAIR button on the remote control or in “BT” mode, press and hold the (Source) button for more than 5 seconds on the right side of the Soundbar to switch to “BT PAIRING”...
05 CONNECTING AN EXTERNAL DEVICE Connect to an external device via a wired or wireless network to play the external device’s sound through the Soundbar. Connecting using an HDMI Cable Bottom of the Soundbar HDMI OUT (TV-ARC) HDMI IN (ARC) HDMI Cable HDMI IN DIGITAL AUDIO IN...
Connecting using an Optical or Analogue Audio (AUX) Cable Right Side of the Soundbar BD / DVD player / Set-top box / Game console HDMI OUT (TV-ARC) - AUDIO - DC 24V HDMI IN AUX IN Audio (AUX) Cable USB (5V 0.5A) DIGITAL AUDIO IN (not supplied) (OPTICAL)
2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar. • The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.
• After you have connected the Soundbar to your mobile device the first time, use the “BT READY” mode to reconnect. See Page 15 for details. If the device fails to connect • If a previously connected Soundbar listing (e.g. “[AV] Samsung Soundbar Nxxx N-Series”) appears in the list, delete it. • Press the PAIR button on the remote control or in “BT”...
Page 19
• You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function. • Once you have paired the Soundbar to a Bluetooth device, selecting “[AV] Samsung Soundbar Nxxx N-Series” from the device’s scanned devices list will automatically change the Soundbar to “BT”...
Page 20
Disconnecting the Bluetooth device from a Soundbar You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device’s user manual. • The Soundbar will be disconnected. • When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display “BT DISCONNECTED”...
Market search : Samsung Audio Remote Launching the Samsung Audio Remote App To launch and use the Samsung Audio Remote app, touch the Audio Remote icon on your smart device, and then follow the directions on the screen. Audio Remote •...
08 USING THE REMOTE CONTROL How to Use the Remote Control Turns the Soundbar on and off. Power Press to select a source connected to the Soundbar. PAIR • BT PAIRING mode Source To turn on “BT PAIRING” mode, press and hold the (Source) button for more than 5 seconds.
Page 23
Anynet+ and Auto Power Link are controlled by the Right and Left buttons respectively. – Anynet+ : If the Soundbar is connected to a Samsung TV through an HDMI cable, you can control your Soundbar with a Samsung TV remote control.
Page 24
• Volume restriction function Because it may damage hearing when the power is turned on at high volumes, it adjusts the volume to 20 when the set volume is higher than 20. – The default value for Volume restriction is off. The set volume is maintained even when the power is turned off.
• After installing the Soundbar, you can adjust the Soundbar’s volume using the IR remote control that came with a Samsung TV. (If you do not want to use this function, when the Soundbar is off, push the BASS button up and hold it for 5 seconds. “OFF-TV REMOTE” appears in the Soundbar’s display and the function turns off.)
09 INSTALLING THE Wallmount Components WALL MOUNT 450mm Installation Precautions Wall Mount Guide • Install on a vertical wall only. • Do not install in a place with high temperature or humidity. • Verify whether the wall is strong enough to Holder-Screw (2 EA) Screw (2 EA) support the product’s weight.
Page 28
2. Align the Paper Template’s Centre Line with 5. Push a screw (not supplied) through each the centre of your TV (if you are mounting Holder-Screw, and then screw each screw the Soundbar below your TV), and then fix firmly into a support screw hole. the Wall Mount Guide to the wall using tape.
10 SOFTWARE 7. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the UPDATE Bracket-Wall Mounts on the Holder-Screws on the wall. Samsung may offer updates for the Soundbar’s system firmware in the future. USB port HDMI OUT (TV-ARC) DC 24V AUX IN HDMI IN USB (5V 0.5A)
2. Follow the steps below to download the device. product software: • Do not disconnect the power or remove Go to the Samsung website at the USB device while updates are being (samsung.com) search for the model name applied. The main unit will turn off ...
11 TROUBLESHOOTING Before seeking assistance, check the following. The unit will not turn on. Is the power cord plugged into the outlet? ; Connect the power plug to the outlet. A function does not work when the button is pressed. Is there static electricity in the air? ;...
12 LICENCE 13 OPEN SOURCE LICENCE NOTICE To send inquiries and requests regarding open sources, contact Samsung via Email Manufactured under license from Dolby (oss.request@samsung.com). Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby 14 IMPORTANT Laboratories.
5 seconds to turn off Bluetooth Power Port deactivation method function. NOTES • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. • Weight and dimensions are approximate. • Hereby, Samsung Electronics, declares that this equipment is in compliance with Directive 2014/53/EU.
Page 34
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. For information on Samsung’s environmental commitments and product specific regulatory obligations e.g. REACH, WEEE, Batteries, visit: http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html...
Page 35
GÜVENLIK BILGILERI GÜVENLIK UYARILARI UYARI • Yangın ya da elektrik çarpması riskini ELEKTRİK ÇARPMA RİSKİNİ AZLATMAK İÇİN azaltmak için cihazın, su veya neme maruz KAPAĞI (YA DA ARKA KISMI) SÖKMEYİN. kalmasına izin vermeyin. ÜRÜN İÇİNDE KULLANICI TARAFINDAN TAMİR DİKKAT EDİLEBİLECEK BİR PARÇA BULUNMAMAKTADIR. SERVİS İŞLEMLERİNİ, YETKİN SERVİS •...
Page 36
çıkarın. Bu ürün, endüstriyel kullanım için tasarlanmamıştır. Bu ürün sadece kişisel TAM KILAVUZ kullanım içindir. Ürün veya diskini, soğuk TAM KILAVUZ Samsung’un çevrimiçi müşteri sıcaklıklarda depolanmışsa yoğuşma destek merkezinden QR kodunu taratarak ulaşabilirsiniz. Kullanım kılavuzunu meydana gelebilir. Kış şartlarında ünitenin bilgisayarınızda veya mobil cihazınızda...
Page 37
IÇINDEKILER Bi ̇ l eşenleri ̇ denetleme Uzaktan Kumandayı kullanmadan önce pilleri takma (2 adet AA pil) ------------------------- Ürüne genel bakiş Soundbar Ön Paneli / Sağ Yan Paneli ------------------------- Soundbar Alt Paneli ------------------------- Soundbar’i bağlama Elektrik Gücünü Bağlama ------------------------- TV’ni ̇ze bağlama Yöntem 1.
Page 38
Mobi ̇ l ci ̇ h az bağlama Bluetooth Aracılığıyla Bağlama ------------------------- Samsung Audio Remote Uygulamasını Kullanma ------------------------- – Samsung Audio Remote Uygulamasını Yükleme ------------------------- – Samsung Audio Remote Uygulamasını Başlatma ------------------------- Uzaktan kumandayi kullanma Uzaktan Kumandayı Kullanma Şekli ------------------------- Soundbar ses düzeyini TV’nin uzaktan kumandasıyla ayarlama...
5. • Soundbar duvara montaj bileşenleri için bkz. sayfa 23. • Mikro USB - USB adaptör Kablosu ayrı satılır. Satın almak için, bir Samsung Servis Merkezi’ne veya Samsung Müşteri Hizmetleri’ne başvurun. • Aksesuarların görünümü yukarıdaki çizimlerde görünenden biraz farklı olabilir.
02 ÜRÜNE GENEL BAKIŞ Soundbar Ön Paneli / Sağ Yan Paneli Ürünü SAMSUNG logosu üstte olacak şekilde konumlandırın. Soundbar’ın Sağ Tarafı Ekran Ürünün durumunu ve geçerli modunu görüntüler. +/- (Ses Düzeyi) düğmesi Ses düzeyini ayarlayın. • Ayarlandığında, Soundbar’ın ön ekranında ses düzeyi belirir.
Soundbar Alt Paneli HDMI OUT (TV-ARC) AUX IN HDMI IN USB (5V 0.5A) DIGITAL AUDIO IN (OPTICAL) DC 24V HDMI OUT (TV-ARC) DC 24V AUX IN HDMI IN USB (5V 0.5A) DIGITAL AUDIO IN (OPTICAL) DC 24V (Güç Kaynağı Girişi) AC/DC güç...
DIGITAL AUDIO IN (OPTICAL) Soundbar Ana 1 AC/DC Adaptörü Ünitesinin Alt Kısmı Samsung Kablosuz arka Hoparlör Kitini (SWA-8500S) Soundbar’ınıza (ayrı olarak satılır) bağlayarak doğru kablosuz surround sesi genişletin. Daha fazla bilgi için Samsung Kablosuz Arka Hoparlör Kiti kılavuzuna bakın. TUR - 5...
• Soundbar, belirli Samsung TV’lere bağlandığında TV’nin uzaktan kumandası aracılığıyla kontrol edilebilir. – Optik kablo kullanıldığında bu özellik, Bluetooth’u destekleyen 2017 Samsung Smart TV’ler tarafından desteklenir. – Bu işlev ayrıca, ses alanı ve çeşitli ayarların yanı sıra ses düzeyini ve sessize almayı ayarlamak için TV menüsünü...
2. Soundbar ana ünitesinin görüntü penceresinde “TV ARC” görüntülenir ve Soundbar TV sesini çalar. • TV sesi işitilemiyorsa, uzaktan kumandada veya Soundbar’ın sağ tarafında (Kaynak) düğmesine basarak “D.IN” moduna geçin. Ekranda sırayla “D.IN” ve “TV ARC” görüntülenir ve TV sesi çalınır. •...
5 saniye basılı tutun. 3. TV’de Bluetooth modunu seçin. (Daha fazla bilgi için TV’nin kılavuzuna bakın.) 4. TV ekranındaki listeden “[AV] Samsung Soundbar Nxxx N-Series” seçimini yapın. Kullanılabilir Soundbar, TV Bluetooth cihazı listesinde “Need Pairing” veya “Paired” olarak belirtilir.
Page 46
Cihaz bağlanamazsa • Daha önce bağlanan Soundbar liste öğesi (örn. “[AV] Samsung Soundbar Nxxx N-Series”) listede görünüyorsa bunu silin. • “BT PAIRING” moduna geçmek için uzaktan kumandanın PAIR düğmesine basın veya “BT” modundayken Soundbar’ın yanındaki (Kaynak) düğmesini en az 5 saniye basılı tutun. Sonra televizyon arama listesinden “[AV] Samsung Soundbar Nxxx N-Series”...
05 HARİCİ BİR CİHAZ BAĞLAMA Harici cihazın sesini Soundbar’dan çalmak için kablolu veya kablosuz ağ aracılığıyla bir harici cihaz bağlayın. HDMI Kablosu Kullanarak Bağlama Soundbar’ın Alt Kısmı HDMI OUT (TV-ARC) HDMI IN HDMI Kablosu (ARC) HDMI IN DIGITAL AUDIO IN (OPTICAL) HDMI OUT HDMI Kablosu...
Optik veya analog ses (AUX) Kablosu kullanarak bağlama Soundbar’ın Sağ Tarafı BD / DVD oynatıcı / Set üstü kutusu /Oyun konsolu HDMI OUT (TV-ARC) - AUDIO - DC 24V HDMI IN AUX IN Ses (AUX) Kablosu USB (5V 0.5A) DIGITAL AUDIO IN (birlikte verilmez) (OPTICAL) Soundbar’ın Alt Kısmı...
1. Bir Mikro USB - USB adaptör kablosunu bir uçta erkek USB 2.0 Mikro USB fişiyle (Tür B) ve diğer uçta standart dişi 2.0 USB jakıyla (Tür A) Soundbar’ınızdaki mikro USB jakına bağlayın. • Mikro USB - USB adaptör Kablosu ayrı satılır. Satın almak için, bir Samsung Servis Merkezi’ne veya Samsung Müşteri Hizmetleri’ne başvurun.
• Soundbar ürününü mobil cihazınıza bir kez bağladıktan sonra, yeniden bağlanmak için “BT READY” modunu kullanın. Ayrıntılar için bkz. Sayfa 15. Cihaz bağlanamazsa • Daha önce bağlanan Soundbar liste öğesi (örn. “[AV] Samsung Soundbar Nxxx N-Series”) listede görünüyorsa bunu silin. • “BT PAIRING” moduna geçmek için uzaktan kumandanın PAIR düğmesine basın veya “BT”...
Page 52
• Soundbar’i yalnızca HF (Eller Serbest) işlevini destekleyen bir Bluetooth cihazına bağlayamazsınız. • Soundbar ile Bluetooth cihazını eşleştirdiğinizde, cihazın taranmış cihazlar listesinden “[AV] Samsung Soundbar Nxxx N-Series” seçeneğini seçerseniz Soundbar otomatik olarak “BT” moduna geçer. – Sadece Soundbar, Bluetooth cihazının eşlenen cihazları listesinde bulunuyorsa kullanılabilir.
Page 53
Bluetooth cihazının Soundbar ile bağlantısını kesme Bluetooth cihazının Soundbar bağlantısını kesebilirsiniz. Talimatlar için Bluetooth cihazının kullanım kılavuzuna bakın. • Soundbar bağlantısı kesilecektir. • Soundbar’ın Bluetooth cihazından bağlantısı kesildiğinde, Soundbar’ın ön ekranında “BT DISCONNECTED” ifadesi görüntülenir. Soundbar’ın Bluetooth cihazı bağlantısını kesme Sağ...
Samsung Audio Remote uygulamasını başlatmak ve kullanmak için, akıllı cihazınızda Audio Remote simgesine dokunun ve sonra ekrandaki talimatları izleyin. Audio Remote • Samsung Audio Remote uygulaması yalnızca Android OS 3.0 veya üstünü çalıştıran Android cep telefonları ve mobil cihazlarıyla uyumludur. TUR - 17...
08 UZAKTAN KUMANDAYI KULLANMA Uzaktan Kumandayı Kullanma Şekli Soundbar'ı açar ve kapatır. Güç Soundbar’a bağlı bir kaynağı seçmek için basın. • BT PAIRING modu PAIR “BT PAIRING” modunu açmak için Kaynak (Kaynak) düğmesini 5 saniyeden uzun süre basılı tutun. Sesi kesmek için (Sessiz) düğmesine basın.
Page 56
Anynet+ ve Auto Power Link işlevini açabilir veya kapatabilirsiniz. Anynet+ ve Auto Power Link işlevleri sırasıyla Sağ ve Sol düğmeleri ile kontrol edilir. – Anynet+ : Soundbar, HDMI kablosuyla bir Samsung TV’ye bağlanırsa, Soundbar’ınızı Samsung TV uzaktan kumandasıyla kontrol edebilirsiniz. Anynet+ işlevini ON ve OFF arasında değiştirmek için Sağ...
Page 57
• Ses seviyesini kısıtlama işlevi Güç, yüksek ses seviyelerinde açıldığında işitme duyusuna zarar verebileceğinden, ses seviyesi 20’den yüksekse bunu 20’ye ayarlar. – Ses seviyesini kısıtlama için varsayılan değer kapalı. Ayarlanan ses seviyesi, güç kapalıyken de korunur. – Ayarı değiştirmek için uzaktan kumandadaki Aşağı düğmesini 5 saniye basılı tutun.
5 saniye bu şekilde tutun. Soundbar’ın ekranında “OFF-TV REMOTE” ifadesi görüntülenir ve fonksiyon kapanır.) Sesi Samsung TV uzaktan kumandasından ayarlamak için BASS düğmesini yukarı itin ve Soundbar ekranında “SAMSUNG-TV REMOTE” ifadesi görüntülenene kadar en az 5 saniye bu şekilde tutun.
2.0 kn 2.0 kn 4.0 kn SOUND MODE SURROUND 5.1 kn 2.0 kn 4.0 kn • Samsung Kablosuz Arka Hoparlör Kiti ayrı olarak satın alınabilir. Bir Kit satın almak için Soundbar’ı satın aldığınız satıcıyla iletişime geçin. WOOFER TUR - 22...
09 DUVAR Duvar Montaj Bileşenleri MONTAJINI 450mm TAKMA Duvara Montaj Kılavuzu Kurulum Önlemleri • Sadece dikey bir duvara takın. • Sıcaklık veya nemin yüksek olduğu bir yere Tutucu Vida (2 AD) Vida (2 AD) kurmayın. • Duvarın ürün ağırlığını taşıyabilecek dayanımda olduğunu doğrulayın.
Page 61
2. Kağıt Şablonunun Orta Çizgi öğesini TV’nizin 5. Her Tutucu Vida öğesinin içine bir vida merkeziyle (Soundbar’ı TV’nizin altına monte (birlikte verilmez) itin ve sonra her vidayı sıkı ediyorsanız) hizalayın ve sonra Duvara bir şekilde destek vidası deliğine vidalayın. Montaj Kılavuzu öğesini bant kullanarak duvara sabitleyin.
Kelepçelerini aşağı kaydırın. Soundbar’ınızın USB bağlantı noktasına bağlayarak bellenimi güncelleyebilirsiniz. Güncelleme dosyalarını indirme hakkında daha fazla bilgi için (www.samsung.com Support) bağlantısından Samsung Electronics web sitesine gidin. Daha sonra Soundbar’ınızın modelini girin ya da seçin; Yazılım ve Uygulamalar ve ardından İndirmeler seçimini yapın.
2. Soundbar güç kablosunu çıkarın, yeniden • Mikro USB - USB adaptör Kablosu ayrı takın ve sonra Soundbar’ı açın. satılır. Satın almak için, bir Samsung • USB depolama cihazında Soundbar Servis Merkezi’ne veya Samsung Müşteri tarafından desteklenen ses dosyaları...
11 SORUN GİDERME Yardım istemeden önce şunu kontrol edin. Ünite açılmıyor. Güç kablosu prize takılı mı? ; Elektrik fişini prize bağlayın. Düğmeye basıldığında işlev çalışmıyor. Havada statik elektrik var mı? ; Güç kablosunu sökün ve yeniden bağlayın. BT modunda ses kayıpları oluyor. ;...
12 PATENTLERI 13 AÇIK KAYNAK LISANS BILDIRIMI Açık kaynaklarla ilgili soru ve talepleriniz için E-posta yoluyla Samsung’a başvurun Manufactured under license from Dolby (oss.request@samsung.com). Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of 14 HİZMET Dolby Laboratories.
Bağlantı Noktası Devre Dışı Bırakma yöntemi 5 saniye basılı tutun. NOTLAR • Samsung Electronics Co., Ltd, önceden bildirimde bulunmaksızın özellikleri değiştirme hakkını saklı tutmaktadır. • Ağırlık ve boyutlar yaklaşık değerlerdir. • Bu belgeyle, Samsung Electronics bu cihazın 2014/53/AB Direktifine uyduğunu beyan eder.
Page 67
İş kullanıcıları tedarikçileri ile irtibat kurup satın alma sözleşmesinin hüküm ve koşullarına bakmalıdır. Bu ürün ve ürünün elektronik aksesuarları, imha için diğer ticari atıklarla karıştırılmamalıdır. Samsung’un çevre taahhütleri ve REACH, WEEE, Piller gibi ürüne özgü düzenleme zorunlulukları hakkında bilgi için şu adresi ziyaret edin: http://www.
