WEGMATT
LLC
Contents
1
Disclaimer ..................................................................................................................................2
2
Connecting dAISy 2+ to a computer .............................................................................................2
2.1
Windows 10 and newer ................................................................................................................ 2
2.2
Windows 7, Vista and XP .............................................................................................................. 2
2.3
Windows 8 .................................................................................................................................... 3
2.4
Mac OS X ....................................................................................................................................... 3
2.5
Linux .............................................................................................................................................. 3
2.6
Configuration of OpenCPN ............................................................................................................ 4
2.7
Connecting dAISy with other software ......................................................................................... 5
3
Using dAISy 2+ ............................................................................................................................6
3.1
Interpreting the status LED ........................................................................................................... 6
3.2
Configuration and debug menu .................................................................................................... 7
4
Using the NMEA 0183 connector .................................................................................................9
5
Using the Auxiliary Serial connector .......................................................................................... 10
5.1
AIS over WiFi with the DT-06 WiFi module ................................................................................. 11
6
Tips for good AIS reception ....................................................................................................... 15
6.1
Antenna ....................................................................................................................................... 15
6.2
Location, location, location ......................................................................................................... 15
6.3
Radio frequency noise ................................................................................................................ 16
7
Troubleshooting ....................................................................................................................... 16
8
Specifications ........................................................................................................................... 17
9
Source code and schematics...................................................................................................... 18
10
Contact ................................................................................................................................. 18
th
6356 138
Ave NE #212
Page 1

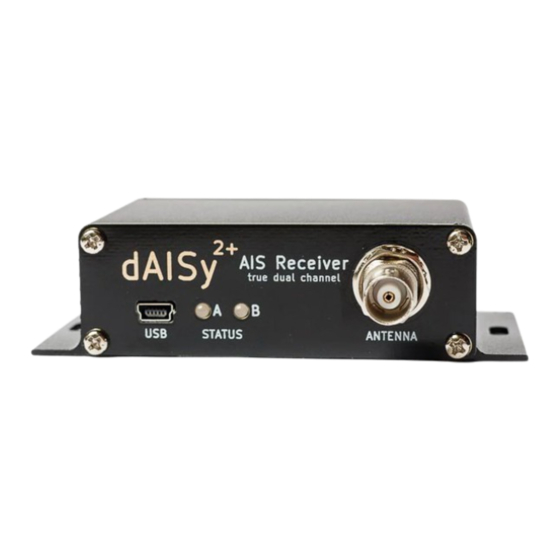

dAISy 2+ AIS Receiver
Designed and assembled in USA
v2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the dAISy 2+ and is the answer not in the manual?

Questions and answers

Related Manuals for Wegmatt dAISy 2+

Summary of Contents for Wegmatt dAISy 2+

  • Page 1: Table Of Contents

    Location, location, location ......................15 Radio frequency noise ........................ 16 Troubleshooting ........................16 Specifications ........................... 17 Source code and schematics...................... 18 Contact ..........................18 Wegmatt LLC Designed and assembled in USA 6356 138 Ave NE #212 Redmond, WA United States of America https://wegmatt.com...

  • Page 2: Disclaimer

    It’s the user’s responsibility to use the product prudently. Neither Wegmatt LLC nor its dealers accept responsibility or liability to the product user or their estate for any accident, loss, injury, or damage whatsoever arising out of the use of this product.

  • Page 3: Windows 8

    2.3 Windows 8 Windows 8 requires to temporarily disable driver signature verification while installing dAISy’s USB descriptor file. As preparation to the actual installation, follow the steps in this article: https://www.howtogeek.com/167723/how-to-disable-driver-signature-verification-on-64-bit-windows- 8.1-so-that-you-can-install-unsigned-drivers/ Once driver signature verification is disabled, follow the instructions for Windows 7, Vista and XP. For your safety, reboot your PC after completion of the installation.

  • Page 4: Configuration Of Opencpn

    2.6 Configuration of OpenCPN OpenCPN is a free chart plotter and navigation software. Among many other things, OpenCPN supports input from AIS receivers to display the position of ships on its charts. You can learn more about OpenCPN and download it on the OpenCPN web page: https://opencpn.org To use dAISy with OpenCPN, go to the Options dialog, select the Connections icon and add a new connection.

  • Page 5: Connecting Daisy With Other Software

    2.7 Connecting dAISy with other software dAISy presents itself to computers as a virtual serial port. See the OS-specific chapters above about installation to learn how to determine the serial port. The serial communication parameters of dAISy are: Baud rate 38400 Data bits Parity...

  • Page 6: Using Daisy 2

    3 Using dAISy 2+ Using dAISy is as simple as connecting it with an antenna and a PC and powering up your AIS capable application of choice. When plugged in, dAISy automatically starts to listen for AIS transmissions. 3.1 Interpreting the status LED dAISy has two, two-color status LED, has two two-color status LED, giving an indication about how it’s doing.

  • Page 7: Configuration And Debug Menu

    3.2 Configuration and debug menu When connecting to dAISy with a serial terminal program (e.g. Putty or Termite on Windows, screen on Linux and OS X), pressing ESC will bring up a menu with a few configuration and debug options. 3.2.1 Configuration options 0-3: Control the speed of the NMEA and auxiliary serial ports at the back of the device.
  • Page 8 #: Save current settings (serial, AIS channel, and debug) as power-on defaults. This is particularly useful when you want to persist the settings for the NMEA and auxiliary serial output. ESC: Resume receiving AIS messages. 3.2.2 Debug options D: Toggles debug messages. When enabled and in AIS receive mode, signal strength and other information about valid and invalid AIS packets will be displayed.

  • Page 9: Using The Nmea 0183 Connector

    4 Using the NMEA 0183 connector dAISy 2+ comes with a NMEA 0183 connector. This allows to connect the AIS receiver to chartplotters and other marine equipment. The connector also allows to power dAISy from the boat’s power system instead of USB. dAISy NMEA connector Chartplotter / boat Comment NMEA +...

  • Page 10: Using The Auxiliary Serial Connector

    5 Using the Auxiliary Serial connector For tinkerers, dAISy 2+ provides an auxiliary serial port on the rear of the unit. This connector can be used to process AIS messages with other devices. The pinout of the serial connector is compatible with HC-05/HC-06 Bluetooth modules and DT-06 WiFi modules widely available on eBay.

  • Page 11: Ais Over Wifi With The Dt-06 Wifi Module

    5.1 AIS over WiFi with the DT-06 WiFi module The auxiliary serial port is pin-compatible with the inexpensive DT-06 WiFi module. With the module, dAISy 2+ can make data available wirelessly to mobile devices like laptops, tablets and smartphones. 5.1.1 What you need DT-06 WiFi module, available for US$4 to $10 on Ebay and other online shops.
  • Page 12 First, configure the communication between the WiFi module and dAISy. Navigate to MODULE > Serial. Set BaudRate to 38400. Leave the remaining fields at their defaults (8, NONE, 1, 50). Click Save. Next, configure protocol, address, and port on which AIS data will be broadcasted.
  • Page 13 We recommend protecting access to the WiFi module by setting a password. Navigate to MODULE > WiFi. In the section SOFT AP Settings enter the desired password into the field Password. The password must be 8-63 characters. Optionally, you can change the name of the WiFi module by updating the field SSID Name.
  • Page 14 5.1.5 Configure Navionics Boating App Garmin Boating, also known as Navionics, is a popular app for mobile devices that in its paid version also supports AIS. Connect your mobile device to the WiFi access point of the dAISy 2+ AIS receiver. Open the Navionics app.

  • Page 15: Tips For Good Ais Reception

    6 Tips for good AIS reception Due to their low-cost architecture, dAISy AIS receivers are not as sensitive as some higher priced receivers. The following basic measures can be taken to improve performance. 6.1 Antenna If everything else is optimal, almost any antenna tuned to the VHF band will work. We used a simple wire cut to length for my first prototypes.

  • Page 16: Radio Frequency Noise

    6.3 Radio frequency noise The main weakness of the dAISy AIS receivers, and probably most low-cost and SDR-based AIS receivers, is susceptibility to out-of-band RF noise. The effect of noise is reduced range, and fewer successfully received packets. Unfortunately, there’s not much we can do except finding a spot that’s less impacted by noise.

  • Page 17: Specifications

    8 Specifications Power Power input ports USB, NMEA connector, AUX serial Input voltage USB Input voltage NMEA0183 connector 9-24V (36V max) Input voltage AUX Serial 3.3V or 5V selectable Input current USB < 80 mA Input current NMEA0183 connector < 45 mA (@12V) Input current AUX Serial <...

  • Page 18: Source Code And Schematics

    You can also reach us on GitHub and Twitter. https://wegmatt.com Wegmatt LLC 6356 138 Ave NE, #212 Redmond, WA 98052 United States of America Page 18...
