Summary of Contents for SwedHeat Lumi 1

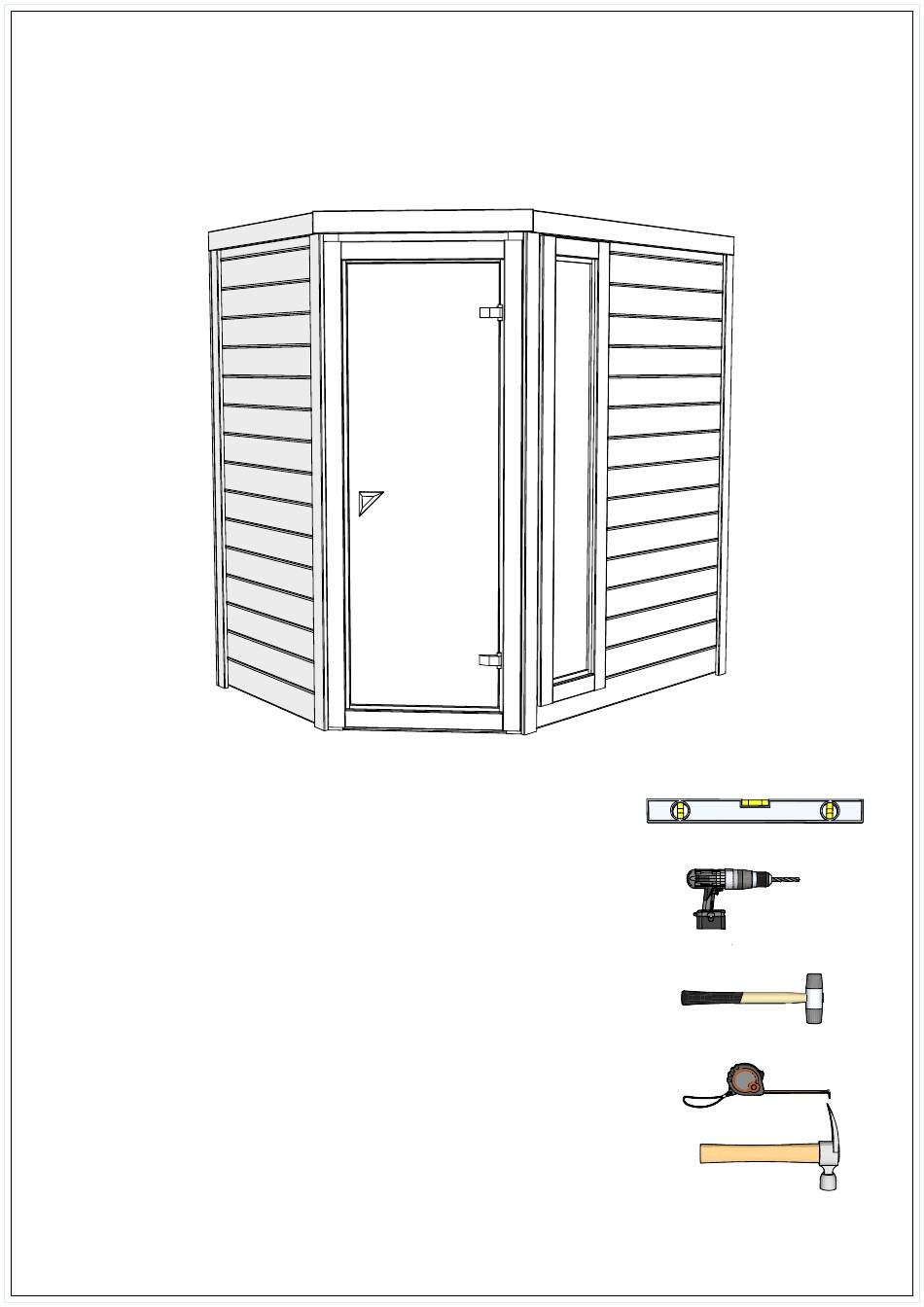

- Page 1 Assembly instructions List of items needed: Bubble level Drill Rubber hammer Measuring tape Hammer...
- Page 2 3,51 m...
- Page 8 Teatree Sauna Side Name Width Height Length Quantity 3D Front Axonometry view Front wall 1326 1326 1326 Back wall 1926 1926 1926 Left wall 1926 1926 Right wall 1326 1326 Entrance wall Heater protection parts Heater cover Heater cover Sauna beds Sauna bed 1400 Sauna bed...
- Page 9 Roof panel holders Panel holder Panel 1356 holder Panel 1386 holder Panel 1880 holder Panel 1910 holder Sauna Corners Corners 2160 Corner covers Covers 2085 Crown for roof covering Cover Cover 1400 Cover 1980 Cover 2000 Door corner cover Spec. part 2085 Spec.
- Page 10 Introduction of sauna parts Sauna covers Roof panel Left wall Roof panel holders Back wall Corner covers Corner Door frame Sauna beds Front wall Right wall Heater protection Bed holders Window frame Entrance wall...
- Page 11 Pay attention to Pre-drill holes Drive the screw in pre- the position of for screws drilled holes the part Keep distance >10cm from walls 90° 90° >10cm 90° 5x80mm for fastening corners to walls...
- Page 12 Pre-drill holes for screws Use rubber hammer for wall parts Make sure to level for better building accuracy Drive the screw in pre- drilled holes 5x80mm for fastening corners to walls...
- Page 13 Pre-drill holes for screws Use rubber hammer for wall parts Make sure to level for better building accuracy Make sure that the height of the sauna is 2160 mm 5x80mmmm for fastening corners to walls Drive the screw in pre- drilled holes...
- Page 14 Pre-drill holes for screws Make sure to level for better building accuracy Drive the screw in pre-drilled 1. Install the door and window frame brackets in the holes on the frame brackets locations indicated on the original plan. 2. Pre-drill holes for screws 3.
- Page 15 Pre-drill holes for screws Make sure to level for better building accuracy Drive the screw in pre-drilled holes on the frame brackets 1. Install the door frame brackets (which is cut 45°) in the opening where door frame bracket is. 2.
- Page 16 Insert the hinges into the door glass 1. Insert the hinges into the door glass. 2. After that put the door glass in the door frame that is factory assembled...
- Page 17 ! Make sure the glass is centered between the door frame Mark places for drilling Drill the marked points for the hinges Screw hinges to door frame 3x35mm for fastening hinges...
- Page 18 1. Put the glass in the frame brackets 2. Center the glass 3. Nail the window surrounds to the frame 2x30mm glass covers Nail the window surrounds to the frame...
- Page 19 Place the door and window in between the frame you attached earlier Pre-drill holes for screws Drive the screw in pre- drilled hole 5x100mm for fastening door frame...
- Page 20 Pre-drill holes for screws Drive the screw in pre- drilled hole 3x35mm for fastening door and window frame covers...
- Page 21 Make sure to level when installing bed holders The recommended height for bed holder installation is 700mm for upper bed holder and 400mm for lower bed holder, but you can customize it according to you Pre-drill holes for screws 700 mm Drive the screw in pre- drilled hole 400 mm...
- Page 22 Place the upper sauna bed on the holder and fasten with screws. We recommend to leave the lower sauna bed loose so you can adjust it if needed 5x55mm for Pre-drill holes fastening sauna for screws beds Use screws to fasten sauna bed in pre-drilled holes...
- Page 23 Sauna heater protection assemble and installation Pre-drill holes for screws Assemble sauna heater protection as shown in the picture above Drive the screw in pre- drilled hole Make sure to level when installing heater protection 210 mm If possible, adjust the height of the heater protection according to the heater purchased.
- Page 24 Make sure to level for better building accuracy Pre-drill holes for screws 50-55 mm Drive the screw in pre- drilled hole Apply sealing tape on roof panel holders 4x45mm for fastening panel holders...
- Page 25 Pre-drill holes for screws Drive the screws into the pre-drilled holes for the panel holder in the roof panel Connect roof panels as shown above 4x45mm for fastening roof panels...
- Page 26 Place corner covers as shown on picture above 2x30mm for corner covers Nail the corner covers to hide screws...
