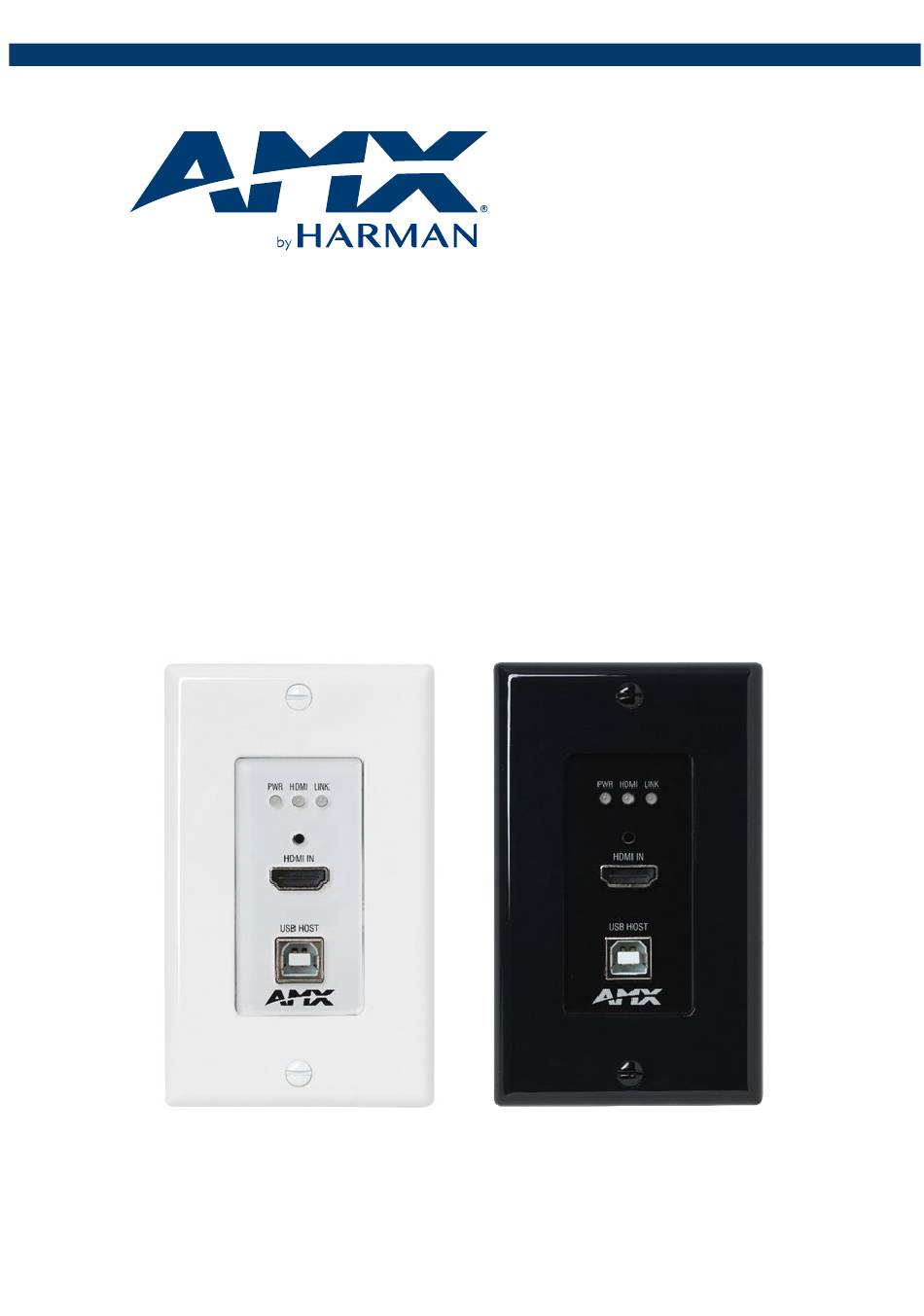

- Page 1 HARDWARE REFERENCE MANUAL DXLINK™ 4K60 HDMI WALLPLATE TRANSMITTER DX-TX-DWP-4K60-BL, DX-TX-DWP-4K60-WH AV FOR AN IT WORLD...
- Page 2 Important Safety Instructions READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 3 Warnings ESD Warning: The icon to the left indicates text regarding potential danger associated with the discharge of static electricity from an outside source (such as human hands) into an integrated circuit, often resulting in damage to the circuit. WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture. WARNING: No naked flame sources - such as candles - should be placed on the product.
- Page 4 -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Caution: Changes or modifications not expressly approved by Harman could void the user’s authority to operate the equipment.
-
Page 5: Table Of Contents
CONTENTS INTRODUCTION ....................................6 OVERVIEW ..........................................6 FEATURES ..........................................6 PACKAGE CONTENTS ......................................6 SPECIFICATIONS ........................................7 TRANSMISSION DISTANCE ................................... 7 HARDWARE DESCRIPTION ....................................8 PINOUT INFORMATION ..................................9 RS-232 ............................................9 TWISTED PAIR CABLE ......................................9 INSTALLATION AND WIRING ................................ 10 MOUNTING OPTIONS FOR WALLPLATE .............................. -
Page 6: Introduction
Introduction Overview The AMX DXLink 4K60 HDMI Wallplate Transmitter is a 4K60 4:4:4 capable distance transport solution with support for HDMI 2.0 and HDCP 2.2. It transmits audio, video, and USB 2.0 over one shielded Cat6A or Cat7 standard twisted pair cable. DXLink 4K60 HDMI Wallplate Transmitters are perfect for sending HDMI and control signals over long distances to remote DXLink 4K60 Receiver Modules or other compatible AMX Receivers such as the DGX DXLink 4K60 Twisted Pair Input Board or DVX 4K60 All-In- One Presentation Switchers. -
Page 7: Specifications
Specifications Technical 1 x HDMI IN, 1 x USB HOST, 1 x DXLINK OUT, 1 x RS-232 (3.5mm, 3-Pin Input/Output Phoenix Port), 1 x DC 12V IN (2-Pin Phoenix Port) Input Signal Type HDMI 2.0 with 4K@60Hz 4:4:4, HDCP 2.2 VESA: 800x600 , 1024x768... -
Page 8: Hardware Description
Hardware Description POWER LED: On indicates when the Transmitter is powered on. HDMI LED: On indicates the HDMI signal is input, off indicates no HDMI signal input. LINK LED: On indicates the DXLink twisted pair cable is connected and an active link is established, ... -
Page 9: Pinout Information
Pinout Information RS-232 Connects to a RS-232 device with the 3-pole, 3.5mm captive screw connectors. Wire as shown below: Twisted Pair cable The pinout in the following picture is for twisted pair cable that connects to the DXLink connector on Transmitters. -
Page 10: Installation And Wiring
Installation and Wiring Mounting Options for Wallplate The DXLink 4K60 HDMI wallplate transmitter mounts in a standard US single gang back box. Standard decora style cover plates are provided to allow matching the individual decor of an environment or matching other standard decor covers in a room/area. IMPORTANT: Be sure to measure the back box and any other components used to mount the Wallplate prior to installation/construction to ensure the unit fits (e.g., some mud rings do not work unless their corners are modified). -
Page 11: Applying Power
Endpoint Mode (Switcher) The primary function of the Transmitters is to work with compatible DXLink equipment as an endpoint solution for transmission of HDMI over twisted pair cable. 1. Connect one or more transmitters to the 4K60 DXLink input board of the DGX or the DXLink input ports of the DVX-4K switcher and connect one or more receivers to the 4K60 DXLink output board of the DGX or the DXLink output ports of DVX-4K switcher. -
Page 12: Rs-232 Operation
RS-232 Operation RS-232 Switch Settings The wallplate transmitter features a slide switch to set RS-232 function, the RS-232 switch is as shown in the following figure. By default, it is set to “PASS THROUGH”. PASS THROUGH: When the transmitter is connected to a DXLink 4K60 receiver or DXLite 4K60 ... -
Page 13: Change Rs-232 Baud Rate
Change RS-232 Baud Rate The default baud rate of the RS-232 port is 115200. Users can use API commands to change the RS-232 baud rate. Set the RS-232 switch to “PASS THROUGH” and connect the RS-232 port to the PC, ensure a serial port assistant is downloaded on the PC. -
Page 14: Warranty Terms And Conditions
