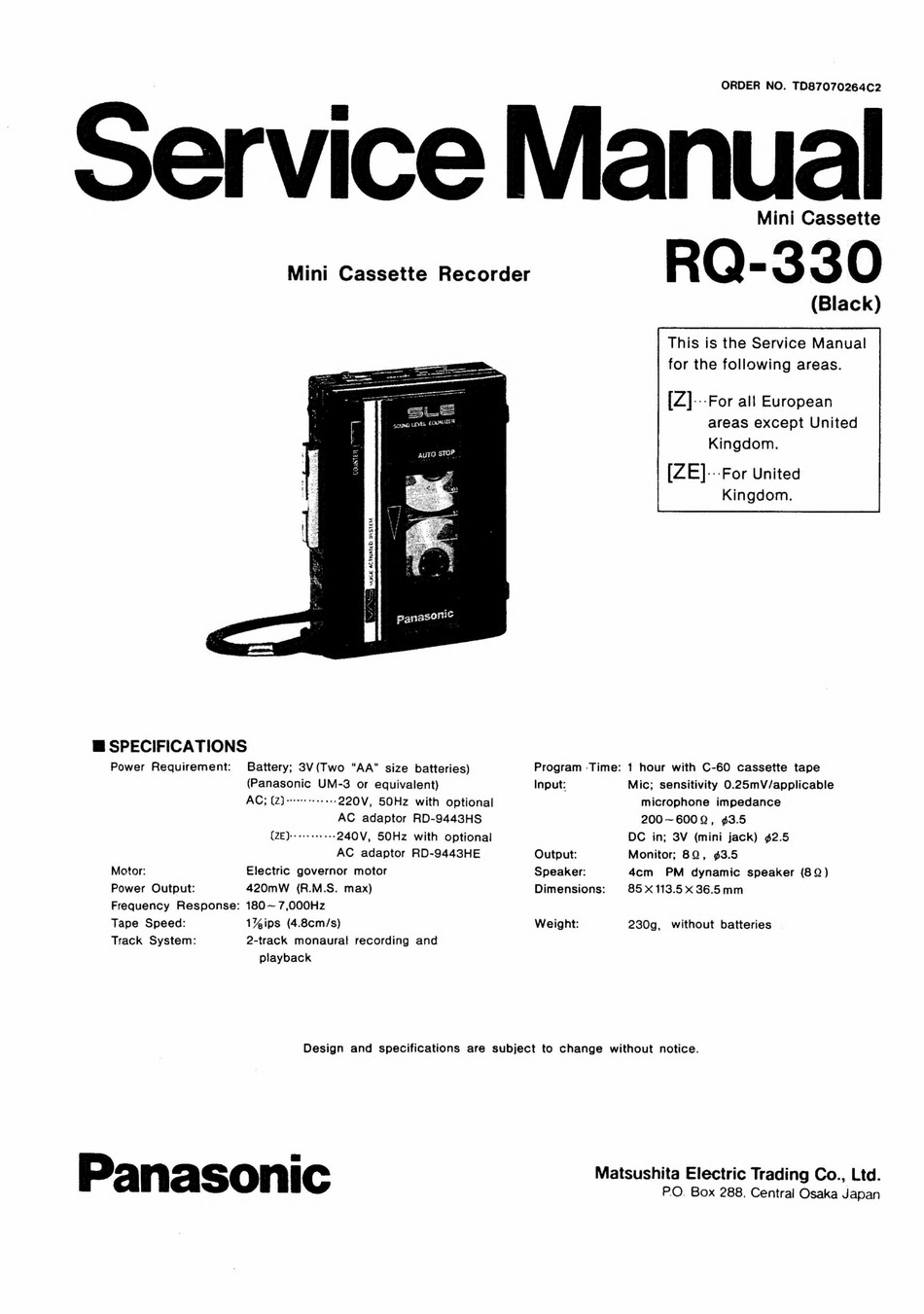

ORDER
NO. TD87070264C2
- Service Manual
Mini Cassette

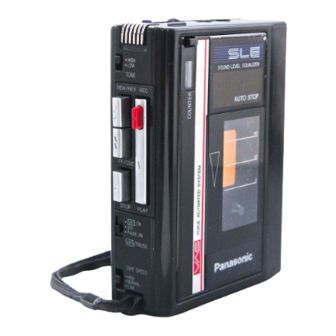

Mini Cassette Recorder
RQ
a 3 3 O
(Black)
This is the Service Manual
for the following areas.
[Z]---For all European
areas except United
Kingdom.
[ZE]---For United
Kingdom.
2f
ie
€:
S
panasonic
SPECIFICATIONS
Power Requirement:
Battery; 3V(Two
"AA" size batteries)
Program -Time: 1 hour with C-60 cassette tape
(Panasonic
UM-3
or equivalent)
Input:
Mic; sensitivity 0.25mV/applicable
ACG; (Z} +++ +--+ 220V, 50Hz with optional
microphone impedance
AC adaptor RD-9443HS
200~6000,
¢3.5
(ZE)-++++++++»-240V, 50Hz
with optional
DC in; 3V (mini jack) ¢2.5
AC
adaptor
RD-9443HE
Output:
Monitor;
89,
¢3.5
Motor:
Electric governor
motor
Speaker:
4cm
PM
dynamic
speaker (82)
Power
Output:
420mW
(R.M.S.
max)
Dimensions:
85 X 113.5
k
36.5mm
Frequency
Response:
180 ~ 7,000Hz
Tape Speed:
1%ips (4.8cm/s)
Weight:
230g,
without batteries
Track
System:
2-track
monaural
recording
and
playback
Design
and
specifications
are subject to change
without
notice.
a
Panasonic
Matsushita
Electric Trading Co., Lid
