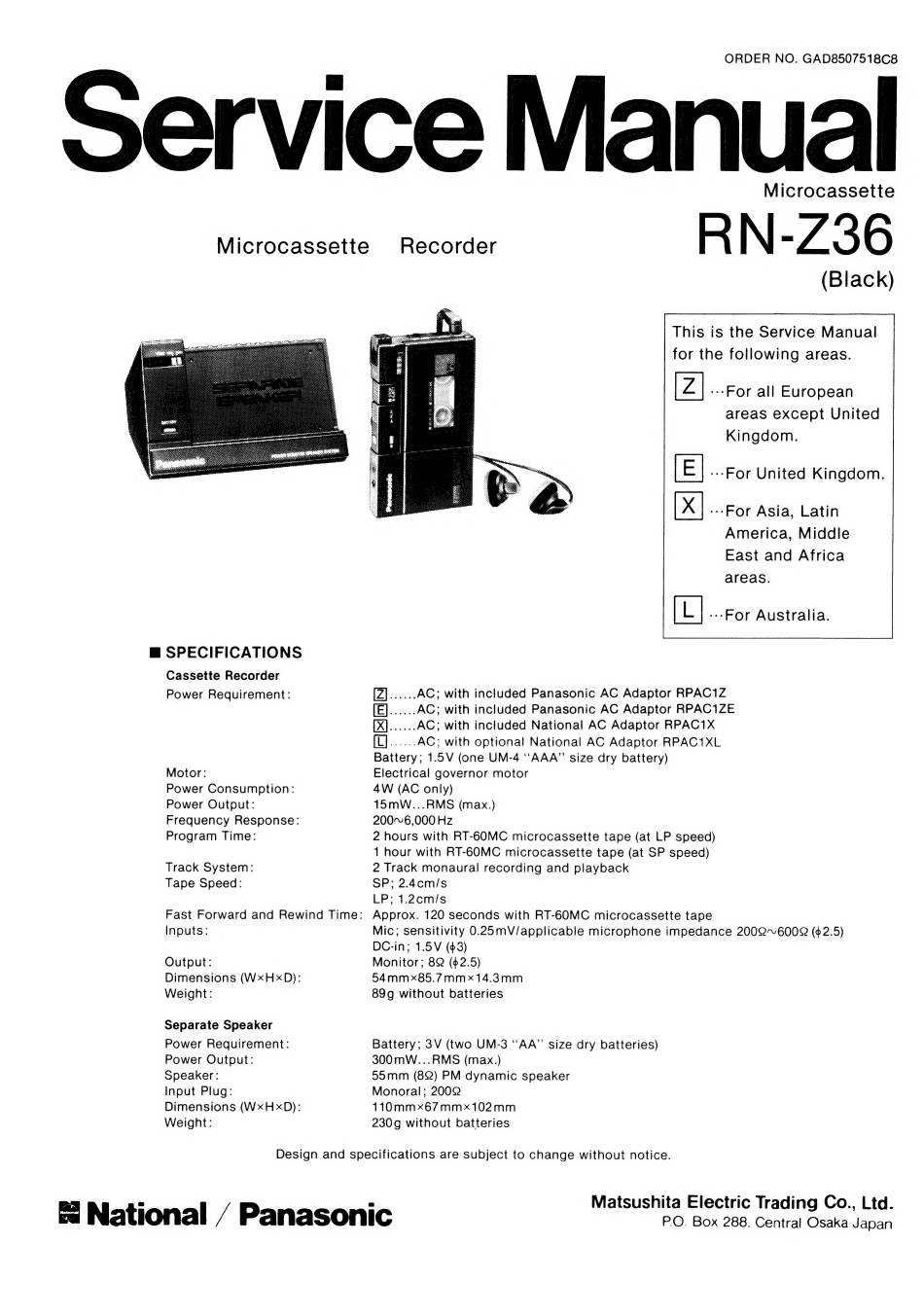

Panasonic RN-Z36 Service Manual

Microcassette
m@ SPECIFICATIONS
Cassette Recorder
Power Requirement:
Motor:
Power Consumption:
Power Output:
Frequency Response:
Program Time:
Track System:
Tape Speed:
Fast Forward and Rewind Time:
Inputs:
Output:
Dimensions (WxHxD):
Weight:
Separate Speaker
Power Requirement:
Power Output:
Speaker:
Input Plug:
Dimensions (WxHxD):
Weight:
ORDER NO. GAD8507518C8
Service Manual
Microcassette
Recorder RN-Z36
Black)
This is the Service Manual
for the following areas.
---For all European
areas except United
Kingdom.
--For United Kingdom.
--For Asia, Latin
America, Middle
East and Africa
areas.
---For Australia.
fen el
eer AC; with included Panasonic AC Adaptor RPAC1Z
[E]...... AC; with included Panasonic AC Adaptor RPAC1ZE
sine AC; with included National AC Adaptor RPAC1X
ates: AC; with optional National AC Adaptor RPAC1XL
Battery; 1.5V (one UM-4 "AAA" size dry battery)
Electrical governor motor
4W (AC only)
15mW...RMS (max.)
200~6,000 Hz
2 hours with RT-60MC microcassette tape (at LP speed)
1 hour with RT-60MC microcassette tape (at SP speed)
2 Track monaural recording and playback
SP; 2.4cm/s
LP; 1.2cm/s
Approx. 120 seconds with RT-60MC microcassette tape
Mic; sensitivity 0.25mV/applicable microphone impedance 2002~6002 ($2.5)
DC-in; 1.5V ($3)
Monitor; 82 ($2.5)
54mmx85.7mmx14.3mm
89g without batteries
Battery; 3V (two UM-3 "AA" size dry batteries)
300 mW...RMS (max.)
55mm (88) PM dynamic speaker
Monoral; 2002
110mmx67mmx102mm
230g without batteries
Design and specifications are subject to change without notice.
Matsushita Electric Trading Co., Ltd.
