The relays can be controlled in different ways : direct
control from open-collector outputs, TTL or CMOS level or
trough other kits (K6711, K8000, K8023,...)

DIP switches are included to allow manual activation of the
relays in case of maintenance work.

Every output of the print can be equipped with a noise suppres-
sor network.

Output 12V CC can be used as a power supply for other kits:
K6711, K8023,...
K6714


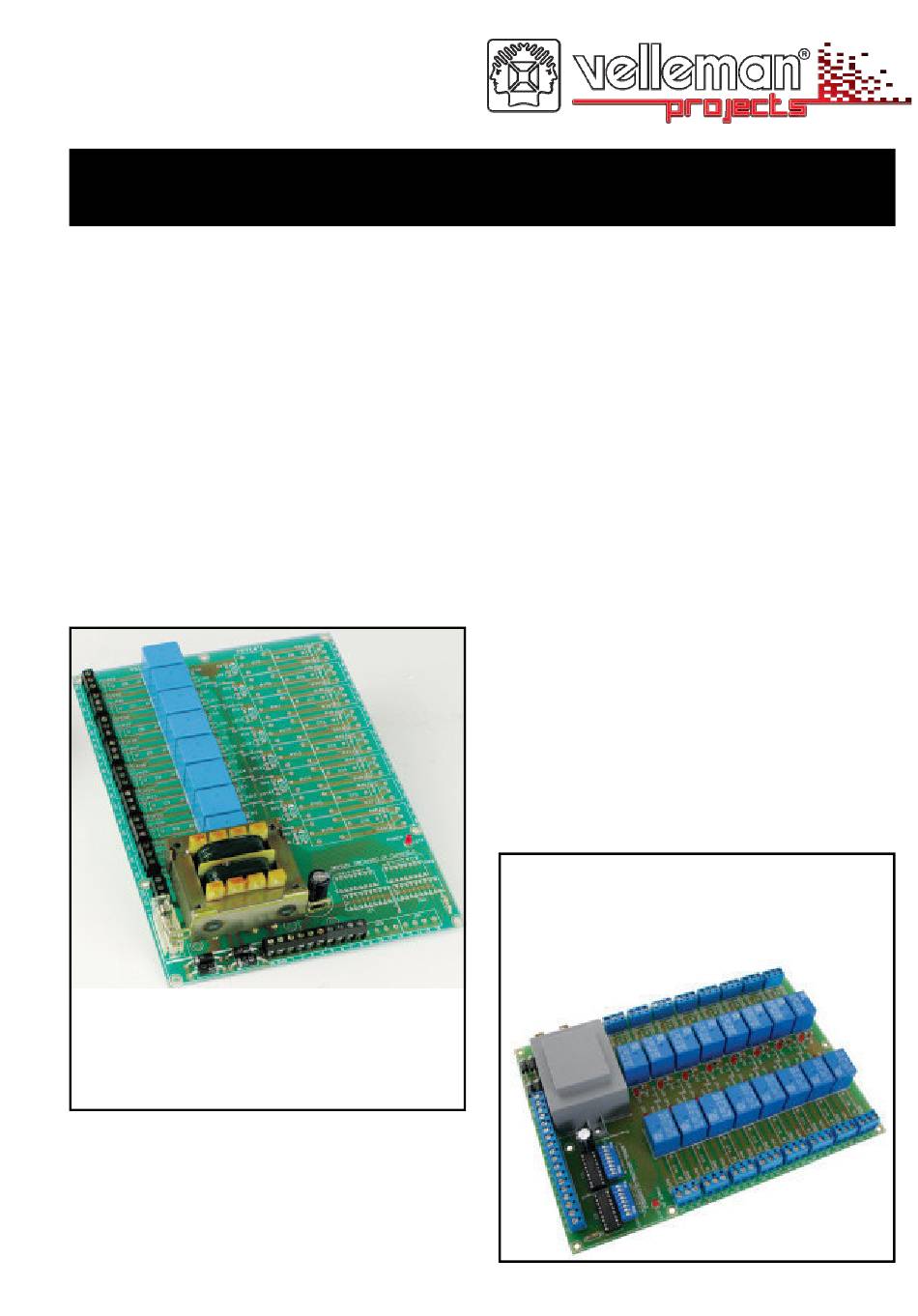

8 output relays
ILLUSTRATED ASSEMBLY MANUAL
Universal Relay Card
K6714 & K6714 - 16
Specifications :
Power supply: 230 or 125VAC max.
12VA.
 Output voltage: 12V/250mA.
 Relay switch-over contact : max.
5A at 220V.

Dimensions : 150 x 212mm

16 output relays
K6714-16
H6714(16)IP-ED1

Advertisement

loading
Need help?

Need help?

Do you have a question about the K6714 and is the answer not in the manual?

Questions and answers

Summary of Contents for Velleman K6714

  • Page 1 Universal Relay Card K6714 & K6714 - 16  The relays can be controlled in different ways : direct control from open-collector outputs, TTL or CMOS level or trough other kits (K6711, K8000, K8023,…)  DIP switches are included to allow manual activation of the relays in case of maintenance work.
  • Page 2 VELLEMAN NV Legen Heirweg 33 9890 Gavere Belgium Europe www.velleman.be...
  • Page 3 Assembly hints 1. Assembly (Skipping this can lead to troubles ! ) Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully. 1.1 Make sure you have the right tools:  A good quality soldering iron (25-40W) with a small tip.
  • Page 4 Assembly hints 1.3 Soldering Hints : 1- Mount the component against the PCB surface and carefully solder the leads 2- Make sure the solder joints are coneshaped and shiny 3- Trim excess leads as close as possible to the solder joint AXIAL COMPONENTS ARE TAPED IN THE COR- RECT MOUNTING SEQUENCE ! REMOVE THEM FROM THE TAPE...
  • Page 5 COLOR= 2… 5 4K7= ( 4 - 7 - 2 - B ) 4K7= ( 4 - 7 - 0 - 1 - 1 ) CODICE CODIGO CODIGO VÄRI FÄRG FARVEK FARGEK FARB COLOUR CODIFI- KLEUR COLORE KOODI SCHEMA KODE CODE CATION KODE...
  • Page 6 (Watch the position of the notch!) D... CATHODE  IC1 ... IC2 : 18P. (*)  D1..D8 : 1N4148. Attention : just for K6714-16 !  D9..D16 : 1N4148 (*)  D17..D20 : 1N5408. 6. Dip Switch Resistors (Watch the color...
  • Page 7 Construction 7. Fuseholder and fuse 9. Relay F...  F1 : 0,25A slow.  RY1...RY8 : VR15M121C  RY9...RY16 : VR15M121C (*) 8. Teminal blocks 10. Electrolytic capacitors (Watch the polarity !) C... Tree-pole screw connector :  C17 : 1000 µF/25v ...
  • Page 8 Noise suppression Noise suppression of the relay contacts “OPTIONAL !” : At the standard module K6714 as well K6714-16 have you the opportunity to noise-suppress every relay contact. First : mount the resistors to noise-suppress the normally open contact of the relay : ...
  • Page 9 K2609 and K8000. The module can of course also be used very well in other applications. OPTIONS : In its standard version the module contains 8 relays (K6714), but in the full version the module (K6714-16) contains :  16 relays.
  • Page 10 Test and connections TEST AND CONNECTIONS : Connect the phase to “0” and the Neutral to “125” or “220”, depending on the mains voltage. Normally the POWER ON LED should be lit now. In case no manual operation has been provided, you can test the relay by connecting the inputs (terminals 1 trough 16) to earth (GND) one after another.
  • Page 11 Test and connections 2. Connect the board to the 10 channel, 2 wire remote control K8023 (see Fig. 2.0) : VELLEMAN P6714'1 MANUAL SWITCHING OF CHANNELS TRAFO 14 15 FROM K8023S +Vext 12..15Vin +VTX- VELLEMAN P8023R'1 T1 C3 LD11 FIG 2.0...
  • Page 12 Tips at malfunctions Remedies in the case of malfunction cused by the relays If the relays are used to switch alternating voltage, it may be necessary to suppress them. Suppressing resistive loads (Lamp, resistor,…) : FIG. 3.1 Suppressing inductive loads (Transformer, motor,…) : FIG 3.2 When above solutions fail : In this last case an independently feeded DC-relay is used, wich is installed as...
  • Page 13 100nF / 400V 15MQ100 or 1/250A  The quantity shown only pertains to the K6714 with an 8-relay output. Double the quantity if you wish to extend your standard module to a 16-relay output.  (*) Simply double the quantity if you have the K6714-16...
  • Page 14 Schematic Diagram Schematic diagram...
  • Page 16 VELLEMAN NV Legen Heirweg 33, B-9890 GAVERE Belgium (Europe) Modifications and typographical errors reserved © Velleman Components NV - H6714(16)IP’1 - 2014 (re1.1)
