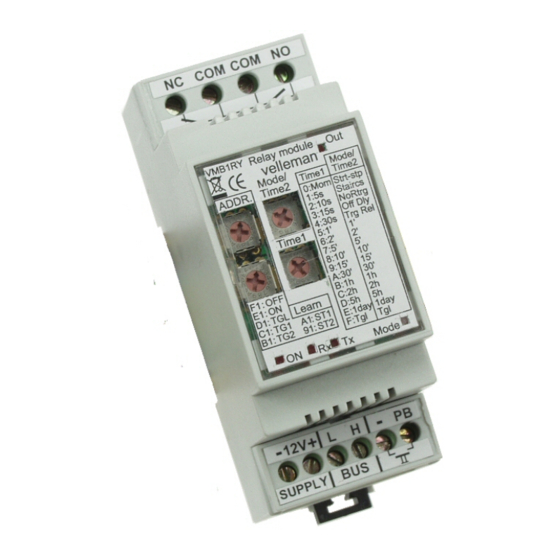

- Page 1 VMB1RY Relay Module for VELBUS system Velbus manual VMB1RY– edition 1 – rev.1.0...
-
Page 2: Table Of Contents
INDEX Features ............................3 Velbus data ............................ 4 Connection ............................ 5 Direct control with several push buttons.................. 6 Control via VELBUS system....................6 Combination of direct push button control and VELBUS control ..........7 Use ..............................8 Termination ..........................8 Addressing .......................... -
Page 3: Features
Features: ◊ Relay output: changeover contact (N.O. and N.C.) ◊ Switching capacity with a resistive load: 16A/230Vac max. ◊ Switching capacity with an inductive load: 8A/230Vac max. ◊ Suppressed relay contacts. ◊ Manual control on the module ◊ LED indicators for: •... -
Page 4: Velbus Data
VELBUS: 2-wire communication for VELBUS data and 2 wires for power. Data transfer: 16,6Kbit/s. Serial data protocol: CAN (Controller Area Network) Short-circuit proof (towards negative or positive of power) Bus error indication: 2 x short flash of the operation mode led. Self restoring after 25 seconds in case of a bus error. -
Page 5: Connection
CONNECTION To control a consumer, you can use the relay output’s normal open, normal closed or relay contact. AC POWER NC COM COM MODE TIME2 TIME1 ADDR VMB1RY If the consumer needs a 2-pole interruption (e.g. outdoor lighting, pump) or the consumption exceeds 1000W (e.g. wall outlets, electric heating, water heater), you need to use an additional 2-pole relay. -
Page 6: Direct Control With Several Push Buttons
Direct control with several push buttons : AC POWER MODE TIME2 TIME1 ADDR VMB1RY PUSH BUTTONS 12V SUPPLY Remark: To break off communication with the VELBUS system, set the address on ‘00’ so no status modifications will be reported. All learned push buttons must be deleted (see learning mode) so no instructions will be sent over the VELBUS to control the push button indication leds. -
Page 7: Combination Of Direct Push Button Control And Velbus Control
Combination of direct push button control and VELBUS control: AC POWER MODE TIME2 TIME1 ADDR VMB1RY PUSH BUTTONS TWISTED PAIR (0.5mm ) 12V SUPPLY Remark: For connection between the modules, use twisted pair cable (ex. EIB 2x2x0.8mm2, UTP 8x0.51mm - CAT5 or other). -
Page 8: Use
Remove the lid from the dimmer module using a small screwdriver and modify the configuration. Normal closed contact Normal open contact NC COM COM Relay-on indication LED ADDR MODE TIME2 Control mode setting Address setting Time setting TIME1 Manual control Forwarding LED TERM Power LED... -
Page 9: Addressing
Addressing: Enter a unique address (from ‘00’ to ‘FE’ except for ‘81’, ‘91’, ‘A1’, ‘B1’, ‘C1’, ‘D1’, ‘E1’, ‘F1’ and ‘FF’) for each module through the ‘ADDR’ rotating switches. These addresses can be used to learn the push buttons. In case of a modification of the addresses, the lamp will be switched off and all LEDs of the corresponding control push buttons will be turned off. - Page 10 2-way timer (time 2 = 5min) A short press will switch on the relay during the set time (see ‘TIME1’ rotary switch) . A long press will switch on the relay for 5 minutes. Operating the push button when the relay is on will immediately switch off the relay.
-
Page 11: Operation
Operation: The relay module can be operated in different ways: • Using push buttons connected to the direct push button input: activating the set mode on the module. ® • Using push buttons connected to the Velbus through a push button interface or control module: switching on the relay. - Page 12 Velbus manual VMB1RY– edition 1 – rev.1.0...
