Operating Instructions & Installation Guide
SW5-1

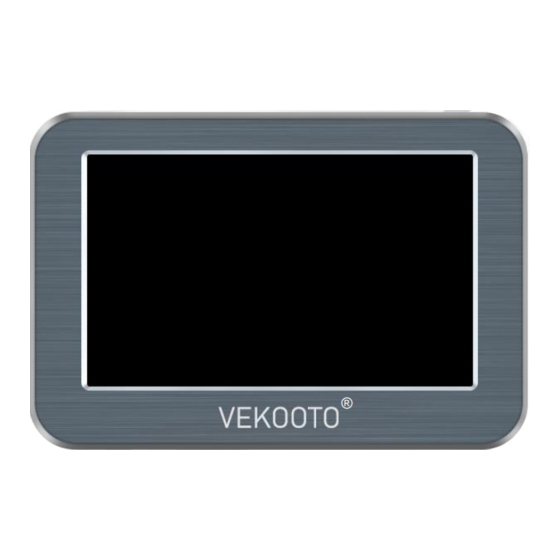

Portable Backup Camera with 5"Monitor
Built-in battery and solar panel
USER MANUAL
Thank You for Buying VEKOOTO Product.
Read This User Manual Before Installing and Using It.
Pls keep this instruction or write down our email VEKOOTO@OUTLOOK.COM
So you can find us once you have any question.
1
Advertisement
Related Manuals for VEKOOTO SW5-1
Summary of Contents for VEKOOTO SW5-1
- Page 1 Built-in battery and solar panel USER MANUAL Thank You for Buying VEKOOTO Product. Read This User Manual Before Installing and Using It. Pls keep this instruction or write down our email VEKOOTO@OUTLOOK.COM So you can find us once you have any question.
- Page 2 VEKOOTO@outlook.com Foreword Thank you for purchasing committed to providing high-quality products and bringing a good experience to our customers. It's our great honor to have your trust! This manual includes a product installation guide and system operating instructions. To obtain the best performance please read the manual carefully before installing and keep the manual properly.
-
Page 3: Monitor Introduction
VEKOOTO@outlook.com 1. Monitor introduction. Users can operate the monitor by the three buttons on the left rear of the monitor. ① Up / down & Switch channel. ② Enter setup menu / Long press 3s to return to previous level. - Page 4 VEKOOTO@outlook.com Monitor Size 5 inches Resolution HD 800*480 Contrast ratio 500:1 Brightness 500 cd/m² Viewing Angle U:80, D:80, R/L:80 Power input DC12-24v Maximum power Max 5W Support channel Support CH2/ CH1/ split screen at the same time Mirroring Support...
-
Page 5: Camera Features
VEKOOTO@outlook.com 2. Camera Features: !!! READ ME ！ ！ ！ The blue battery indicator will often light up when the camera is enabled. When charging, the blue power indicator will flash, and the power will stop flashing. When the solar panel of the camera is exposed to... - Page 6 VEKOOTO@outlook.com camera, please cover the solar panel to check whether you have turned on or off the camera. 1920×1080 （ 3 Million ） Resolution Image Sensor AHD 1/2.9 inch Viewing Angle 150 degrees Transmission Bandwidth 20Mbps （ Max ） Battery Capacity 9600mA Yes ，...
- Page 7 VEKOOTO@outlook.com Battery Charging Time USB 5V 2A / 6H Working Time Daytime/18H Night Vision/13H Camera Adjustable 0-150 degree Angle Frequency 2400-2483.5MHZ ON/OFF Mode Press to ON/OFF Installation Mode Magnet base adsorption installation Night Vision Support IR 50dB Waterproof level IP68...
- Page 8 VEKOOTO@outlook.com 3. Package List. 5-inch Monitor Suction cup bracket Camera Camera antenna Camera extended antenna Monitor antenna Power extension cable Cigarette lighter power cord...
- Page 9 VEKOOTO@outlook.com Camera Charger 4. Install Monitor Bracket. The four protrusions of the bracket are aimed at the grooves of the monitor and push up.
- Page 10 VEKOOTO@outlook.com 5. MENU FAQ. Q1: The screen shows a blue screen, no signal how to A1: First determine that the antenna of the camera and the monitor has been installed to ensure that the camera ○ is electric, press the...
