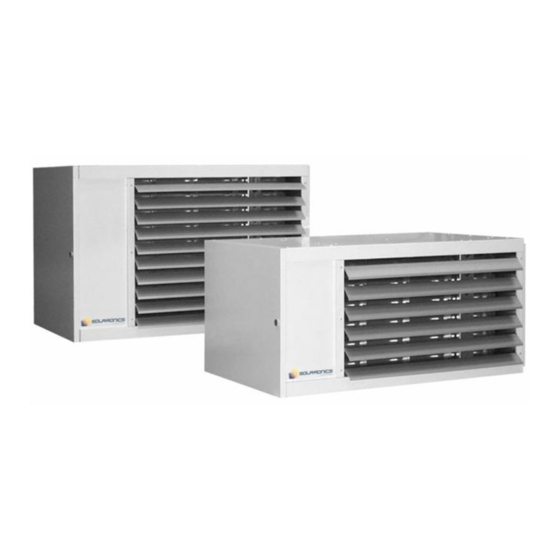

High Efficiency Warm Air Heater
MINIGAZ ECO 3
–– Technical instructions ––
MH 25/35/45/60/80 ECO3
MV 35/45/60/80 ECO3
MC 35/45/60/80 ECO3
Atmospheric Burner 2 stages
Without condensation
TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023
SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX
Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22
Web site : www.solaronics.com
Page 1 from 54
Advertisement
Table of Contents
Related Manuals for Solaronics MINIGAZ ECO 3
Summary of Contents for Solaronics MINIGAZ ECO 3
- Page 1 Without condensation TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com...
-
Page 2: Table Of Contents
Summary of existing flue kits ........................28 TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... - Page 3 A smell of gas, the right reflexes .............................. 53 TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com...
-
Page 4: Introduction
Give all manuals to the user. TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 5: User's Liability
TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 6: Caution
In rooms with domestic use. TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 7: Description
TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 8: Switching Off
TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 9: Technical Characteristics
No condensate TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 10: Mh Eco3 Dimensions
MH ECO3 TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 11: Mv Eco3 Model
No condensate TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 12: Mv Eco3 Dimensions
10 m TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 13: Mc Eco3 Model
No condensate TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 14: Pressure / Air Flow Ratio For Mc Eco 3
3 750 79.4 TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... - Page 15 6 000 79.0 TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com...
-
Page 16: Mc Eco3 Dimensions
‘’ Weight TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 17: Variable Speed Driver
TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... - Page 18 Current limit level (%) TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com...
-
Page 19: Fixing The Devices
3500343 3500344 TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 20: Smr Rotating Wall Bracket
8 x Star washers M12 TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 21: Smf Fixed Wall Bracket
Screws Kit TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 22: Ipn Fixing Kit
MV 25 ECO3 to MV 80 ECO3. TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 23: Electrical Wiring
Note : The neutral wire coming out of the power cable of the devices can be blue or grey. TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 24: Electrical Connection Between Internal Components
6.2. Electrical connection between internal components TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 25: Pilot Wire Principle
The air heaters cannot be controlled by a traditional thermostat(with the dry contact). Only the specific « pilot wire » thermostats supplied by Solaronics can control the air heaters. The purpose of the pilot wire is to limit the number of wires to be connected. -
Page 26: Connection Of Standard Controllers
Note : The neutral wire coming out of the power cable of the devices can be blue or grey. TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 27: Tm2 Evo V2 Touchscreen Multi Setting Thermostat
The neutral wire coming out of the power cable of the devices can be blue or grey. TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 28: Connections Flue Pipes
Not available TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 29: B22 Kit Connection
The composition of the kit is given as an indication and there may be differences. TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 30: Pressure Drop Calculation
The permissible flue gas length for the air heater is respected. TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 31: C32 Kit Connection
The composition of the kit is given as an indication and there may be differences. TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 32: Pressure Drop Calculation
It is essential to shorten the length of the flue to achieve a pressure drop below 350 Pa. TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 33: C12 Kit Connection
The composition of the kit is given as an indication and there may be differences. TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 34: Pressure Drop Calculation
The permissible flue length of the unit is respected. TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 35: Gas Connection
TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 36: Gas Circuit
TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 37: Gas Manifold Adjustment Table
Cross-headed adjustment screw P min (screw in for more pressure) TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... - Page 38 WARNING This value cannot be changed without the express consent of Solaronics Chauffage. TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com...
- Page 39 This value cannot be changed without the express consent of Solaronics Chauffage. TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com...
-
Page 40: Commissioning And Adjustment Of The Control Setpoints
See paragraph "9.3 Burner combustion adjustment". TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 41: Use Of The Control Board
Use the ▲ key to move to the next display TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... - Page 42 ▼ and ▲ keys and confirm with "OK". TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com...
- Page 43 For setting, see paragraph "10.3 gas heater settings via the control panel". TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com...
-
Page 44: Gas Heater Settings Via The Control Board
Use the ▲ key to move to the next display TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... - Page 45 For the functionality and setting of the following parameters, see section "9.3. Burner combustion settings". TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com...
-
Page 46: Maintenance
Carry out an annual combustion check. TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 47: Spare Parts
17 2-stage gas valve 3510023 TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 48: Mc Eco 3 Model
17 2-stage gas valve 3510023 TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 49: Troubleshooting
TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... - Page 50 TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com...
-
Page 51: List Of General Problems
Check the wiring. TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... -
Page 52: Warranty
The appliances must be installed by qualified professionals, in accordance with the regulations in force, the state of the art and the instructions given in our installation manuals. SOLARONICS CHAUFFAGE offers a 1-year parts and "factory" labour warranty valid from the date of delivery of the appliances. -
Page 53: Annex
The number of the emergency services (fire brigade) is : ………………………………… TECHNICAL INSTRUCTIONS – Warm air Heaters ECO3 – NT20005I-GB – 07/11/2023 SOLARONICS Chauffage SAS. ZI n°3, 78 rue du Kemmel – CS 20302 – 59429 ARMENTIERES CEDEX Phone : 03.20.10.59.59 - Fax : 03.20.35.57.22 Web site : www.solaronics.com... - Page 54 ZI n°3, 78 Kemmel Street – CS 20302 Head 59429 ARMENTIÈRES Cedex Office www.solaronics.com Phone. : +33(0) 3 20 10 59 59 Fax : +33(0) 3 20 35 57 22...
