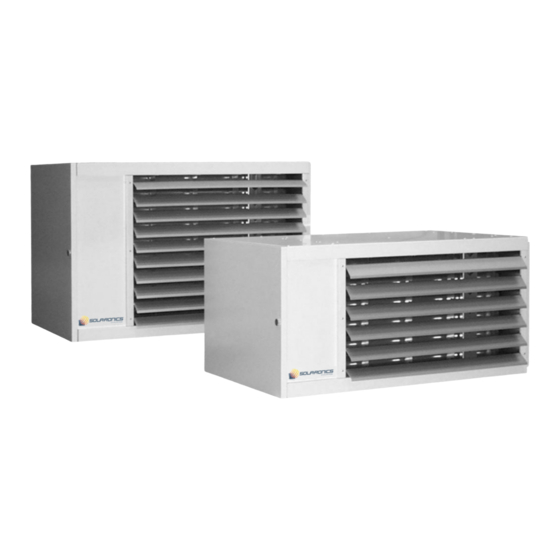

MINIGAZ Eco
GAS AIR HEATERS
MH 16/21/28/35/50/60/80 Eco
MC 21/28/35/50/60/80 Eco
MV 35/50/60/80 Eco
Axial or centrifugal fan
Flue type : room air dependent / independent
Regulation and control by pilot wire
Electronic ignition and flame control by ionization
Multi-torch burner
Furnace guaranteed 5 years
SOLARONICS Chauffage
178 rue du Kemmel - B.P. 129 - 59428 ARMENTIERES CEDEX FRANCE - Tel: +33.3.20.10.59.59 - Fax: +33.3.20.35.57.22
INSTRUCTIONS— GAS AIR HEATER - MINIGAZ Eco MH Eco, MC Eco, MV Eco – NT09004I– GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINIGAZ Eco Series and is the answer not in the manual?

Questions and answers

Related Manuals for Solaronics MINIGAZ Eco Series

Summary of Contents for Solaronics MINIGAZ Eco Series

  • Page 1 Multi-torch burner Furnace guaranteed 5 years SOLARONICS Chauffage 178 rue du Kemmel - B.P. 129 - 59428 ARMENTIERES CEDEX FRANCE - Tel: +33.3.20.10.59.59 - Fax: +33.3.20.35.57.22 INSTRUCTIONS— GAS AIR HEATER - MINIGAZ Eco MH Eco, MC Eco, MV Eco – NT09004I– GB...

  • Page 2: Table Of Contents

    CONTENTS N° de chapitre Chapitres Pages GENERAL RECOMMENDATIONS Devices description - Operation Use instructions Operation Safety Switch-off Warranty TECHNICAL FEATURES OF SUSPENDED GAS AIR HEATERS Minigaz Eco Technical features of axial suspended gas air heaters MH Eco Technical features of vertical suspended gas air heaters MV Eco Technical features of centrifugal suspended gas air heaters MC Eco Fan box assembly for MC Eco models GAS AIR HEATERS INSTALLATION...

  • Page 3: General Recommendations

    2°) To give the user these instructions: SOLARONICS Chauffage, with the EC marking notifying organization, reserves the right to update these instructions. Only the instructions provided with the device can be considered as contractual. Do carefully keep them close to the device.

  • Page 4: Safety

    The devices must be installed by skilled professionals, in conformity with the rules in force, the rule book and the recommen dations mentioned on our assembly instructions). SOLARONICS CHAUFFAGE offers 1 year-warranty on parts and « manufacture » manpower from the devices delivery (5 years on the exchanger).

  • Page 5: Technical Features Of Suspended Gas Air Heaters Minigaz Eco

    2- TECHNICAL FEATURES OF MINIGAZ Evolution Eco GAS AIR HEATERS MH Eco type The MH Eco gas air heaters are equipped with an axial fan. That model has been designed for direct blo- wing and are equipped with a vertical and hori- zontal outlet grid.

  • Page 6: Technical Features Of Vertical Suspended Gas Air Heaters Mv Eco

    MV Eco models Vertical Gas Air Heater MV Eco is equipped with an axial fan. It has been designed for a vertical blowing and are equipped with a simple deflexion grid or circular grid (picture), depending on models. It is particularly well adapted for combining heating and reducing air stratification.
  • Page 7 Size features for MV Eco models Type MV35 Eco MV50 Eco MV60 Eco MV80 Eco 1 040 1 040 1 120 1 120 1 075 134.5 149.5 149.5 ——– ——– Ø F 80/125 Ø Air Ø G (gaz) 1/2’’ 1/2’’ 3/4’’...

  • Page 8: Technical Features Of Centrifugal Suspended Gas Air Heaters Mc Eco

    MC Eco Models MC Eco Gas air heater is equipped with a cen- trifugal fan and standard features include an inlet box. It has been designed for direct blowing or to be connected to a duct. Dampers and filters can be added to the inlet box (fan box).
  • Page 9 Fan characteristics: 1 400 1 600 1 800 2 000 2 200 2 400 2 600 2 800 3 000 3 400 3 600 3 800 4 000 4 200 4 400 4 600 4 800 5 000 5 200 5 400 5 600 Size features of MC Eco air heaters and its optional accessories :...

  • Page 10: Gas Air Heaters Installation

    3– GAS AIR HEATERS INSTALLATION (see instructions provided with the brackets) 3-1 Advice for installation In order to secure the operation of the appliance, please respect the hereafter indications: - A minimum distance of 430 mm between the wall and the back of the appliance shall be res- pected.

  • Page 11: Smr Rotating Brackets For Mh16 Eco To Mh50 Eco Type

    3-3 SMR rotating brackets for MH16 Eco to MH50 Eco type The SMR kit (code 3500070 or 3500048) is a wall-mounted rotating bracket for gas air heaters (MH16 Eco to MH50 Eco type *) which can be completed by the KIPN kit (code 3500047) if mounted on a steel construc- tion frame.

  • Page 12: Smf Fixed Wall Brackets For Mh16 Eco To Mh50 Eco Type

    3-4 SMF fixed wall brackets for MH16 Eco to MH50 Eco type The SMF kit (code 3500071) is a wall-mounted fix bracket for gas air heaters (MH16 Eco to MH50 Eco type) which can be completed by the KIPN1 kit (code 3500074) if mounted on a steel construction frame. Top view Back view...

  • Page 13: Smf Fixed Wall Brackets For Mh60 Eco And Mh80 Eco Type

    3-5 SMF fixed wall brackets for MH60 Eco and MH80 Eco type The SMF kit (code 3500049) is a wall-mounted fix bracket for gas air heaters (MH60 Eco and MH80 Eco types) Mounting: See instructions provided with brackets. Caution: Check the hanging device strength—Fix the unit over the brackets MH60 Eco MH80 Eco Connection...

  • Page 14: Wiring Diagrams

    4– WIRING DIAGRAMS 4-1 Wiring diagram of centrifugal gas air heaters MC60 Eco - MC80 Eco 1 3 2 Phase / Marron Phase / brown RFP5 Neutre / Bleu Neutral / blue Terre / Vert et jaune Earth / green & yellow Pilote / Noir Pilot / Black Défaut / Gris (option)

  • Page 15: Wiring Diagram Of Gas Air Heaters

    4-2 Wiring diagram of gas air heaters (Eco type) 1 3 2 RFP5 Phase / brown Neutral / blue Earth / green & yellow Pilot / Black Faulty signal (in option) Only for MV Eco type The modulation air thermostat bulb (Mod) is located on the fan grid for MV models and in air flow for other models Air fan By products fan RFP5...

  • Page 16: Pilot Wire Concept

    Caution! The air blowers cannot be piloted by a standard thermostat (with relay). Only the specific “pilot wire” thermostats supplied by Solaronics can pilot the air blowers. The goal of the pilot wire is to limit the number of wires to connect.

  • Page 17: Connection For Standard Controllers

    4-5 Connection for standard controllers TM1 Thermostat INSTRUCTIONS— GAS AIR HEATER - MINIGAZ Eco MH Eco, MC Eco, MV Eco– NT09004I-GB – 29/11/2017 17/29...
  • Page 18 Programmable controllers INSTRUCTIONS— GAS AIR HEATER - MINIGAZ Eco MH Eco, MC Eco, MV Eco– NT09004I-GB – 29/11/2017 18/29...

  • Page 19: Flue Connections

    5– FLUE CONNECTIONS 5-1 General points During the commissioning and maintenance, make sure that: - Air combustion inlet and by-products outlets are not blocked. - For coaxial flue assembly, check that the 2 circuits (air combustion inlet and by-products outlet) are independent and airtight ;...

  • Page 20: Connection Of Horizontal Coaxial Flue Pipe - C12 - For Mh And Mc Eco Types

    5-3 Connection of horizontal coaxial flue pipe – C12 — for MH and MC Eco types Connection of pipes has to be done horizontally. Correct assembly Incorrect assembly α = 2° Assembly of the flue pipes must be carried out using a slope opposed to the device, α = 2° minimum C12 - for MH Eco 16/21/28/35 an MC Eco 21/28/35 type MH/C Eco16/21/28/35 Combustion air is taken outside and by-products are released...

  • Page 21: Connection Of Vertical Coaxial Flue Pipe - C32 - For Mh And Mc Eco Types

    5-4 Connection of vertical coaxial flue pipe - C32 - for MH and MC Eco ty C32 - for MH Eco 16/21/28/35 and MC Eco 21/28/35 type Combustion air is taken outside and by-products are released outside. The connection is done vertically. The KC32-80125 (ø...

  • Page 22: Connection Of Vertical Coaxial Flue Pipe - C32 - For Mv Eco Type

    5-5 Connection of vertical coaxial flue pipe - C32 - for MV Eco type C32 - for MV Eco 35 Combustion air is taken outside and by-products are released outside. The connection is done vertically. The KC32-80125V (ø 80/125) is made of a vertical coaxial terminal (1).

  • Page 23: Gas Data

    6– GAS DATA 6-1 Gas modification Gas air blowers are equipped with atmospheric burners which can be used with Natural Gas or Propane. HESE CHANGES HAVE TO BE DONE BY QUALIFIED PEOPLE For gas modification, do apply the hereafter procedure : 1–...

  • Page 24: Set Up Table For Gas Valve

    6-2 Set_up table for gas valve Settings for Natural Gas G20 Settings for Natural Gas G25 Settings for Propane G31 Gas pressure Gas pressure Gas pressure Type Injectors Injectors Injectors dia- dia- dia- phragm phragm phragm 1st stage stage Stage stage stage stage...

  • Page 25: Gas Connection

    7– GAS CONNECTION The sizing of the gas network has to be done according the length of the pipes and the type of gas that will be distributed. Pressures drop shall not exceed 5% of the network pressure. Gas connections have to be done according local regulation. 7-1 Connection of Gas air heaters Inlet pressure is 20 mbar for Natural Gas and 37 mbar for Propane.

  • Page 26: Spare Parts List

    8-2 Spare parts list M Eco 16 and M Eco 50-60-80 M Eco 21-28-35 Details of RFP board (24) Connection M Eco 16 to 35 Connection M Eco 50 to 80 Spare parts references Nº Components M 16 Eco M 21 Eco M 28 Eco M 35 Eco M 50 Eco M 60 Eco M 80 Eco By products outlet ——–...

  • Page 27: Maintenance

    9-MAINTENANCE Correct and regular use and maintenance of the Gas air heater determines rational and efficient operation, minimum gas consumption and long service life. Maintenance shall be operated when the heat exchanger is cold, gas and electrical supplies switched off. These operations have to done by qualified people.

  • Page 28: Troubleshooting

    11– FAULT FINDING In Case of problem, check that the preliminary conditions of operation are fulfilled; If the control box is faulty (burner signal lamp switched on), reset it. CAUTION: Before any electrical or mechanical maintenance operation, switch off electrical and gas supply.
  • Page 29 Seasonal space heat- Ƞ 72,3 ing energy efficiency Contact details SOLARONICS Chauffage SAS 78 rue du Kemmel – CS20302 – 59429 ARMENTIERES CEDEX France INSTRUCTIONS— GAS AIR HEATER - MINIGAZ Eco MH Eco, MC Eco, MV Eco– NT09004I-GB – 29/11/2017 29/29...
  • Page 30 Seasonal space heat- Ƞ 72,6 ing energy efficiency Contact details SOLARONICS Chauffage SAS 78 rue du Kemmel – CS20302 – 59429 ARMENTIERES CEDEX France INSTRUCTIONS— GAS AIR HEATER - MINIGAZ Eco MH Eco, MC Eco, MV Eco– NT09004I-GB – 29/11/2017 30/29...
  • Page 31 Seasonal space heat- Ƞ 72,3 ing energy efficiency Contact details SOLARONICS Chauffage SAS 78 rue du Kemmel – CS20302 – 59429 ARMENTIERES CEDEX France INSTRUCTIONS— GAS AIR HEATER - MINIGAZ Eco MH Eco, MC Eco, MV Eco– NT09004I-GB – 29/11/2017 31/29...
  • Page 32 Seasonal space heat- Ƞ 72,2 ing energy efficiency Contact details SOLARONICS Chauffage SAS 78 rue du Kemmel – CS20302 – 59429 ARMENTIERES CEDEX France INSTRUCTIONS— GAS AIR HEATER - MINIGAZ Eco MH Eco, MC Eco, MV Eco– NT09004I-GB – 29/11/2017 32/29...
  • Page 33 Seasonal space heat- Ƞ 72,8 ing energy efficiency Contact details SOLARONICS Chauffage SAS 78 rue du Kemmel – CS20302 – 59429 ARMENTIERES CEDEX France INSTRUCTIONS— GAS AIR HEATER - MINIGAZ Eco MH Eco, MC Eco, MV Eco– NT09004I-GB – 29/11/2017 33/29...
  • Page 34 Seasonal space heat- Ƞ 72,7 ing energy efficiency Contact details SOLARONICS Chauffage SAS 78 rue du Kemmel – CS20302 – 59429 ARMENTIERES CEDEX France INSTRUCTIONS— GAS AIR HEATER - MINIGAZ Eco MH Eco, MC Eco, MV Eco– NT09004I-GB – 29/11/2017 34/29...
  • Page 35 Seasonal space heat- Ƞ 72,8 ing energy efficiency Contact details SOLARONICS Chauffage SAS 78 rue du Kemmel – CS20302 – 59429 ARMENTIERES CEDEX France INSTRUCTIONS— GAS AIR HEATER - MINIGAZ Eco MH Eco, MC Eco, MV Eco– NT09004I-GB – 29/11/2017 35/29...
  • Page 36 ZI n°3, 78 rue du Kemmel – CS 20302 59429 ARMENTIÈRES Cedex – FRANCE Tél. : +33(0) 3 20 10 59 59 Fax : +33(0) 3 20 35 57 22 www.solaronics.com INSTRUCTIONS— GAS AIR HEATER - MINIGAZ Eco MH Eco, MC Eco, MV Eco– NT09004I-GB – 29/11/2017 36/29...
