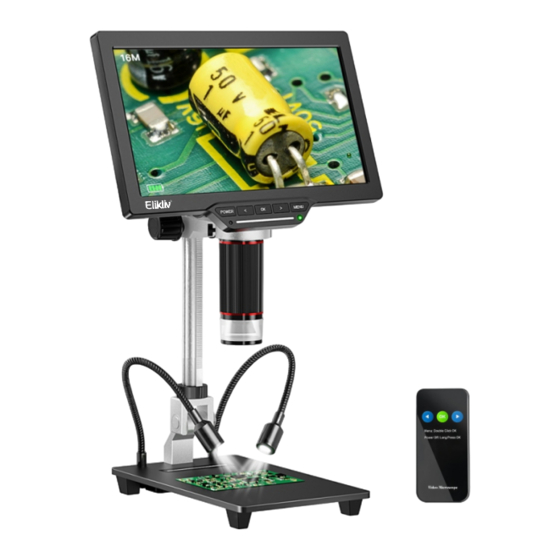

- Page 1 DigitalLCDMicroscope MODEL: DM202 UserManualV3.0 Pleasereadthisusermanualcarefullyandkeepitforfuturereference. Shouldyouencounteranyproblem,pleasecontactusbyfollowinge-mail. Mosttechnicalquestionscanbeansweredthroughourknowledgebase. Customerservice:support@elikliv.com...
-
Page 2: Table Of Contents
Contents ReadMeFirst PackingList Installation QuickStart PartsDescription DetailedOperation 1.ChargetheMicroscopeCorrectly 2.InstallAnti-reflectiveHood 3.HowtoMaketheLEDLightsWork? 4.SavePictures/VideoswithMicroSDCard 5.SwitchDifferentModes 6.Pictures/VideosPlaybackandFilesManagement 7.ConnectwithHDMITV 8.ConnectwithPC 9.WorkwithWindows 10.WorkwithMac MenuSettings 1.Image 2.Setting 3.Marking Specifications FAQ GetSupport... -
Page 3: ReadMeFirst
ReadMeFirst 1.EliklivDM202DigitalMicroscopeutilizesrechargeablebattery.It takes2-3hourstochargeandworkscontinuallyfor3-4hours.Battery onthebackofthemonitorisreplaceable. 2.Theproductcontainstinypartsandisinedible,pleaseavoidaccid- entalingestionbychildren.Also,thisproductisnotintendedfor medicaluse. 3.CleantheprotectiveUVfilterunderthelensifyounoticeadeteri- orationinimagequality.Carefullywipethemicroscopewithsoft andcleancottoncloth(suchasaneyeglasscloth)moistenedwith alcohol. 4.Monitoronthemainunitisnotshockproof,pleaseuseitwithcare. Donotdropit,pressithardortouchitwithsharpobject.Themonitor isnotwaterproof,pleasecleanitwithdryandsoftcloth.Donotpress themonitorwhenadjustingangle. 5.Eliklivoffersoneyearmanufacturewarrantyandlife-long technicalsupportforDM202digitalmicroscope.Pleasefeelfree togetintouchwithusifyouneedanyhelp.Itisrecommendedto attachphotosorvideosshowingtheproblemsinthee-mail/message forquicksolutions.Eliklivcustomerserviceusuallyrespondsin12 hoursonbusinessday. E-mail:support@elikliv.com Facebook:@EliklivMicroscope E-mail:support@elikliv.com... -
Page 4: PackingList
PackingList DM202 Microscope Base Plate Bracket DigitalLCDMicroscope MODEL: DM202 UserManualV3.0 Pleasereadthisusermanualcarefullyandkeepitforfuturereference. Shouldyouencounteranyproblem,pleasecontactusbyfollowinge-mail. Mosttechnicalquestionscanbeansweredthroughourknowledgebase. Customerser vice:support@elikliv.com HD Cable Light Shade Pleasenote:Accessoriesmaybeupdatedwithoutpriornotice, pleaserefertotheactualreceiptoftheitems. E-mail:support@elikliv.com... -
Page 5: Installation
(1) Position A It has been adjusted properly upon delivery. If not, please adjust it by the wrench. (2) Position B Step 1: Rotate the black ring clockwise one or two turns. Step 2: Screw the rod clockwise. E-mail:support@elikliv.com... - Page 6 (3) Position C Insert the monitor and tighten the two little screws. (4) Position D Adjust the monitor up and down, then tighten this screw. E-mail:support@elikliv.com...
-
Page 7: QuickStart
QuickStart 2.InsertMicroSD 1.ConnecttheUSB 3.Turnonthe card. cabletoprovide microscope. powerfor2sidelights. 1.0x 16.0x 4.Adjusttoget 5.PressLeft/Right 6.TakePhoto/Video. PressMenubutton,thenenter suitabledistance buttonfor settingtoswitchamongphoto andclearimage. magnification. mode,videomodeandfreeze mode. E-mail:support@elikliv.com... -
Page 8: PartsDescription
Infrared Receiver Power Indicator Height Adjusting Screw Main Light Touch Bar Lens Holder Side Light Lens Focusing Knob Lens Cover UV Filter Base Light Touch Bar Aluminum Base Power Button POWER Up Button Enter Down Button Function Setting Key MENU E-mail:support@elikliv.com... - Page 9 HD Output 5V Output RESET USB-CSlot 5V Input Left Button Press OK Button twice OK Button to enter menu. Press and hold OK Button to Right Button turn off the microscope. (The unit can't be turned on by remote control) E-mail:support@elikliv.com...
-
Page 10: DetailedOperation
Detailed Operation 1.Charge the Microscope Correctly (1) Method One( Recommended Step 1 Step 2 E-mail:support@elikliv.com... -
Page 11: InstallAnti-ReflectiveHood
(3)Short press Power button, current battery level displays at the left corner of monitor. Battery Capacity Level 2.Install Anti-reflective Hood. The anti-reflective hood is used to reduce the reflection of light. Take off the lens protector and UV filter, then screw the hood on the lens. E-mail:support@elikliv.com... -
Page 12: HowToMakeTheLedLightsWork
Turn on the microscope and slide the touching bar to adjust main LED lights. Sliding the touching bar from left to right to adjust brightness of the main lights. Sliding the bottom of the monitor also can adjust brightness. E-mail:support@elikliv.com -10-... - Page 13 Method 2: Connect the AC Charger as the photo below to get power from wall charger. Step 2: Turn on the microscope and slide the touching bar on the base to adjust 2 side LED lights. E-mail:support@elikliv.com -11-...
-
Page 14: SavePictures/VideosWithMicroSdCard
4.Save Pictures/Videos with Micro SD Card You can save pictures and videos on a Micro SD card to review later. Insert the Micro SD card into slot on back of the monitor. E-mail:support@elikliv.com -12-... -
Page 15: SwitchDifferentModes
Press OK button again, then press Left/Right button to choose one mode, then press OK button to confirm it. Press Menu button to get ready to record videos/capture photos. You can choose 4M/16M for photo,1080P30/720P60 for video, full/left/ up/four for freeze image mode. E-mail:support@elikliv.com -13-... - Page 16 Press OK button to start recording, press it again to stop recording. Serial number of the video is displayed at the top left corner of monitor. Duration of the recording time is displayed at the top right corner. 0000 00:00:16 E-mail:support@elikliv.com -14-...
- Page 17 Full Screen Left/Right Screen UP/Down Screen 1/4 Screen During those 4 modes, press OK button to freeze the image to make a comparison in the same monitor. Note: Photos or videos cannot be taken under the image freeze mode. E-mail:support@elikliv.com -15-...
-
Page 18: Pictures/VideosPlaybackAndFilesManagement
Press Left button for last video. Press Right button for next video. Press OK button to play/pause video. Press Menu button to enter playback menu. Choose to get back playback mode. Choose to get back microscope mode. E-mail:support@elikliv.com -16-... - Page 19 Press Left/Right button to choose one/all files. Press OK button to confirm. Files locked can’t be deleted in the microscope. (Please note the locked filed still can be deleted when deleting files in computer.) Choose RETURN ,Press OK button to get back menu bar. E-mail:support@elikliv.com -17-...
-
Page 20: ConnectWithHdmiTv
Mass Storage Device(MSDC): Can download the pictures or video files to the computer. PC Camera (UVC):Can show the real time video in the computer. Please note, operation buttons (except Power button and OK button) on the monitor and remote control don’t work during connecting with computer. E-mail:support@elikliv.com -18-... -
Page 21: WorkWithWindows
(1) Connect the microscope with computer by the USB cable and turn on the microscope. (2) Press OK button to switch UVC mode. (3) Run “Windows Camera”, it shows the image as below, camera 1.Record Videos 2.Capture Photos 3.Playback. E-mail:support@elikliv.com -19-... -
Page 22: WorkWithMac
1.Left button/Right/Menu button on the monitor and remote control can’t work when the microscope connected with computer. 2.The photos/videos only can be saved in computer (can’t not be saved in the Micros SD card in the microscope) when connected with computer. E-mail:support@elikliv.com -20-... -
Page 23: MenuSettings
Adjust white balance MANUAL---Adjust R/G/B value to set a custom white balance to meet different application. CAL—Calibrate white balance. Put a stand gray card under the lens, choose CAL to calibrate white balance to reach accurate white balance control. E-mail:support@elikliv.com -21-... - Page 24 Tips: Reduce the brightness firstly, then turn on WDR. It can decrease reflection of highlight area effectively. CONTRAST Adjust contrast SATURATION Adjust saturation SHARPNESS Adjust sharpness H MIRROR Mirror the image in a horizontal direction V FLIP Flip the image in a vertical direction E-mail:support@elikliv.com -22-...
-
Page 25: Setting
2.Setting SHORT CUT Choose photo/video/freeze mode. PHOTO Choose photo size 4M/16M. VIDEO Choose video size 1080P/720P. FREEZE Choose full/left/up/four during freeze mode. LCD BRIGHT Adjust monitor brightness. AUTO OFF Set scheduled time to turn off the device automatically. E-mail:support@elikliv.com -23-... - Page 26 LANGUAGE Select different language. DATE TIME Set date/time DEFAULT Reset all setting. FORMAT Form the micro SD card in the device. VERSION View current software version. RETURN Return menu bar. E-mail:support@elikliv.com -24-...
-
Page 27: Marking
The microscope provides 8 reference lines ,each one can be turned on/off. Line type can be set to be horizontal /vertical. Line position/width/color can be set. Please note the lines can’t be marked on the pictures or videos. RETURN Return menu bar. E-mail:support@elikliv.com -25-... -
Page 28: Specifications
Comparison of the PIP Full screen, Left and Right, Up and Down, 1/4 Grid 8 Groups (position, color adjustable) English/Chinese/Japanese/Russian/French/ Language Germany/Portuguese/Spanish 6 white-light LEDs integrated in the lens and Light Source 2 Side LEDs Warranty 1 Year Warranty E-mail:support@elikliv.com -26-... -
Page 29: Faq
If it still can’t work ,please connect the microscope with computer and format the Micro SD card in computer. 6,Why HDMI device can’t display image? Please make sure the microscope is turned on and the HDMI device is switched on HDMI input mode. E-mail:support@elikliv.com -27-... - Page 30 Note : Because the two side lights also gets power to work from the battery, which consumes quickly for method 1,please charge the microscope fully before use. Method 2: Connect the AC Charger as the photo below to get power from wall charger. E-mail:support@elikliv.com -28-...
-
Page 31: GetSupport
However, content of this manual and/or product specifications are subject to change without prior notice and with no direct or indirect liability on Elikliv Electronics’ part concerning such change. Copyright and registered trademark Elikliv, Elikliv are registered trademarks.
