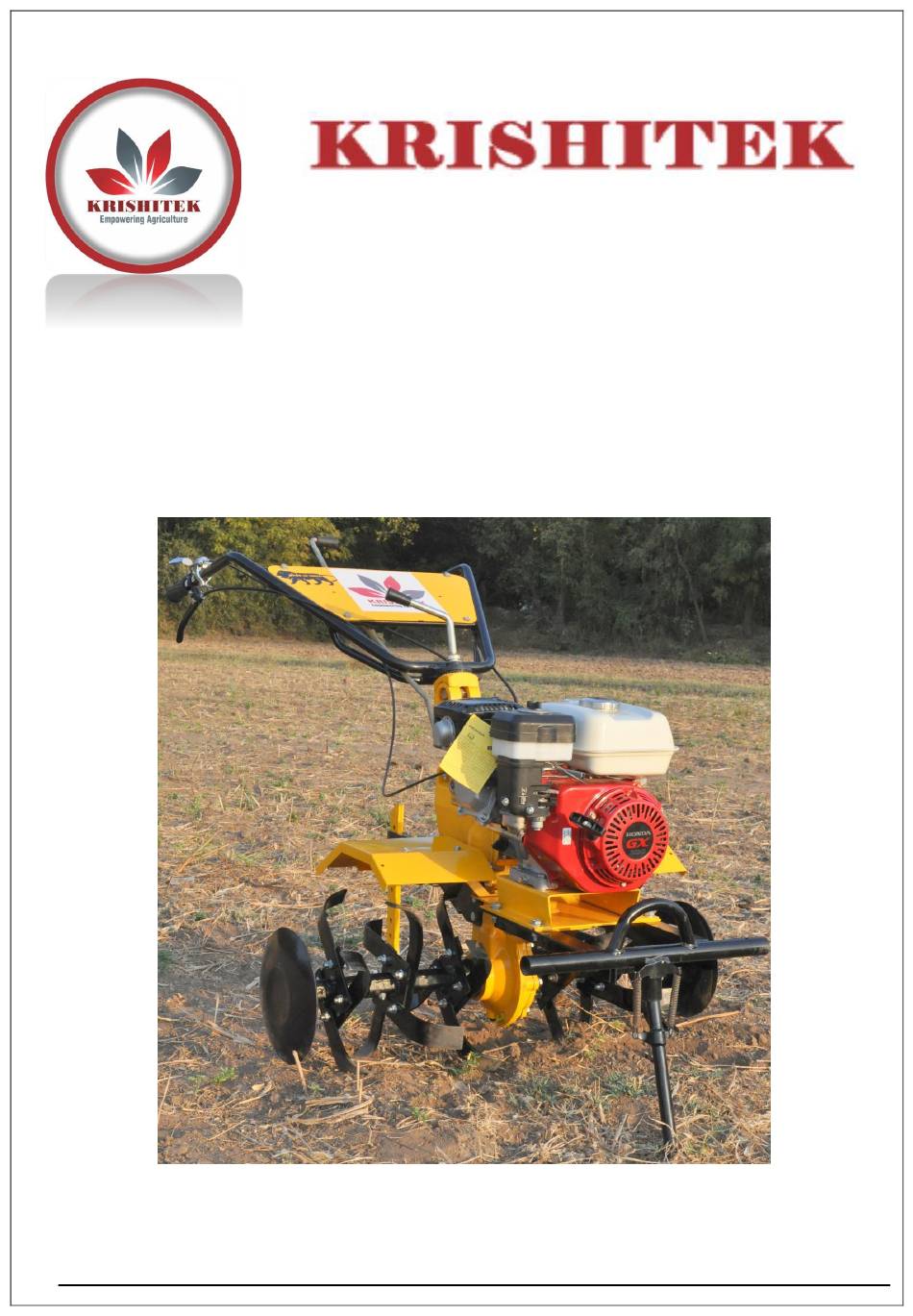

- Page 1 INDUSTRIES PVT.LTD POWER WEEDER/MINI TILLER Model: POWERTEK 5.5WP USER MANUAL...
- Page 2 BEFORE USE YOU MUST READ THIS MANUAL COMPLETELY – RETAIN FOR FUTURE US Rev0...
- Page 3 BEFORE STARTING MACHINE The Engine is shipped from the factory without oil. Fill with SAE 15W/40, 10W30, Grade SJ lubricating oil for Petrol engines, Check oil level before starting engine. If you start engine without oil, The engine will be damaged beyond repair and will not be covered in warranty. ...
- Page 4 BEFORE STARTING MACHINE The Gearbox is shipped from the factory without oil. Fill with SAE 90 or higher grade lubricating oil for gearboxes, Check oil level before starting engine. If you start gearbox without oil, The Gearbox will be damaged beyond repair and will not be covered in warranty. ...
- Page 5 CONTENTS Page Section Description CARBON MONOXIDE POISONING – FUEL WARNING OIL WARNING 3- 4 1. SAFETY 6 - 8 2. MACHINE PARTS 3. ASSEMBLY PROCEDURE 11 - 15 4. OPERATING PROCEDURES 16 - 21 5. CONTACT DETAILS Rev0...
- Page 6 1. SAFETY. The Operator of the machine is responsible for and has a duty of taking care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Please note the following safety points ...
- Page 7 Carbon Monoxide. Carbon monoxide is a colourless and odourless gas, inhaling this gas can cause death as well as serious long term health problems such as brain damage. The symptoms of carbon monoxide poisoning can include the following; Headaches, dizziness, Nausea, Breathlessness, Collapsing or loss of consciousness.
- Page 8 Machine safety. Continual and regular users should monitor closely the condition of their hands with regard to White finger disease or carpal tunnel syndrome. If you think you have been affected seek medical advice immediately. DO NOT modify the unit in any way. Only use the machine for the job for which it is intended.
- Page 9 If the machine comes into contact with big blocks, root or vine, The equipment will spring upwards Or leap forwards. Stop machine and remove HT lead before removing any blockages Avoid pulling the weeder whilst the engine is running. ...
- Page 10 2. MACHINE PARTS Parts. Clutch lever Fuel cap Reverse gear lever Exhaust Handle Handle adjustment lever Drag bar Gear shifter Blade cover Accelerator lever Tiller Blades Parking stand Engine Trimming disc Recoil starter Rev0...
- Page 11 3. ASSEMBLY PROCEDURE Remove machine from packaging. Dispose packaging in accordance with local recycling regulations. (Check that the machine is undamaged and in working order before disposing of packaging – We recommend that you retain packaging to use should you wish to return the machine for servicing). ...
- Page 12 Parking stand assembly. As shown in picture insert stand pipe assembly into chassis bracket and match the hole of Standpipe A with the hole of chassis bracket B. Insert the joint pin in the hole; insert R-clip on the opposite side as shown in the picture. ...
- Page 13 Drag bar assembly. Insert drag bar in pull bracket and fit with the help of mounting pin, R-clip & plane washer as shown in picture A & B. (adjust height of the drag bar as it can penetrate 3 to 4 inches deep in the soil during machine operation.) ...
- Page 14 Gear shifter assembly. As shown in picture insert gear shifting bar through the hole of steering pipe bracket. Assemble gear shifting bar to the shifting lever with the help of plastic locking bush & R-clip. Rotor Assembly. ...
- Page 15 Mudguard assembly. Assemble right & left guard on guard mounting angle at front & rear side as shown in the picture with the help of hex flange bolt M6 x 1 x 16 & hex flange nut M6 x 1. ...
- Page 16 4. OPERATING PROCEDURES Always stop the engine before adding fuel, water or making any adjustments to the machine. Never put feet or hands near the weeder blade especially when machine is running. Before weeding, remove all foreign objects from the work area, which may cause injury or damage.
- Page 17 Starting the engine. Pull Choke Valve Fuel Supply on/off valve On-Off Switch Push the accelerator lever slightly. If machine does not start then push the accelerator lever once fully. Firstly move fuel supply lever at on position. ...
- Page 18 Drag bar adjustment. Pull R-shaped clip & connecting pin outwards, glide the resistance bar to the depth needed, and Reinsert the connecting pin & R shaped clip. The desired weeding depth can be achieved by pushing the bar into the soils at different levels.
- Page 19 Clutch Lever adjustment Clutch lever can be adjusted with the help of screw as shown in the picture. If the machine or PTO shaft will not stop after pressing clutch lever move screw upward with the help of spanner to adjust lever as shown In the picture.
- Page 20 Gear shift. Gear can shift with the help of the gear shifter. 1 gear engagement can be achieved by pulling the gear shifter in backward direction from neutral position. 2 gear engagement can be achieved by pushing the gear shifter in a forward direction from neutral position as shown in the picture.
- Page 21 Normal operating angle. 6” to 8” Always wear correct PPE when using this machine. Recommended PPE but not limited too. For normal operating angle push the handles downwards, So that the front part of the machine Rise 6 to 8". ...
- Page 22 Notes Rev0...
- Page 23 Krishitek Industries Pvt.Ltd. Plot No.40, Prime Industrial Park, Santej, Ta-Kalol, Di-Gandhinagar Gujarat, India, Pin-382721 Contact No.:- 09925012936, Email :- info@krishitek.com www.krishitek.com Rev0...
