Bison SHCLKBKTBB Instruction Manual

—— Instruction Manual ——
BACKBOARD MOUNT SHOT CLOCK BRACKET
P A R T S L I S T
Item Qty Description
A 2 Shot Clock Bracket
B 2 Adhesive Drill Template
C 1 Center Punch
D 4 5/16" x 1" Hex Bolt - FT1391
E 4 5/16" x 2" Hex Bolt - FT1415
Inspect all contents prior to installation. Report any missing or damaged parts to dealer immediately.
¨
Carefully read all instructions before proceeding.
¨
Save this instructions in the event that the manufacturer must be contacted in the future.
¨
This bracket is intended for use only with the Bison SHCLK200 Wireless Shot Clock Systems and will
fit most manufacturer's 72" wide rectangular glass backboard with only drilling of the top frame. In
limited cases additional field modification may be required.
Installation will require a ladder or lift. Always take proper precautions when working at heights.
1. Using a tape measure mark the center of the 72"
wide backboard with a marker. This should be 36"
from each end.

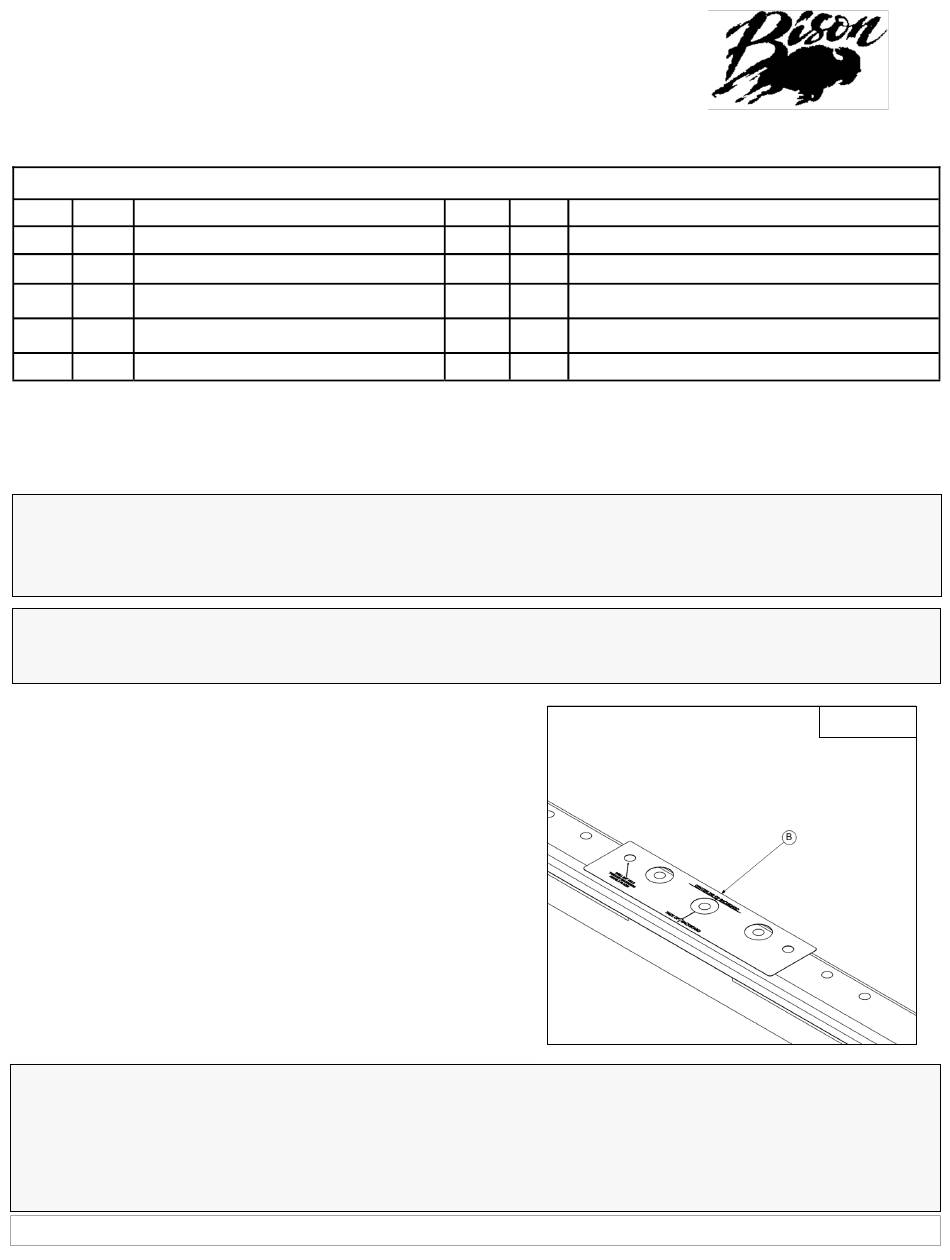

2. Install the Adhesive Drill Template (B) with the front
of the template flush with the front of the
backboard's top frame and centered on the centerline
of the backboard marked in #1 above. See Figure 1.
3. Using the Center Punch (C) provided and a hammer
carefully punch a locating mark in the center of the 2
dots on the Adhesive Drill Template (B) to help
locate the holes to be drilled.
Different backboards have different styles of frames including aluminum extrusion steel tubing and
others. Some backboards have additional framework installed to allow mounting rectangular glass
backboards to existing fan shaped support structures. Different length bolts have been provided to
allow mounting to any of the known backboard designs. Installer may need to improvise in the field if
encountering different circumstances.
Implementation Date: 9/6/23
SHCLKBKTBB
Rev: 3. N.J.C File: \Pub\Instructions\Backboards\SHCLKBKTBB.pub
Item Qty Description
F 4 5/16" x 3" Hex Bolt - FT1450
G 4 5/16" Lock Washer - FT1940
H 4 5/16" Hex Nut - FT1060
I 12 8" Black Zip Tie - FT2306
J 2 Shot Clock (Order Separately)
NOTE:
WARNING:
NOTE:
1
Customer Service
(800) 247-7668
FIGURE 1
Ref#: 950518 L.M.
