Summary of Contents for DAYGAS DSR Series

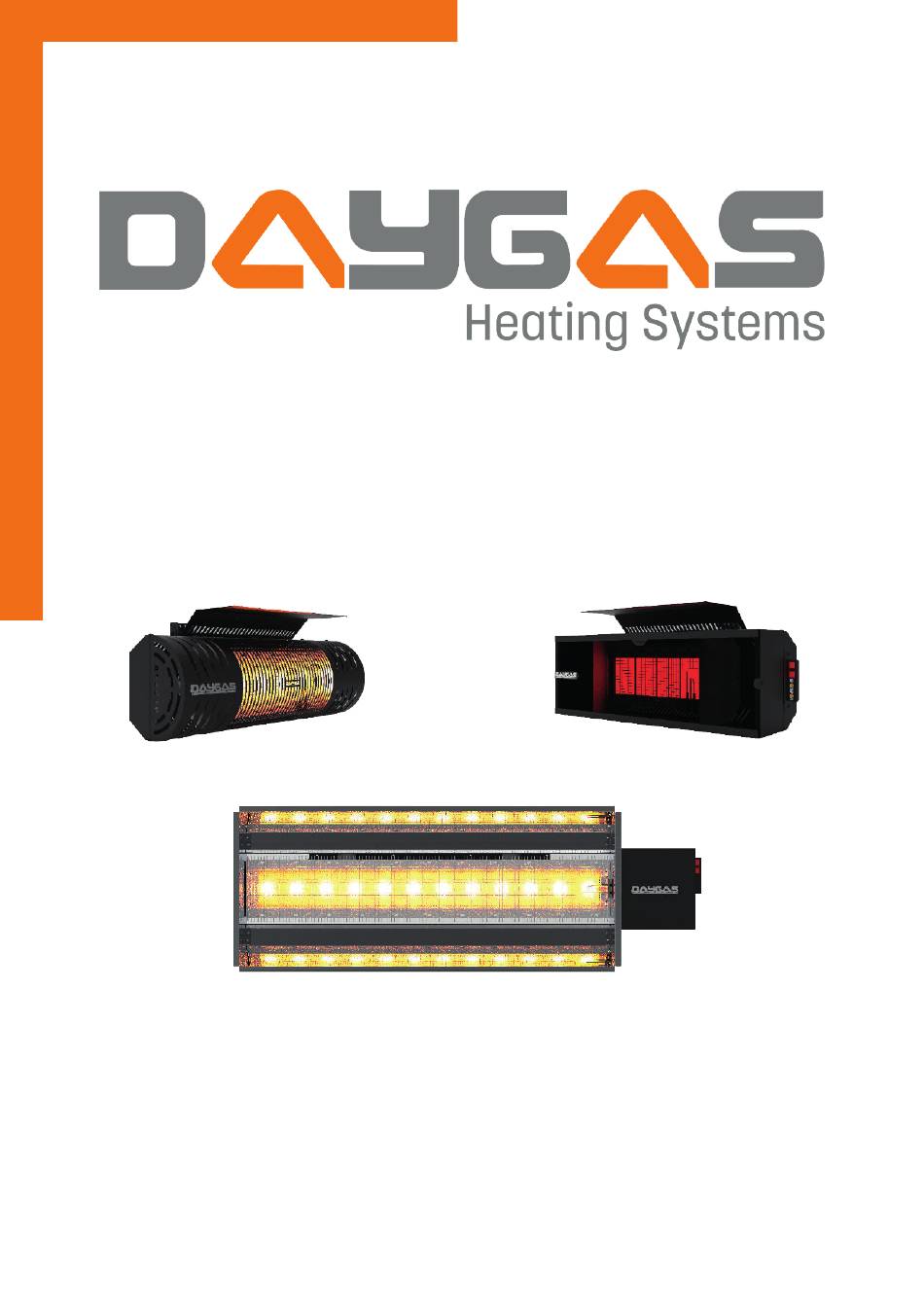

- Page 1 DSR SERIES GAS OPERATED RADIANT HEATERS USER AND INSTALLATION MANUAL MANUFACTURER Daygas Heating Systems İnş. Tah. Ltd. Sti. Firuzköy Bulvarı No: 206, 34325 Avcilar / Istanbul 0 (850) 532 91 53 - 0 (212) 423 30 44 Avcilar VD. - 2710796836...
-
Page 2: Table Of Contents
..............DSR Industrial Assembly Steps ..................DSR Industrial Gas and Electric Connection ..............Required Conditions for Safe Operation and Connection of DSR Series Devices Commissioning Procedure & Technical Maintenance ..........20 - 21 List of Required Activities Performed During Maintenance ........ -
Page 3: Entry
Introduction Daygas heat systems were put in place in 2014 by young entrepreneurs in Istanbul and started producing gas heaters in open and closed areas. Since the Daygas organization, it has established unconditional customer satisfaction. Daygas brings to final consumers efficient, economical, quality and functional products that enhance innovation and R&D work, saving energy in the heating... -
Page 4: Dsr Series Purpose & Usage Areas
Winter gardens and terraces » Military areas DSR series heating systems can only be combined with local and general exhaust ventilation systems. It should be used in equipped rooms. When used outdoors, the device must be protected from precipitation and wind. -
Page 5: Safety Rules
In areas where it is not suitable, the grounding line must be drawn separately. The device should never be operated in areas where the grounding line is not properly connected to the device. www.daygas.eu... -
Page 6: Dsr Series Main Technical Features
CERAMIC TILES SLIDE FLEX GAS VALVE C14 SOCKET SPARK PLUG ELECTRODE BOILER LIGHTER The technical specifications of the DSRs are given on page 7, and the specifica- tions for the gas valve and ignition electrode are given on page 10. www.daygas.eu... -
Page 7: Dsr Premium & Lcd Technical Information
21,25 25,05 42,05 210-450 DSR 25 LCD 2,38 1,76 270 1505 225 38,05 40,06 25,05 46,05 200-450 Elektrical Connection:230-240VAC 50-60Hz +/-%15 Working Pressure: NG 21-55 mbar LPG 32-55 mbar Electricity Consumption: 10,3 w/h Gas Connection: G3/4’’ Stage: 2 / 5 www.daygas.eu... -
Page 8: Gas Valve & Ignition Electrode Technical Specifications
Waiting time for the ignition system. Second Response time of the flame control system. Second Distance between spark plug electrodes. mm 4 ± 1 Precision of combustion control automation. µA Ambient temperature. °C -15...+60 Mounting position. At the bottom of the boiler. Weight. kg 0,15 www.daygas.eu... -
Page 9: Main Board Connection Diagram & Dsr Series Design And Working Principle
GROUND LIGHTERING NEUTRAL - PHASE HOUSE DSR Series Design and Working Principle DSR consists of one or two burners with mixing pipes in their housings. Devices consisting of two burners are 38 KW and above devices. The mixing tube is connected to the burner body by a connecting tube. -
Page 10: Gas Valve & Gas Valve Connection Requirements
Gas Outlet Fig. 1 Gas Valve Connection Requirements Installation of valve block should be done by Daygas Authorized Service. » Before connecting the valve block to the gas pipeline, the gas pipeline must be » cleaned and must be degassed. -
Page 11: Gas Valve Adjustment Procedure & Dsr Series Parts
After the gas pressure adjustment is made, disconnect the manometer from the nipple. Be sure to tighten the screw inside the nipple well. » After tightening the screw, check the tightness with a soapy solution. » DSR SERIES PARTS Front panel Motherboard label Injector Back panel Sheath... -
Page 12: Ignition Electrode
The distance between the spark plug electrode and the ground electrode should be 4 ± 1 mm. The distance between the spark plug electrodes and the ceramic tiles should be 10 ± 2 mm. SOIL FLAME ELECTRODE SENSOR HEAT RESISTANT, FIREPROOF COVER SPARK PLUG ELECTRODE www.daygas.eu... -
Page 13: Dsr Lcd & Premium Assembly Steps - Step 1
Device extension and fixing feet. (Supplied with the device.) Fixing pins. (For part number 2) (Supplied with the device.) Fixing pins. (For part number 1) (Supplied with the device.) NOTE: Fixing pins numbered 4 depend on the floor and material to be mounted. should be selected. www.daygas.eu... -
Page 14: Step 2
D pin bearings with the 3 fixing pins. Wall hanger. (Supplied with the device.) Device extension and fixing feet. (Supplied with the device.) Fixing pins. (For part number 2) (Supplied with the device.) Device hanger. (It is integrated with the device.) www.daygas.eu... -
Page 15: Dsr Lcd & Premium Gas And Electric Connection
DSR LCD & DSR Premium Gas and Electric Connection Electrical Connection Socket: Gas Connection: 3/4’’ 190-260 V / 50-60 Hz Gas Pressure: 20-50 mbar www.daygas.eu... -
Page 16: Dsr Industrial Series
DSR INDUSTRIAL SERIES www.daygas.eu... -
Page 17: Dsr Industrial Series Technical Information
3,66 2,71 1440 410 51,85 58,03 330-1000 DSR56E 5,32 3,94 1440 410 51,85 58,03 350-1200 Elektrical Connection: 230-240VAC 50-60Hz +/-%15 Working Pressure: NG 21-55 mbar LPG 32-55 mbar Electricity Consumption: 10,3 w/h Gas Connection: G3/4’’ Stage: 2 / 5 www.daygas.eu... -
Page 18: Dsr Industrial Assembly Steps
Wall hanger. (Supplied with the device.) Device extension and fixing feet. (Supplied with the device.) Fixing pins. (For part number 2) (Supplied with the device.) Fixing pins. (For part number 1) (Not supplied with the device.) www.daygas.eu... -
Page 19: Dsr Industrial Gas And Electric Connection
DSR Industrial Gas and Electric Connection Electrical connection socket: 190-260 V / 50-60 Hz Gas connection: 3/4’’ Gas pressure: 20-50 mbar www.daygas.eu... -
Page 20: Required Conditions For Safe Operation And Connection Of Dsr Series Devices
Connect the heater to the gas pipeline. Open the gas valve in front of the absorber and check the tightness of the gas pipeline and the threaded connections of the emitter (after the gas valve) with a soapy solution at the nominal gas pressure. Eliminate gas leaks when detected. www.daygas.eu... - Page 21 The person who maintains the heaters and controls their operation must have the » knowledge of “Safety Rules for Gas Distribution and Gas Consumption Networks” and have a certificate. The person who maintains and ensures the operation of the heaters must have » knowledge of electrical safety. www.daygas.eu...
-
Page 22: List Of Required Activities Performed During Maintenance
Attention! In seasonal conditions of use of the heater, in case of long inactivity of the device, it is recommended to cover the hole in the mixing tube with cloths or to take various measures to prevent the penetration of insects and other organic substances. www.daygas.eu... -
Page 23: Safety Precautions To Be Followed When Using Dsr Ceramic Heaters
Before giving electrical energy to the device, make sure to measure your electrical line. Our device works with 220/230 V 50 Hz. In case these values change and there is interference, make sure to stabilize your line with regulatory devices. www.daygas.eu... -
Page 24: First Run & Troubleshooting & Troubleshooting
For malfunctions of your device other than the ones described above, please contact the manufacturer of the device and the service without intervening. Interfering with malfunctions other than the ones above may have dangerous consequences. www.daygas.eu... -
Page 25: Maintenance And Warnings
Do not leave flammable or combustible materials near the combustion area and do not squeeze them during the operation of your device. Never let your device come into contact with water. When cleaning the paint, use a slightly damp cloth and make sure that your device is absolutely cold. www.daygas.eu... -
Page 26: Warranty Certificate
WARRANTY CERTIFICATE... -
Page 27: Warranty Conditions
The consumer may apply to the consumer arbitration committee or the consumer court in the place of residence or the consumer transaction, in case of disputes that may arise regarding the use of his rights arising from the guarantee. www.daygas.eu... -
Page 28: Matters Out Of Warranty Coverage
(for example, for the purpose of providing process heat instead of space heating), In case the device(s) are first started up outside of Daygas Heating Systems or Daygas authorized service, In case of malfunctions and damages arising from electrical voltage fluctuations... - Page 29 ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 30 E-Mail: Authorized Stamp: Authorized Stamp: Authorized Signature: Yetkili Signature: MANUFACTURER Daygas Heating Systems İnş. Tah. Ltd. Sti. Firuzköy Bulvarı No: 206, 34325 Avcilar / Istanbul +90 (850) 532 91 53 - +90 (212) 423 30 44 Avcilar VD. - 2710796836...
- Page 31 Authorized Stamp: Authorized Stamp: Authorized Signature: Authorized Signature: Authorized Signature: MANUFACTURER Daygas Heating Systems İnş. Tah. Ltd. Sti. Firuzköy Bulvarı No: 206, 34325 Avcilar / Istanbul +90 (850) 532 91 53 - +90 (212) 423 30 44 Avcilar VD. - 2710796836...
- Page 32 MANUFACTURER Daygas Heating Systems İnş. Tah. Ltd. Sti. Firuzköy Bulvarı No: 206, 34325 Avcilar / Istanbul 0 (850) 532 91 53 - 0 (212) 423 30 44 Avcilar VD. - 2710796836 FACTORY Firuzköy Bulvarı No: 206, 34325 Avcılar / İstanbul...
