STANDARDS & APPROVALS
EU conformity:
EMC Directive
EMI EN 61000-6-4
EMS EN 61000-6-2
Low Voltage Directive
EN 61010-1
Installation Category II
Pollution Degree 2
Input or output to power: Reinforced insulation (300 V)
Input to output: Basic insulation (300 V)
RoHS Directive

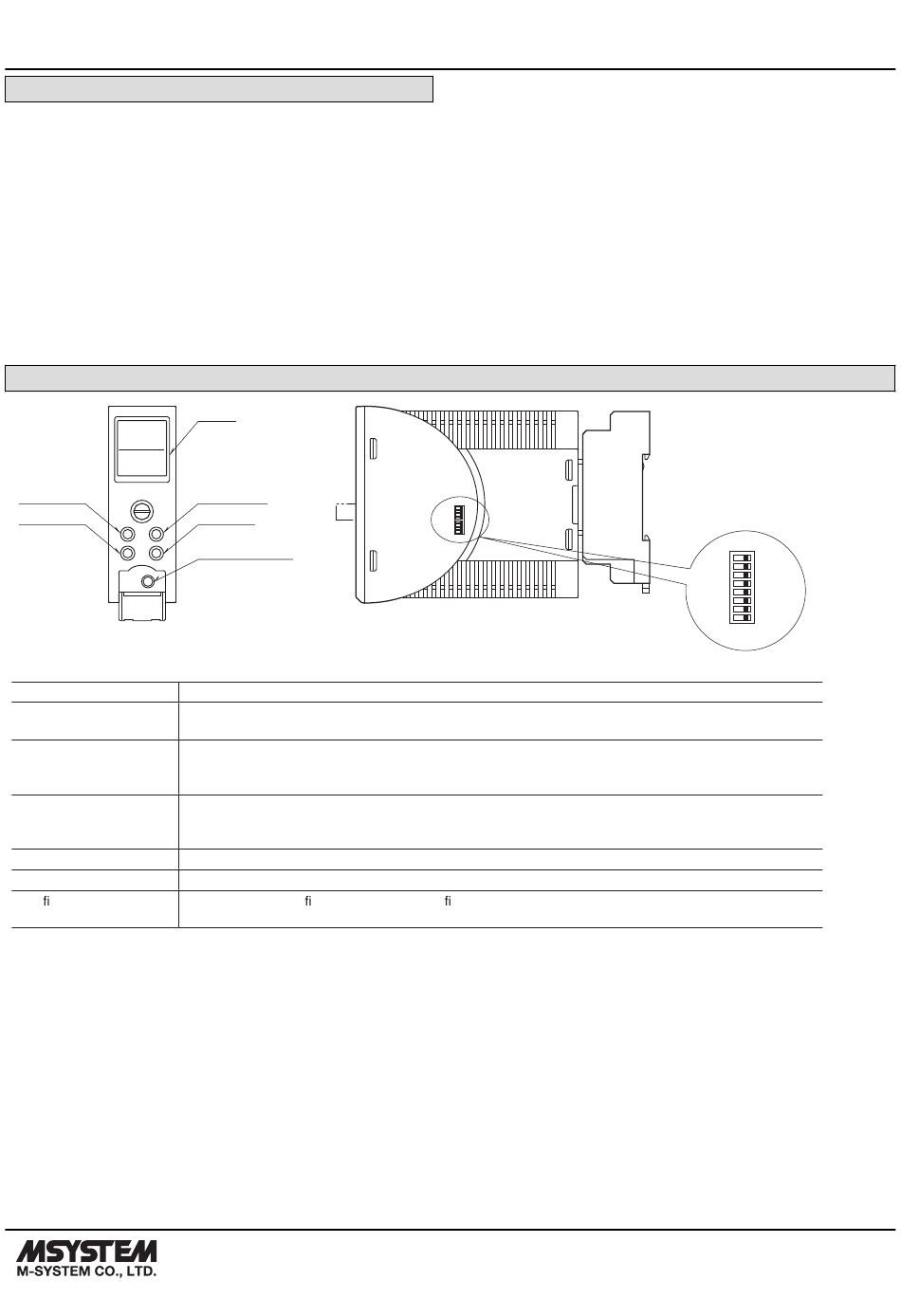

EXTERNAL VIEW

PERCENT
100.00
%
OUTPUT
20.000
mA
Up Button
Down Button
Up Mode
Down Set
COMPONENT
Display
Mode Button
Set Button
Up Button
Down Button
Con gurator Jack
Refer to the operating manual (EM-5133-B) for detailed procedures.
https://www.m-system.co.jp/
Display
Mode Button
Set Button
Configurator Jack
FUNCTION
Indicates present values, setting values and abnormal information.
Two types of present values are displayed respectively at the upper and lower parts according to setting.
Shifts from Measuring mode to each setting mode.
The destination changes depending on how long the button is held down.
Pressing Mode button for ≥ 2 seconds returns to Measuring mode from each setting mode..
Shifts the setting value of each setting parameter item to a setting changeable state.
When at setting changeable state, used to move through the digits of setting value for input/output scaling
and to enter (save) the setting value.
Shifts through setting parameter items and to increase or select the setting value.
Shifts through setting parameter items and to decrease or select the setting value.
Used to perform con guration with M2E con gurator software (model: M2ECFG).
When using the software, set the Lockout setting of the unit to 'Lock' .
SW1
8
7
6
5
4
3
2
1
ON OFF
M2EXV SPECIFICATIONS
MODEL: M2EXV
Output Setting DIP SW
SW1
8
7
6
5
4
3
2
1
ON OFF
