Summary of Contents for Hamilton Beach Big Mouth Plus 67750-CN
Page 1

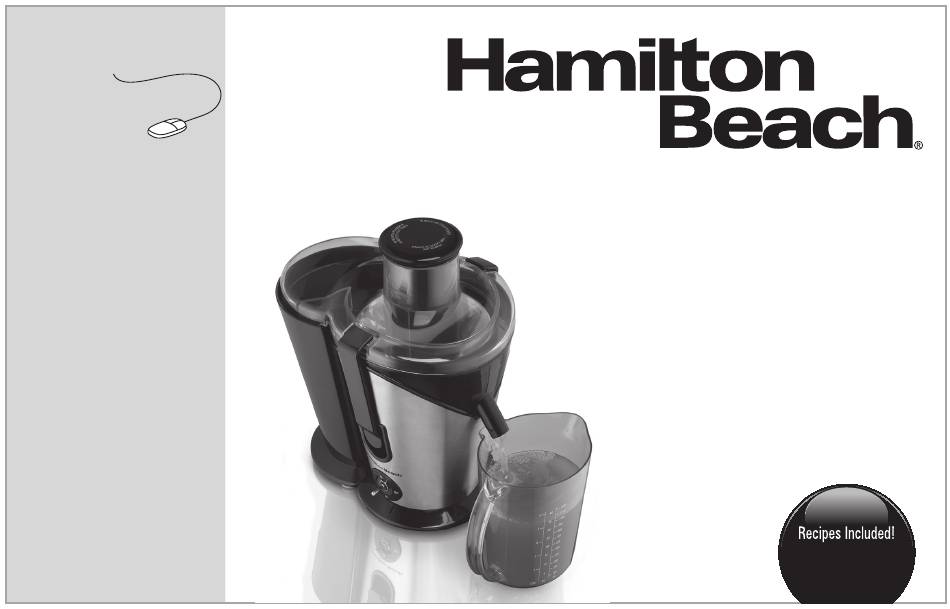

READ BEFORE USE 使用前阅读 Visit www.hamiltonbeach.cn for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online! 有关我们所有系列产品的,使用与维护 Big Mouth Plus 指南 – 以及美味食谱、生活小贴士和 产品在线注册的更多信息,请访问 Juice Extractor www.hamiltonbeach.cn 。...
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following: 1. Read all instructions. 13. The use of attachments not recommended or sold by the 2.
Page 3
Other Consumer Safety Information This appliance is intended to be used in household and similar The strainer basket is a delicate screen. If bent or damaged, do not applications such as: use, as it could break into small pieces and cause personal injury –...
Parts and Features WARNING Laceration Hazard. Micro-mesh strainer basket may fly apart during use if it is damaged, resulting in the risk of cuts and bruises. To reduce the risk of personal injury: • Always inspect micro-mesh strainer basket before each use. •...
How to Assemble BEFORE FIRST USE: After unpacking the juice extractor, remove cardboard from filter basket and wash everything except the base in warm, soapy water. Rinse and dry immediately. Never immerse the base in water or other liquids; wipe it with a damp sponge. Strainer Basket Place strainer bowl on top of the With hands on outer edge, press...
How to Use WARNING Laceration Hazard. Never use fingers to push food down the feed chute or to clear the feed chute. Always use the food pusher provided. Wash fruits and vegetables. NOTE: Most fruits and vegetables such as apples, carrots, and cucumbers will not need to be cut since they will fit into feed chute whole.
How to Disassemble Release locking latches. Move the locking latches down. Lift off the cover. Turn juice extractor OFF ( ) and unplug. Allow strainer basket to stop turning. Remove the pulp container by Lift off the strainer bowl with the To remove the strainer basket, turn the strainer bowl upside down sliding away from motor base.
Care and Cleaning WARNING Shock Hazard. Do not immerse motor base in water or any other liquid. DO NOT use the “SANI” setting when washing in the dishwasher. “SANI” cycle temperatures could damage your product. Do not place the motor base in the dishwasher.
Page 9
Juicing Tips, Techniques, and Recipes PURCHASING AND STORING FRUITS AND VEGETABLES: USING THE PULP: • Always wash fruits and vegetables before juicing. • The remaining pulp left after juicing fruits or vegetables is mostly fiber and cellulose which, like the juice, contain vital nutrients •...
Page 10
Juicing Chart Fruit or Vegetables Examples Speed Firm Fruits and Vegetables Apples, Peeled Oranges, Carrots, Beets, Cucumbers, Ginger HIGH Soft Fruits and Vegetables Strawberries, Pitted Peaches, Watermelons, Grapes, Tomatoes Leafy Greens Spinach, Kale, Beet Greens...
Page 11
Recipes Carrot, Ginger, and Apple Juice Blueberry, Raspberry, Strawberry, and Apple Juice 6 medium carrots 1 cup (237 ml) blueberries 1/4-inch-thick (0.6 cm) slice fresh ginger (about 1-inch [2.5-cm] 1 cup (237 ml) raspberries diameter) 4 large strawberries, hulled 1 large Granny Smith apple 1/4 of a Granny Smith apple Directions: Directions:...
Page 12
Recipes (cont.) Veggie Cocktail Pomegranate Blueberry Juice 8 medium tomatoes 2 cups (473 ml) pomegranate seeds 1 small lemon, peeled 1 cup (237 ml) blueberries 1 large rib celery Directions: 1 medium carrot 1 onion slice 1. Juice the ingredients in the order listed. 1 teaspoon (5 ml) Worcestershire sauce 2.
Troubleshooting PROBLEM PROBABLE CAUSE/SOLUTION Machine will not work • The locking latches may not be correctly engaged. Check to see if the locking latches are properly when switched ON. positioned in the two grooves on either side of the juice cover. Refer to page 5, Steps 3 and 4. •...
