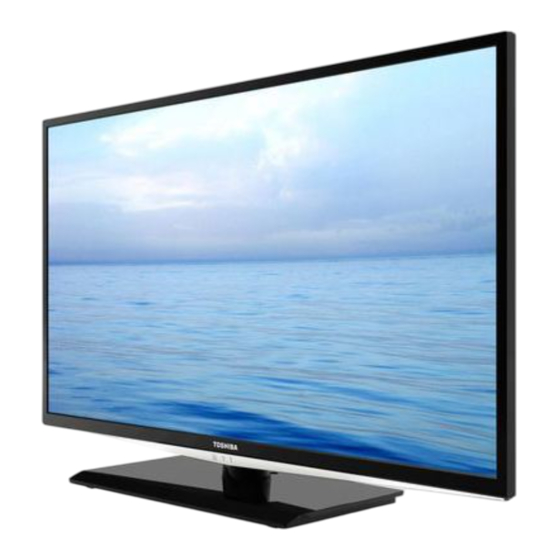

Toshiba 40HL933G Service Manual

Lcd color television
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
LCD Color Television
40HL933G
Updating history
Currently there are no updates available.
Please check back at a later time for any future
updates.
TOSHIBA WEB-ZEUS
Ver. 1.00
>> terms and conditions
Copyright © 1995-2012 TOSHIBA Corporation, All Rights Reserved.
>> privacy policy
Print this page
5
5
6
6

Advertisement

Table of Contents
loading

Related Manuals for Toshiba 40HL933G

Summary of Contents for Toshiba 40HL933G

  • Page 1 LCD Color Television 40HL933G Ver. 1.00 Updating history Currently there are no updates available. Please check back at a later time for any future updates. >> terms and conditions >> privacy policy TOSHIBA WEB-ZEUS Copyright © 1995-2012 TOSHIBA Corporation, All Rights Reserved.

  • Page 2: Important Notice

    WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Toshiba shall not be liable for any damages, losses, expenses or costs, if any, incurred in connection with or as a result of use of any information or data provided herein.

  • Page 3: Green Product Procurement

    Hazardous Substances. From July 1, 2006, the RoHS Directive will prohibit any marketing of new products containing the restricted substances. Increasing attention is given to issues related to the global environmental. Toshiba Corporation recognizes environmental protection as a key management tasks, and is doing its utmost to enhance and improve the quality and scope of its environmental activities.

  • Page 4: Lead-Free Solder

    PCBs as the level of heat required to melt lead-free solder is high. >> terms and conditions >> privacy policy TOSHIBA WEB-ZEUS Copyright © 1995-2012 TOSHIBA Corporation, All Rights Reserved.

  • Page 5: Safety Instruction

    >> terms and conditions >> privacy policy TOSHIBA WEB-ZEUS Copyright © 1995-2012 TOSHIBA Corporation, All Rights Reserved.

  • Page 6: Safety Precaution

    Print this page SAFETY INSTRUCTION Handling the LCD Module Safety Precaution In the event that the screen is damaged or the liquid crystal (fluid) leaks, do not breathe in or drink this fluid. Also, never touch this fluid. Such actions could cause toxicity or skin irritation. If this fluid should enter the mouth, rinse the mouth thoroughly with water.
  • Page 7 the soiling, breathe on the surface and then wipe again. If the panel surface is extremely solied, use a CRT cleaner as a cleaner. Wipe off the panel surface by drop the cleaner on the cloth. Do not drop the cleaner on the panel. Pay attention not to scratch the panel surface.
  • Page 8 10. When transporting the LCD module, do not use packing containing epoxy resin (amine) or silicon resin (alcohol or oxim). The gas generated by these materials can cause loss of polarity. >> terms and conditions >> privacy policy TOSHIBA WEB-ZEUS Copyright © 1995-2012 TOSHIBA Corporation, All Rights Reserved.

  • Page 11: Troubleshooting Guide

    Print this page TROUBLESHOOTING GUIDE UNDER CONSTRUCTION Note: Please check back in the future. >> terms and conditions >> privacy policy TOSHIBA WEB-ZEUS Copyright © 1995-2012 TOSHIBA Corporation, All Rights Reserved.

  • Page 12: Firmware Updating Procedure

    LCD screen then unplug USB disk. TV will auto reset and power on again. Note: Not allow copy more then 1 versions of firmware in USB disk. >> terms and conditions >> privacy policy TOSHIBA WEB-ZEUS Copyright © 1995-2012 TOSHIBA Corporation, All Rights Reserved.
  • Page 13 Print this page MODEL ID and PANEL ID Total digits Model_ID SERIAL Panel Max 14 ****** 3 digits 3 digits 6 digits 2digits (M00001~M99999) Y : Year 2008 2009 2010 2011 2012 · · · · · · WK : Week WK01 WK02 WK03...
  • Page 14 32EL933N LC320EXN-SEA1 32EL933RB LC320EXN-SEA1 32EL934G LC320EXN-SEA1 32EL934RB LC320EXN-SEA1 32HL933B LTA320HN03 32HL933G LTA320HN03 32HL933N LTA320HN03 32HL933RK LTA320HN03 40HL933B LTA400HM22 40HL933G LTA400HM22 40HL933N LTA400HM22 40HL933RK LTA400HM22 Model Model ID Panel ID Panel 32AV933G LC320WXN-SCC1 32AV933N LC320WXN-SCC1 32AV933RB LC320WXN-SCC1 32AV934G LC320WXN-SCC1 32AV934RB LC320WXN-SCC1 32LV933G T315HW04 V4(REV.6)
  • Page 15 Panel vendor Marking Panel Vendor Marking Panel Vendor Marking Panel Vendor SHARP SAMSUNG LPL/LGD >> terms and conditions >> privacy policy TOSHIBA WEB-ZEUS Copyright © 1995-2012 TOSHIBA Corporation, All Rights Reserved.

  • Page 16: Destination Setting Change

    Print this page DESTINATION SETTING CHANGE Whenever replacing the Main PCB with new one, perform this procedure. 1. IR Key MENU → APPLICATIONS → Sleep Timer → OK. 2. When display _ _ : _ 0 input 4 numbers 2766. The Factory menu will display.
  • Page 17 5. Select the appropriate model type by Right/Left Arrow key on the Remote. Model type is written on the rating label. 6. Select "Reset to Def". 7. Select "Yes" and press "OK" button on the Remote.
  • Page 18 >> terms and conditions >> privacy policy TOSHIBA WEB-ZEUS Copyright © 1995-2012 TOSHIBA Corporation, All Rights Reserved.

  • Page 19: Parts List

    Print this page PARTS LIST Precaution WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "SAFETY PRECAUTION" "PRODUCT SAFETY NOTICE". CAUTION: The international hazard symbols " " in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list.
  • Page 20 >> terms and conditions >> privacy policy TOSHIBA WEB-ZEUS Copyright © 1995-2012 TOSHIBA Corporation, All Rights Reserved.
  • Page 21 Currently there are no updates available. Please check back at a later time for any future updates.
