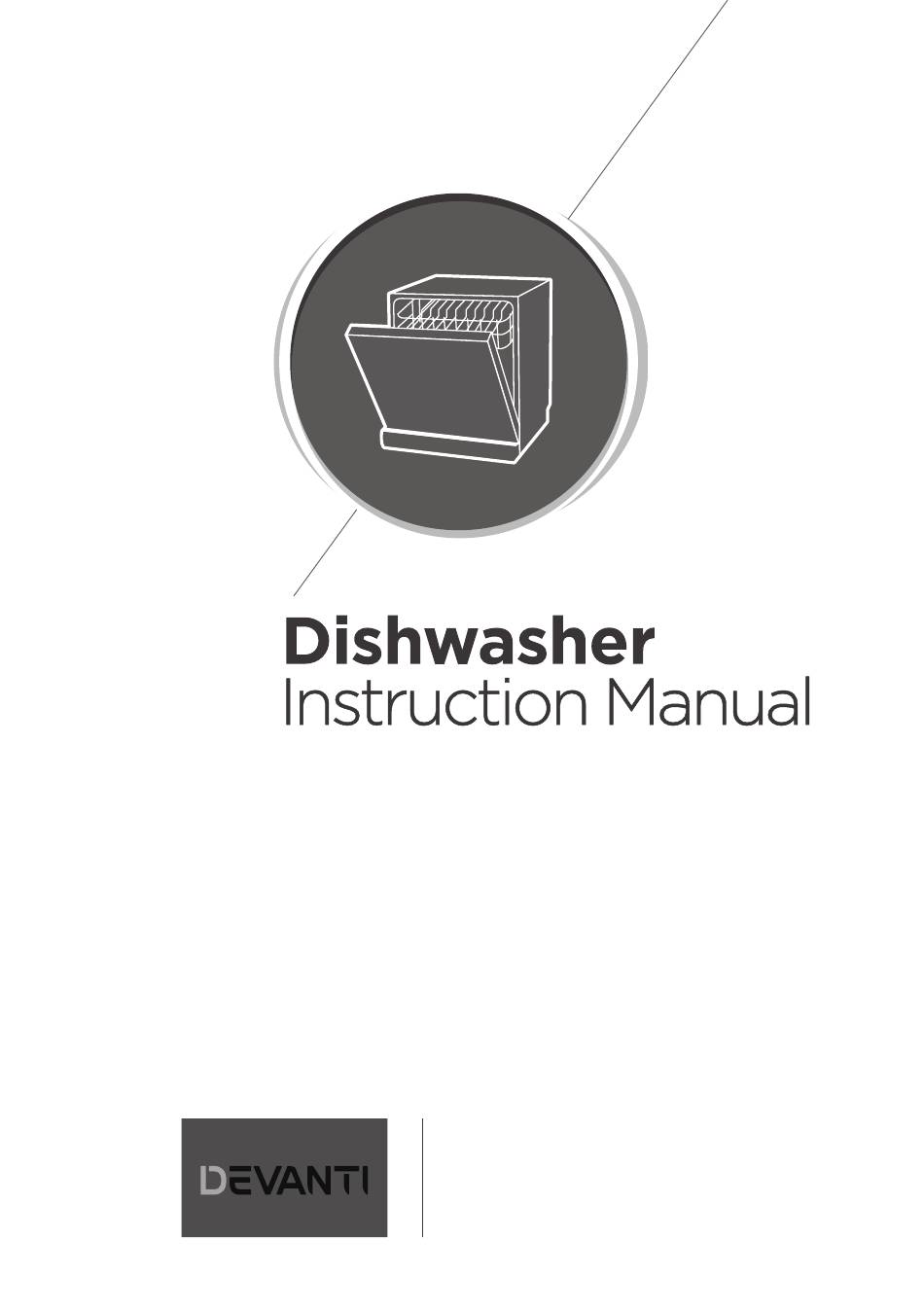

- Page 1 PART Ⅰ: Generic Version PART Ⅱ: Special Version BDW-8-02G-BK Please read this manual carefully before using the dishwasher and Keep this manual for future reference.
-
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATION PRODUCT OVERVIEW MAINTENANCE AND CLEANING External Care Internal Care Caring For The Dishwasher INSTALLATION INSTRUCTION About Power Connection Water Supply And Drain Connection Of Drain Hoses Position The Appliance Built-In Installation(for the integrated model) TROUBLESHOOTING TIPS LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1 NOTE: Reviewing the section on troubleshooting Tips will help you solve some common problems by yourself. -
Page 3: Safety Information
SAFETY INFORMATION WARNING When using your dishwasher , follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments;... - Page 4 supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1 ) Packaging material could be dangerous for children! This appliance is for indoor household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
- Page 5 Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place.
- Page 6 Do not wash plastic items unless they are marked “ dishwasher safe” or the equivalent. For unmarked plastic items not so marked, check the manufacturer's recommendations. Use only detergent and rinse agents recommended for use in an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
- Page 7 Disposal For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
-
Page 8: Product Overview
PRODUCT OVERVIEW IMPORTANT: To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Spray arm Filter assembly Dispenser upper spray arm Upper basket Cutlery rack Lower basket NOTE: Pictures are only for reference, different models may be different. Please prevail in kind. -
Page 9: Maintenance And Cleaning
MAINTENANCE AND CLEANING External Care The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door.These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. - Page 10 Fine filter Main filter Main filter Open Open Hold the coarse filter and rotate it Lift fine filter up from main filter. anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher. Larger food remnants can be Reassemble the fi lters in the reverse cleaned by rinsing the filter under order of the dissasembly, replace the...
- Page 11 Spray arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: To remove the upper spray arm, To remove the lower spray arm, pull hold the nut in the centre still and out the spray arm upward.
-
Page 12: Caring For The Dishwasher
Caring For The Dishwasher Frost precaution please take frost protection measures on the dishwasher in winter. Every fter washing cycles,please operate as follows: 1. Cut off the electrical power to the dishwasher at the supply source. 2. Turn off the water supply and disconnect the water inlet pipe from the water valve. 3. -
Page 13: Installation Instruction
INSTALLATION INSTRUCTION WARNING Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Attention The installation of the pipes and electrical equipments should be done by professionals. About Power Connection WARNING For personal safety: Do not use an extension cord or an adapter... -
Page 14: Water Supply And Drain
Water Supply And Drain Cold water connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure ordinary supply hose that the water is clear. -
Page 15: Connection Of Drain Hoses
Connection Of Drain Hoses Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 750mm. The free end of the hose must not be immersed in water to avoid the back flow of it. -
Page 16: Position The Appliance
How to drain excess water from hoses If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. -
Page 17: Built-In Installation(For The Integrated Model)
Built-In Installation (for the integrated model) Step 1. Selecting the best location for the dishwasher The installation position of dishwasher should be near the existing inlet and drain hoses and power cord. Illustrations of cabinet dimensions and installation position of the dishwasher. 1. - Page 18 Step 2. Install the dishwasher in cabinet...
-
Page 19: Troubleshooting Tips
TROUBLESHOOTING TIPS Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible causes Solution Fuse blown, or the Replace fuse or reset circuit breaker. Dishwasher doesn't circuit breaker tripped. Remove any other appliances sharing the start same circuit with the dishwasher. - Page 20 Problem Possible Causes What To Do There are rust The affected items Avoid washing items that are not stains on cutlery are not corrosion corrosion resistant in the dishwasher. resistant. Knocking noise The spray arm is Interrupt the program, and rearrange knocking against in the wash cabinet the items which are obstructing the...
- Page 21 Problem Possible Causes What To Do Dishes block detergent Re-loading the dishes properly. Detergent left in dispenser cups dispenser cups The dishesare Improper loading Load the dishwasher as suggested in not drying the directions. Too little rinse-aid Increase the amount of rinse-aid / Refill the rinse-aid dispenser.
-
Page 22: Loading The Baskets According To As/Nzs 2007.1
LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1: 1.Upper basket: Item Number Cups Glasses rack Item Number Saucers Dessert dishes Dinner plates Soup plates... - Page 23 3.Cutlery rack: Up rack Down rack Item Number Soup spoons Forks Knives Teaspoons 4 4 4 Dessert spoons Information for comparability tests in accordance with (*AS/NZS 2007.1 ) Capacity: 8 place settings Program: ECO Rinse aid setting: 6 Detergent(Pre/main): 5/20g Door is open at the end of the drying cycle for the drying performance test (Door position: Open 50 mm)
- Page 24 PART Ⅱ: Special Version Please read this manual carefully before using the dishwasher Keep this manual for future reference.
- Page 25 CONTENTS USING YOUR DISHWASHER Control Panel Preparing And Loading Dishes Function Of The Rinse Aid And Detergent Filling The Rinse Aid Reservoir Filling The Detergent Dispenser PROGRAMMING THE DISHWASHER Wash Cycle Table Starting A Cycle Wash Changing The Program Mid-cycle Forget To Add A Dish? ERROR CODES TECHNICAL INFORMATION...
- Page 26 QUICK USER GUIDE Please read the corresponding content on the instruction manual for detailed operating method. Install the dishwasher (Please check the section 5 “INSTALLATION INSTRUCTION ” of PART Ⅰ: Generic Version.) Inside Outside Loading the baskets Removing the larger residue on the cutlery Filling the dispenser Selecting a program and running...
-
Page 27: Using Your Dishwasher
USING YOUR DISHWASHER Control Panel Operation (Button) Power Press this button to turn on your dishwasher, the screen lights up. Delay Press the button to set the delay time. Press this button to select the appropriate washing program, the Program selected program indicator will be lit. - Page 28 Program end Progress when the program is end, the indicator will be lit. indicator Delay time To show the delay time. (2h/4h/8h) Intensive For heaviest soiled crockery, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while.
-
Page 29: Preparing And Loading Dishes
Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes Are not suitable Cutlery with wooden, horn china or mother-of-pearl handles... - Page 30 Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage, glasses should not touch one another.
- Page 31 Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.
-
Page 32: Function Of The Rinse Aid And Detergent
Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING Only use branded rinse aid for dishwasher. -
Page 33: Filling The Rinse Aid Reservoir
Filling The Rinse Aid Reservoir Rinse-Aid indicator To open the dispenser, turn the cap Carefully pour in the rinse-aid into to the "open" (left) arrow and lift its dispenser, whilst avoiding it to it out. overflow. NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash. -
Page 34: Filling The Detergent Dispenser
Filling The Detergent Dispenser Push latch to open Press the release catch on the detergent Add detergent into the larger cavity dispenser to open the cover. (A) for the main wash cycle . For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle . -
Page 35: Programming The Dishwasher
PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. )Means: need to fill rinse into the Rinse-Aid Dispenser. Description Energy Water... -
Page 36: Starting A Cycle Wash
NOTE: AS/NZS 2007.1 This program is the test cycle. The information for comparability test in accordance with AS/NZS 2007.1. Starting A Cycle Wash 1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one. 2. -
Page 37: Forget To Add A Dish
Forget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below: Press the Start/Pause button to pause the washing. Wait 5 seconds then open the door. Add the forgotten dishes. -
Page 38: Error Codes
ERROR CODES If there is a malfunction, the dishwasher will display error codes to identify these: Meanings Codes Possible Causes The Rapid light Faucets is not opened, or water intake is Longer inlet time. restricted, or water pressure is too low. flicker fleetly The Rapid and Not reaching required... -
Page 39: Technical Information
TECHNICAL INFORMATION Height (H) 590mm Width (W) 550mm Depth (D1) 500mm (with the door closed) Depth (D2) 964mm (with the door opened 90°) - Page 40 Product fiche Product fiche Manufacturer Devanti Type / Description BDW-8-02G-BK Standard place settings Energy efficiency class Water consumption class Standard cleaning cycle Energy consumption of the standard cleaning cycle 0.55 kWh Water consumption of the standard cleaning cycle 9.2 liter...
