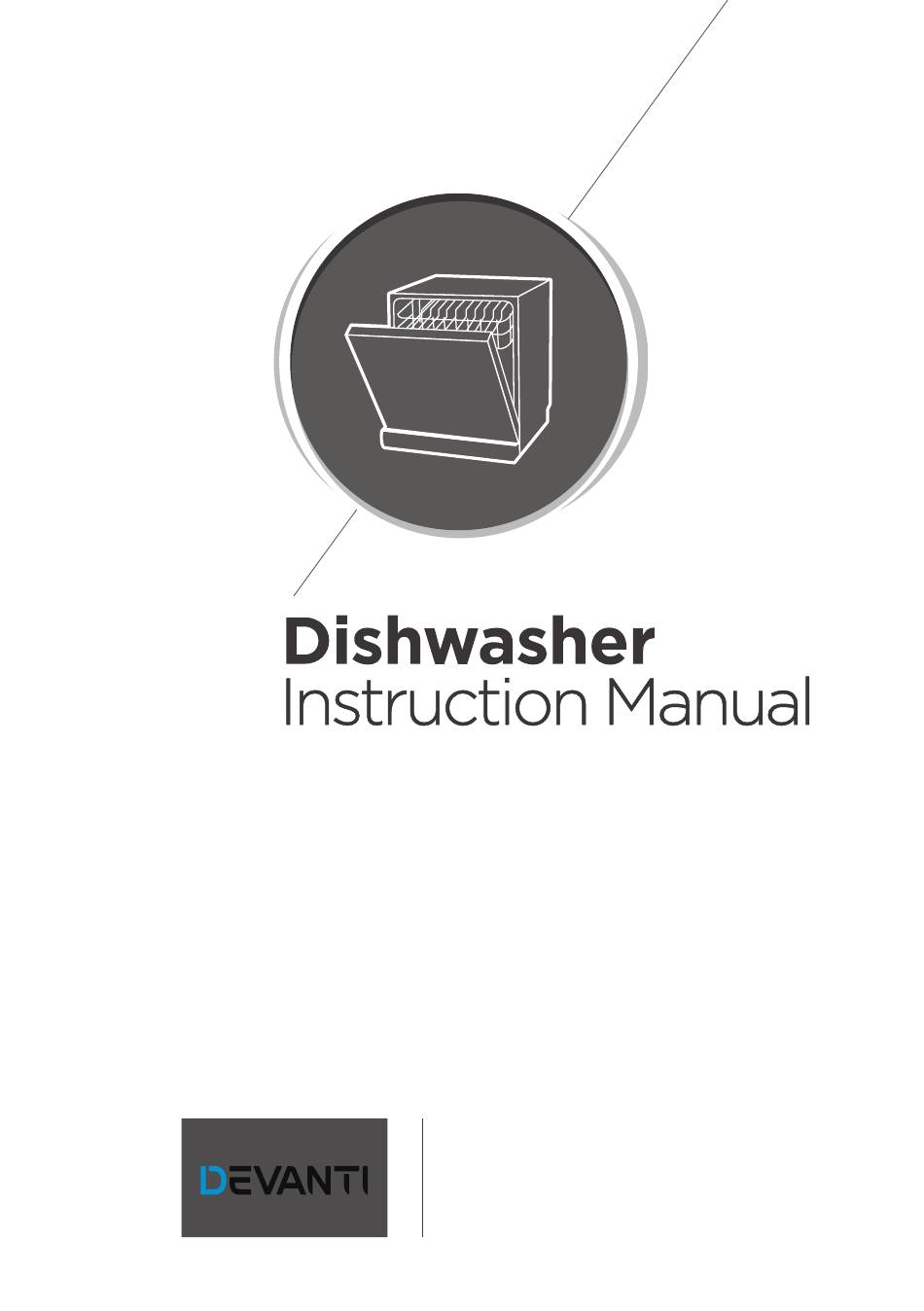

- Page 1 PART Ⅱ: Special Version BDW-8-02G-SI Please read this manual carefully before using the dishwasher and Keep this manual for future reference.
-
Page 2: Table Of Contents
CONTENTS USING YOUR DISHWASHER Control Panel Preparing And Loading Dishes Function Of The Rinse Aid And Detergent Filling The Rinse Aid Reservoir Filling The Detergent Dispenser PROGRAMMING THE DISHWASHER Wash Cycle Table Starting A Cycle Wash Changing The Program Mid-cycle Forget To Add A Dish? ERROR CODES TECHNICAL INFORMATION... - Page 3 QUICK USER GUIDE Please read the corresponding content on the instruction manual for detailed operating method. Install the dishwasher (Please check the section 5 “INSTALLATION INSTRUCTION ” of PART Ⅰ: Generic Version.) Inside Outside Loading the baskets Removing the larger residue on the cutlery Filling the dispenser Selecting a program and running...
-
Page 4: Using Your Dishwasher
USING YOUR DISHWASHER Control Panel Operation (Button) Power Press this button to turn on your dishwasher, the screen lights up. Delay Press the button to set the delay time. Press this button to select the appropriate washing program, the Program selected program indicator will be lit. - Page 5 Program end Progress when the program is end, the indicator will be lit. indicator Delay time To show the delay time. (2h/4h/8h) Intensive For heaviest soiled crockery, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while.
-
Page 6: Preparing And Loading Dishes
Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes Are not suitable Cutlery with wooden, horn china or mother-of-pearl handles... - Page 7 Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage, glasses should not touch one another.
- Page 8 Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.
-
Page 9: Function Of The Rinse Aid And Detergent
Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING Only use branded rinse aid for dishwasher. -
Page 10: Filling The Rinse Aid Reservoir
Filling The Rinse Aid Reservoir Rinse-Aid indicator To open the dispenser, turn the cap Carefully pour in the rinse-aid into to the "open" (left) arrow and lift its dispenser, whilst avoiding it to it out. overflow. NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash. -
Page 11: Filling The Detergent Dispenser
Filling The Detergent Dispenser Push latch to open Press the release catch on the detergent Add detergent into the larger cavity dispenser to open the cover. (A) for the main wash cycle . For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle . -
Page 12: Programming The Dishwasher
PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. )Means: need to fill rinse into the Rinse-Aid Dispenser. Description Energy Water... -
Page 13: Starting A Cycle Wash
NOTE: AS/NZS 2007.1 This program is the test cycle. The information for comparability test in accordance with AS/NZS 2007.1. Starting A Cycle Wash 1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one. 2. -
Page 14: Forget To Add A Dish
Forget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below: Press the Start/Pause button to pause the washing. Wait 5 seconds then open the door. Add the forgotten dishes. -
Page 15: Error Codes
ERROR CODES If there is a malfunction, the dishwasher will display error codes to identify these: Meanings Codes Possible Causes The Rapid light Faucets is not opened, or water intake is Longer inlet time. restricted, or water pressure is too low. flicker fleetly The Rapid and Not reaching required... -
Page 16: Technical Information
TECHNICAL INFORMATION Height (H) 590mm Width (W) 550mm Depth (D1) 500mm (with the door closed) Depth (D2) 964mm (with the door opened 90°) - Page 17 Product fiche Product fiche Manufacturer 5-star chef Type / Description BDW-8-02G-SI Standard place settings Energy efficiency class Water consumption class Standard cleaning cycle Energy consumption of the standard cleaning cycle 0.55 kWh Water consumption of the standard cleaning cycle 9.2 liter...
