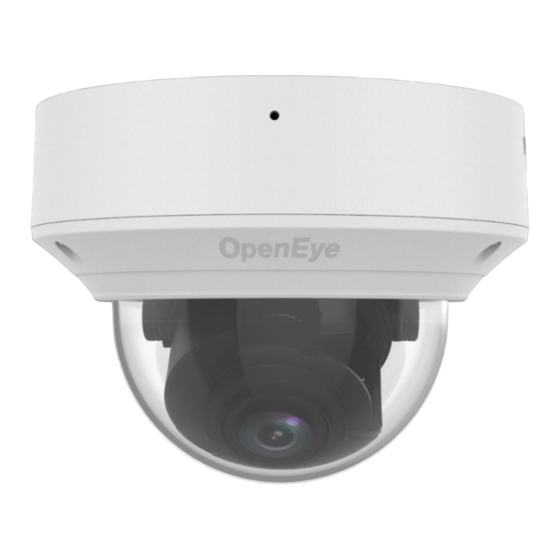

OpenEye OE-C3212D8-S Quick Start Manual
Hide thumbs Also See for OE-C3212D8-S:

Advertisement

Quick Links

OE-C3212D8-S Quick Start Guide
OE-C3212D8-S Quick Start Guide Hard Copy
Click the link if you need to download the original hardcopy of the
OE-C3212D8-S Quick Start Guide
included with the
boxed contents.

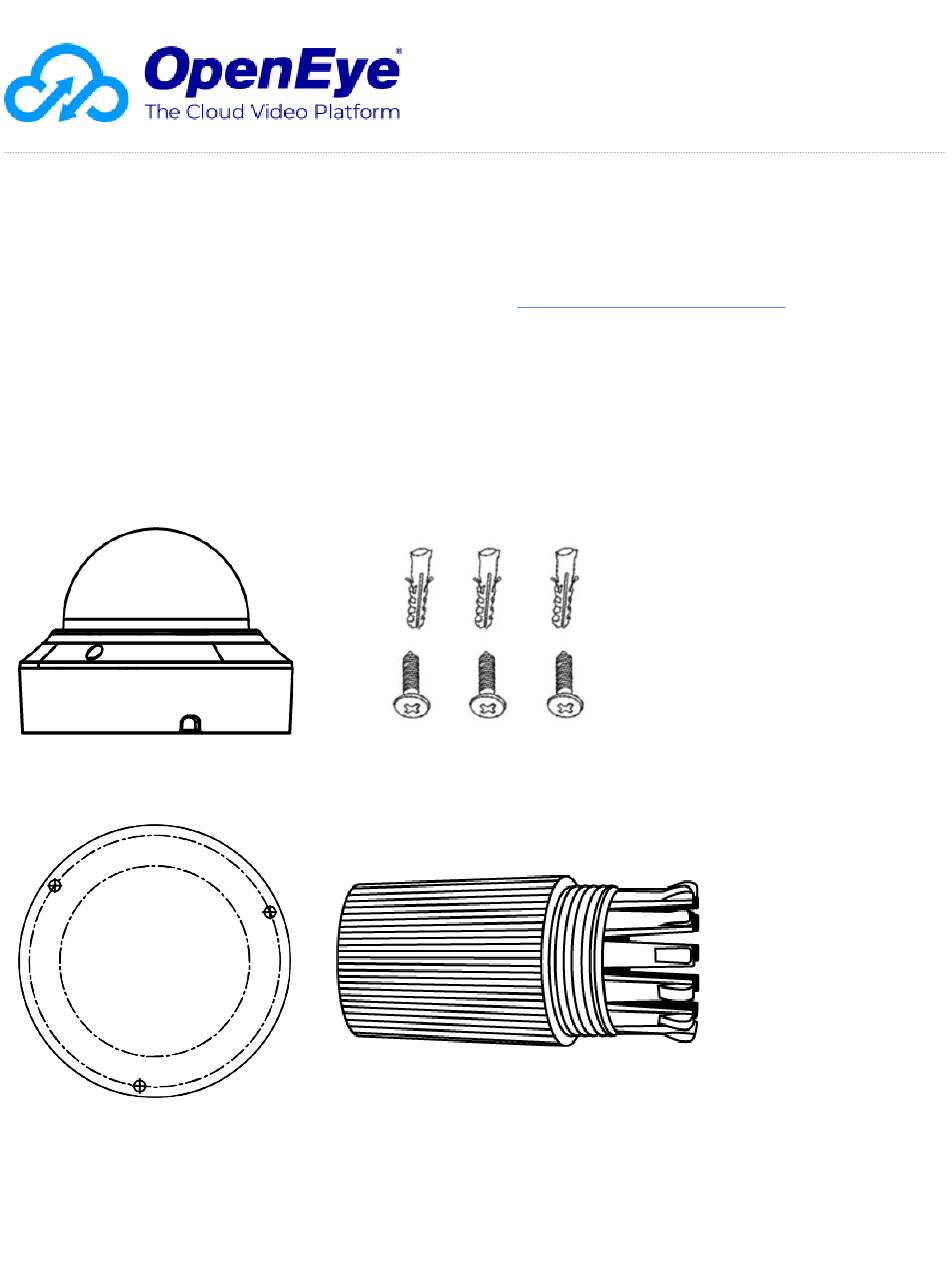

Box Contents

OpenEye C3212D8-S cameras come with self-tapping screws and plastic anchors, mounting template, a torx tool, and a
waterproof cable connector. Identify the following components to make sure everything has been properly included with
your new recorder. If any of the following items are missing, contact the dealer to arrange a replacement.
Self-Tapping Screws and Plastic Anchors x3
OE-C3212D8-S Dome Camera
Waterproof Cable Connector
Mounting Template
Copyright © OpenEye 2023
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OE-C3212D8-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for OpenEye OE-C3212D8-S

  • Page 1 Box Contents OpenEye C3212D8-S cameras come with self-tapping screws and plastic anchors, mounting template, a torx tool, and a waterproof cable connector. Identify the following components to make sure everything has been properly included with your new recorder. If any of the following items are missing, contact the dealer to arrange a replacement.
  • Page 2 Torx Tool Connections RJ45 For network and PoE connections Power (12vDC) Power Connection (12vDC power input should be plugged when not in use) Ground Audio I/O Audio In Audio Out Alarm I/O Ground Copyright © OpenEye 2023...
  • Page 3 Sourcing Equipment (PSE) switch is available. Ensure that the camera’s power cable is correctly and firmly connected. NOTE: OpenEye recommends against using more than one power source at a time. Do not use a PoE power source when providing the camera with 12vDC power.
  • Page 4 Assigning an IP Address OpenEye IP cameras are set to DHCP by default. If a DHCP server is not detected after 2 minutes, the camera will default to IP address 192.168.51.2. If you are not using a DHCP server, NCM will allow you to batch configure a static IP address.
  • Page 5 Pan: 0° ~ 355° Pan / Tilt / Rotate Tilt: 0° ~ 80° Rotate: 0° ~ 355° IP Rating IP67 Impact Rating IK10 Related Links Network Camera Manager Advanced Camera Management Adding Cameras and Camera Settings OE-C3212D8-S Copyright © OpenEye 2023...
