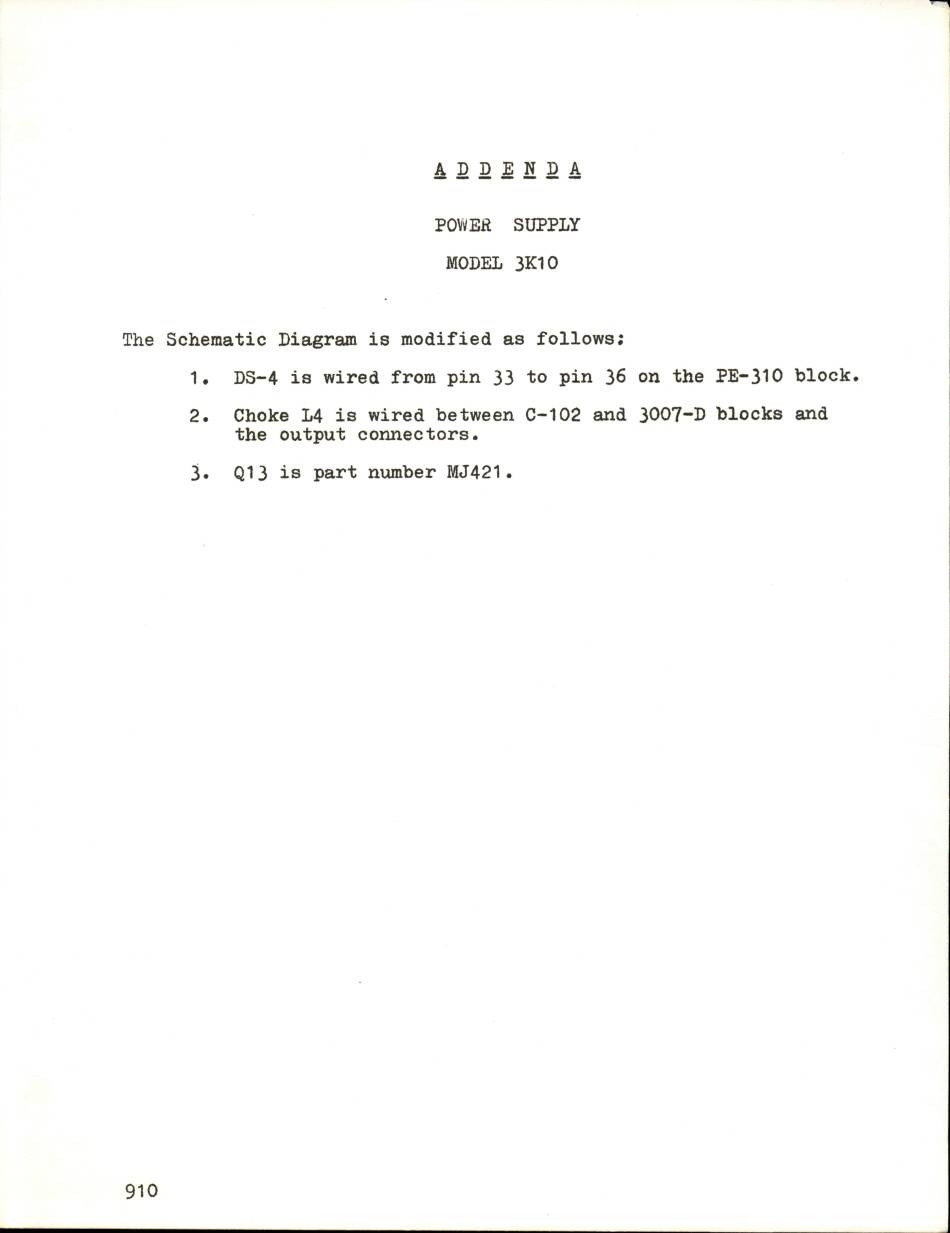

4 2 2 1 N D A
POWER
SUPPLY
MODEL 3K10
The Schematic Diagram is modified as follows;
1. DS-4 is wired from pin 33 to pin 36 on the PE-310 block.
2.
Choke L4 is wired between 0-102 and 3007-D blocks and
the output connectors.
3.
Q13 is part number MJ421.
910
