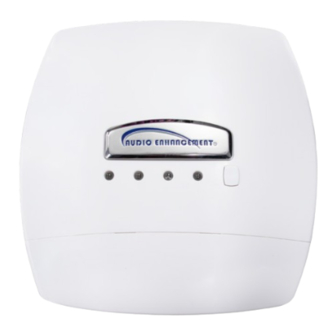

- Page 1 XD RECEIVER MANUAL...
- Page 2 FCC CAUTION WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to • The main plug or an appliance coupler shall remain readily operable. operate the equipment. • To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. This device complies with part 15 of the FCC Rules.
-
Page 3: Table Of Contents
TABLE OF CONTENTS OVERVIEW XD Receiver is designed as a physical interface for triggering the Lockdown Notification from Warnings ................................... 2 EPIC (Education Paging & Intercom Communications) System® remotely. This allows the button to Overview ..................................5 be installed in areas where installing an EPIC Kiosk is not feasible or where a physical push button interface is desired. -
Page 4: Specifications
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. SPECIFICATIONS Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. -
Page 5: Features
XD RECEIVER WITH 3’ CAT6 Receiver Specifications DECT Technology 1.9 GHz Line In Line level 3.5 mm stereo mini jack (monaural mix) FEATURES Line out Line level 3.5 mm output mini jack, RJ45 line level output, line level 3.5 mm stereo output Power Requirement 24V DC @ 130 mA 85 dB or more (Receiver to Mix/MIC output), by auto level control function in Microphone... -
Page 6: Operation
CONTROL TERMINALS 8-pin and 7-pin Euro blocks are used. OPERATION The following terminals are equipped. • E1 CNT: Provides E1 signal* output controlled by K-STD14 (Teacher Microphone). • E2 CNT: Provides E2 signal* output controlled by K-STD14. Connect a standard CAT5, CAT5e, or CAT6 cable to the amplifier. Then turn on the amplifier and *Those are available when K-STD14 is used. -
Page 7: Linking A Microphone To A Receiver
LINKING STUDENT MICROPHONE LINKING A MICROPHONE Press and hold the PWR LINK While holding use your thumb to slide button on the back of the XD Student the TALK button up into to TO A RECIEVER Microphone. the on position. Successful linking will produce an audible beep as well as an additional green LED. -
Page 8: Classroom Audio
SAFE ALERTS CLASSROOM AUDIO PAIRED VS NOT PAIRED TEACHER MICROPHONE PAIRED MODE (MICROPHONE CONNECTED TO A RECEIVER) Pressing the PWR/MUTE button for 3+ seconds will power up the microphone. The microphone can be used in a classroom. (When linked, MIC1 or MIC2 LED indicator lights green on the receiver) When a Teacher Microphone is linked to the receiver and the E2 buttons are pressed simultaneously for 3 seconds or more the Teacher Microphone immediately sends an alert message to the receiver. -
Page 9: Functions
TONE FUNCTION This is a function where the operation sound output is provided from the Mix Out connector when the FUNCTIONS volume button is operated with the optional microphone, K-STD14. The operation sound is generated twice at the maximum and minimum volumes. The level of the operation sound can be set to High or Low with the DIP switch. -
Page 10: Led Lighting Indication
E1 CNT, E2 CNT FUNCTION These functions are available when the K-STD14 microphone is used. When E1 or E2 is controlled with LED LIGHTING INDICATION the microphone, control signals are provided from the E1 CNT or E2 CNT terminal of this unit. Selection between E1 and E2 is made at the microphone side. -
Page 11: Dip Switch Setting
LED INDICATION 2: LINK LED LED INDICATOR INDICATION OPERATING STATE PRIORITY MIC1 POWER MIC2 When a Link key is pressed, the Link LED blinks yellow for 20 sec (linking registration mode). Red** 1 (Highest) E2 signal output provided* (Lighting green at E2 ACK (Lighting green at E2 ACK (Lighting green at Power OFF) •... -
Page 12: Connections
SWITCH 1 CONNECTIONS NAME FUNCTION MIC Override Selection of microphone override function Deactivated Activated* Selection of tone signal from this unit at operating volume button Tone ON/OFF Tone OFF Tone ON* of K-STD14 Tone Level H-L Selection of tone signal (2 levels) at operating volume button Low Level* High Level Selection of whether to mix the microphones MIC1 and MIC2 to the... - Page 13 INTERFACE CONNECTOR CONNECTION WIRING THE EUROBLOCK CONNECTOR A detachable Euroblock connector is provided for this unit’s connectors. As shown in the figure below, insert a slot-head screwdriver into the gap, and remove the Euroblock connector from this unit. Connect the wires to the Euroblock connector. Using a slot-head screwdriver, loosen the Euroblock connector screws, peel off the insulating material around each of the wires, twist the conductors firmly, insert the ends of the conductors into the Euroblock connector, and tighten the Euroblock connector screws.
-
Page 14: Precautions For Installation
• Install this product near the power outlet. The K-SRC14 receiver can send and receive commands and status information via RS-232C to external • Connect this product with the breaker of a distribution board which has a contact point of not less devices. -
Page 15: Wall Installation Guide
DO NOT INSTALL OR USE IN FOLLOWING LOCATIONS: • Locations directly affected by rain or water (including spaces under the eaves). WALL INSTALLATION GUIDE • Locations such as pool where medical agents are used. • Locations such as kitchens or factory workshops where there is a lot of vapor or oil, and special environments such as in flammable atmospheres. -
Page 16: Ceiling Tile Installation Guide
CEILING TILE CABLE ROUTING INSTALLATION GUIDE AND MOUNTING Route cables using the designated pathway provided by the mounting bracket. (Figure 5) Wires can be routed from behind the Remove the tile from the ceiling, and ensure mounting surface, through the center access the mounting bracket is placed centered hole of the mounting bracket, shown in red, on the tile. -
Page 17: Serial Communication Command
• All of $, CR, LF: (colon) are fixed single byte, and the command part is fixed 3 bytes. SERIAL COMMUNICATION • The length of the parameter part is basically single byte. As an exception, only the 2nd parameter is 2 bytes for the volume setting command. COMMAND •... - Page 18 COMMAND LIST COMMAND COMMAND CONTENT TYPE PARAMETER PARAMETER EXAMPLE 0: Non E2 status Notification of E2 state * 1: E2 status & E2 ACK COMMAND COMMAND CONTENT TYPE 3-time transmission at Change notification signal not received None $CF2:1[CR][LF] PARAMETER PARAMETER EXAMPLE 1 sec.
- Page 19 COMMAND PARAMETER CONTENT COMMENT COMMAND CONTENT TYPE PARAMETER PARAMETER EXAMPLE Microphone (XD ID) DET ID (20 bits) is specified by 1: MIC1 input the character string (5 bytes) of a hexadecimal form. volume up Receiver /WAP (XD ID) XD ID (20 bits) is specified by Notification of volume up 2: MIC2 input the character string (5 bytes) of a hexadecimal form.
-
Page 20: Troubleshooting
TROUBLESHOOTING SYMPTOM CAUSE/SOLUTION Does the Power LED light? Check the connection between the receiver and the amplifier. Check the power of the amplifier is turned on. No reception Is the power of the microphone turned on (Is a battery loaded)? Turn on the power of the microphone (load a battery) to put it into the transmissible state.
