BioLAB 300 Series Operation Manual

Hide thumbs Also See for 300 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

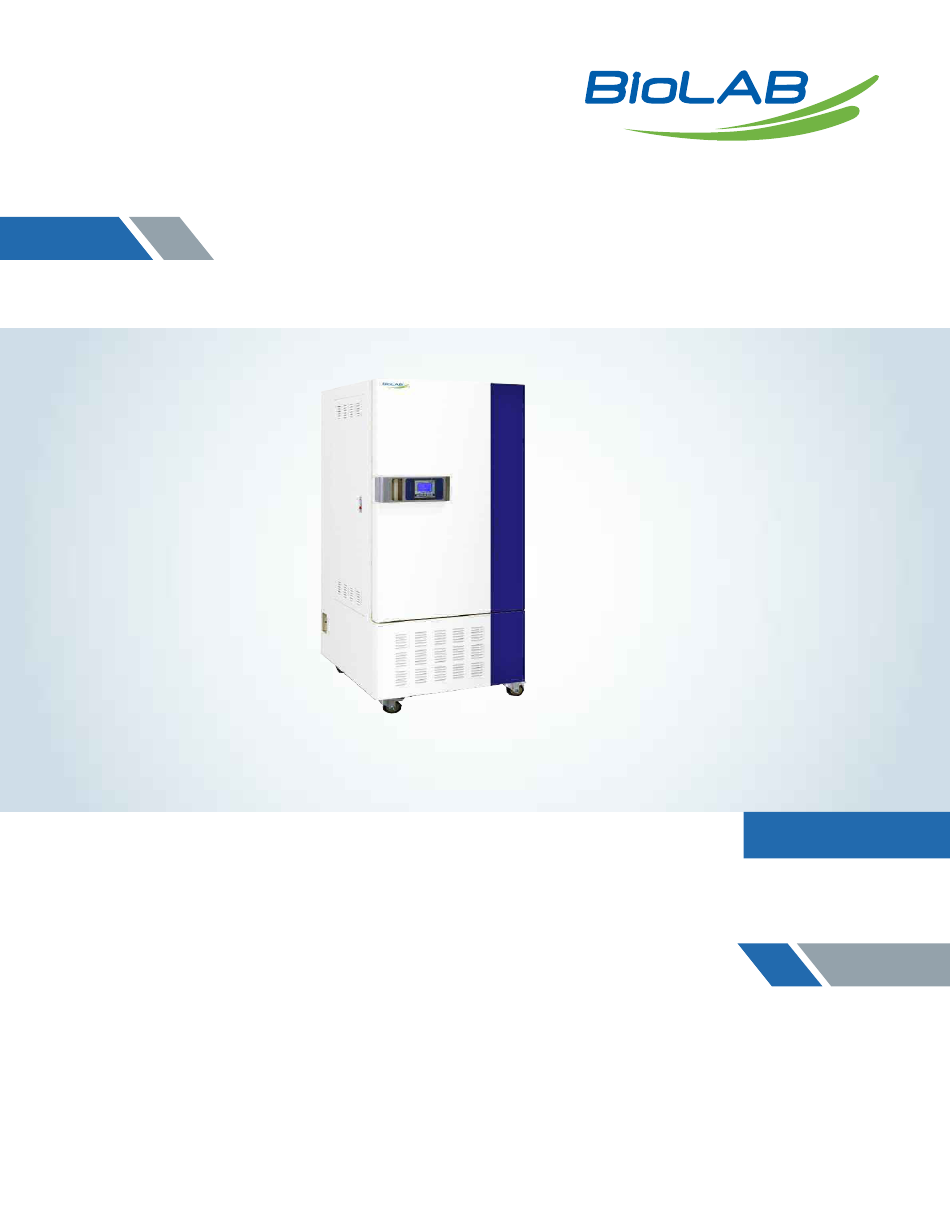

Operation
Manual
Series 300
Climatic Chamber
Thank you for Choosing Biolab products. Please read the "Operating Instructions" and
"Warranty" before operating this unit to assure proper operation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 300 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BioLAB 300 Series

Summary of Contents for BioLAB 300 Series

  • Page 1 Operation Manual Series 300 Climatic Chamber Thank you for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
  • Page 2 Climatic Chamber BCCL 300 series Notices ● In order to ensure safety, please read this manual carefully ● Make sure put this manual in convenient place for later use ● Our company doesn’t provide a safe guarantee if do not follow the instruction manual ●...

  • Page 3: Table Of Contents

    Climatic Chamber BCCL 300 series Index 1. Safety notices and warnings.......................04 2. Safety operation and preventive action..................05 3. Instruction ( application, performance, technical parameters)..........08 4. Structure..............................09 5. Installation..............................12 6. Operation..............................13 7. Alarm and safety function........................21 8. Routine using and maintenance......................21 9.

  • Page 4: Safety Notices And Warnings

    Climatic Chamber BCCL 300 series Safety notices and warning ● “Warning” symbol It will cause serious harm or fatal accident if not comply with warning ● “Attention” symbol It will cause injury ,equipment damage and the loss of relative property if not comply with attention ●...

  • Page 5: Safety Operation And Preventive Action

    Climatic Chamber BCCL 300 series Safety operation and preventive action Warning : Do not place this equipment outdoors. if it exposed in the rain, it may cause short circuit and electric shock. Only professional person have qualification to install this equipment. If not, it may cause electric shock or fire.
  • Page 6 Climatic Chamber BCCL 300 series Safety operation and preventive action Warning : Do not touch any electric components or switch with wet hand, or it may cause electric shock Make sure wear mask when maintaining the equipment to prevent any harmful drug substance and airborne particle.
  • Page 7 Climatic Chamber BCCL 300 series Safety operation and Preventive measure Attention : Please clean the dust on the power plug and then insert it into power socket properly, or it may cause over-heating or strike sparks Check temperature, humidity, segment and timing and other setting value when reboot the equipment after been short circuited or cut off by power supply.

  • Page 8: Instruction(Application ,Performance, Technical Parameters )

    Climatic Chamber BCCL 300 series Instruction(application ,performance, technical parameters ) Application : BCCL Climate Chamber is thermostatic equipment with heating, cooling,humidification and lighting function, highly precise and advanced. Widely used in plant cultivation, breeding test, bacteria, mould, microbial cultivation &...

  • Page 9: Structure

    Climatic Chamber BCCL 300 series Structure Parts : 1. storage water tank 2. wheel 3. compressor part 4. outlet pipe 5. overflow pipe 6. inlet pipe 7. water switch 8. humidifier 9. mesh board 10. evaporator 11. temperature and humidity sensor 12.
  • Page 10 Climatic Chamber BCCL 300 series Control Panel : 1)LCD display ; 2)alarm indicator, it is on when equipment running abnormally 3)refrigeration indicator is on when compressor running normally 4)humidity indicator is on when humidifier running normally 5)heat indicator is on when heater running normally key key, long press this key for two seconds to start or stop key ,in the main interface, press this key then backlight;...
  • Page 11 Climatic Chamber BCCL 300 series Equipment installation In order to make sure the equipment can run normally, please place equipment as following: Attention: ambient temperature 10~30°C; relative humidity less than 70% 1. Avoid exposure to the sunlight. Do not place it in direct sunlight, or it won’t reach predicted performance 2.

  • Page 12: Installation

    Climatic Chamber BCCL 300 series Installation 1. Unpacking Remove packing materials ,open the door for ventilation . Please use neutral detergent to clean if the shell and panel is dirty. then wipe with wet cloth and at last with dry and clean cloth 2.

  • Page 13: Operation

    Climatic Chamber BCCL 300 series Notice ：Don’t use NaCl or other Halide solution to clean equipment ,or it will cause rust Operation Display : 1. In the general mode, screen displays main interface; lighting:class 6 2. In master interface, press key to check interface,after 60 seconds , it will return master interface automatically;...
  • Page 14 Climatic Chamber BCCL 300 series 4. In master interface ,long press key 4 seconds to access parameter password interface ; different parameter have different password , input correct password, press to access relative parameter interface; if password is incorrect, press key ,it will return main interface 5.
  • Page 15 Climatic Chamber BCCL 300 series Operation Method Operation steps For example：after power is connected , the equipment will start working 120 minutes later. Set 10 cycles, two segments each cycle. in the first segment, it needs to work for 720 minutes, the temperature controlled is at 30 C, light intensity is class 6 ,humidity controlled is at 60% RH;...
  • Page 16 Climatic Chamber BCCL 300 series Parameters : a)user parameters：Password 3 Parameter Range (factory Parameter Function name default) Connected to the computer, the mailing address of this Address equipment, if several equipments connect to the computer, 1～16(1) mailing address should not be same;...
  • Page 17 Climatic Chamber BCCL 300 series b) Temperature parameters：Password4 Range (factory Parameter name Parameter Instruction default) When measuring temperature> setting Over-temperature temperature + over-temperature alarming, alarm 5.0～50.0 (20.0) C alarm indicator is on, disconnect heating protective relay, start cooking , beeper beeps...
  • Page 18 Climatic Chamber BCCL 300 series temperature> =setting temperature + start refrigerant When control mode of compressor is 2, the closing point of cooling is measuring temperature <= Close setting temperature + Close refrigeration; ( the -20.0～20.0(0.2) C refrigerating closing point of refrigeration should be less than...
  • Page 19 Climatic Chamber BCCL 300 series dehumidification of start point: measuring dehumidifying humidity> = to setting humidity + start dehumidification; when the control mode of compressor is 2, dehumidification: measuring humidity <= setting Close humidity + disconnect dehumidification; ( the -20.0～20.0(2) %RH...
  • Page 20 Climatic Chamber BCCL 300 series e) Internal parameters：password 101 Parameter Range (factory Parameter instruction name default) The upper limit The upper limit value of setting temperature 0.0～90.0 (60.0) C of temperature The lower limit The lower limit value of setting temperature -40.0～0.0(0.0)C...

  • Page 21: Alarm And Safety Function

    Climatic Chamber BCCL 300 series Alarm and safety function ● Temperature sensor failure alarm: screen displays: compressor stops working and heating stops. The alarm will stop beeping after 10 times beeps ●Humidity sensor failure alarm：screen display: compressor stops working and heating stops, The alarm will stop beeping after 10 times beeps ●Temperature limit alarm：Measured temperature exceeds the set temperature of 4 degrees,...

  • Page 22: Optional Using

    Climatic Chamber BCCL 300 series experiment, for good circulation, samples should not be crowded. Do not touch temperature probe, in case of temperature is out of control. Make sure the shelf is fixed, or it could damage the cultures. Do not lean against or press the glass in case injury person.

  • Page 23: Trouble Shooting

    Climatic Chamber BCCL 300 series Data communication failure • (1)Check if RS-232 port inside connection is correct. (2)Check if RS-485 port inside connection is correct. (3)Check if port is connected. Data is missing or incorrect • Please check if data communication equipment rate and format is accordance...

  • Page 24: Specifications

    Temp. & humidity upper limit warning with screen prompt; Temp. & Warning system humidity sensor fault warning with screen prompt Weight 162kg 183kg 194kg Optional Accessories Switch port ,Portable printer, Note: Biolab may change product design and specification without notice. www.biolabscientific.com...

  • Page 25: Wiring Layout

    Climatic Chamber BCCL 300 series Wiring Layout A:/temp. B:/humidity sensor C:/door controller D:/water level E:/compressor F:/humidity G:/heat H:/fan I:/NO.1 lighting J:/NO.2 lighting K:/COM L:/NO.3 lighting M:/NO.4 lighting N:/NO.5 lighting O:/NO.6 lighting P:/defrost Q:/add water R/circuit breaker S:/refrigeration switch T:/fuse www.biolabscientific.com...
  • Page 26 Climatic Chamber BCCL 300 series Packing List Name Quantity Note Finish product instruction manual 4(250L) shelf 4(300L) 4(400L) storage water tank water tank Inlet pipe outlet pipe www.biolabscientific.com...
  • Page 27 Climatic Chamber BCCL 300 series Email: contact@biolabscientific.com Website: www.biolabscientific.com www.biolabscientific.com...
