- Page 1 O-347 4 x 1 VGA SWITCHER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
- Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

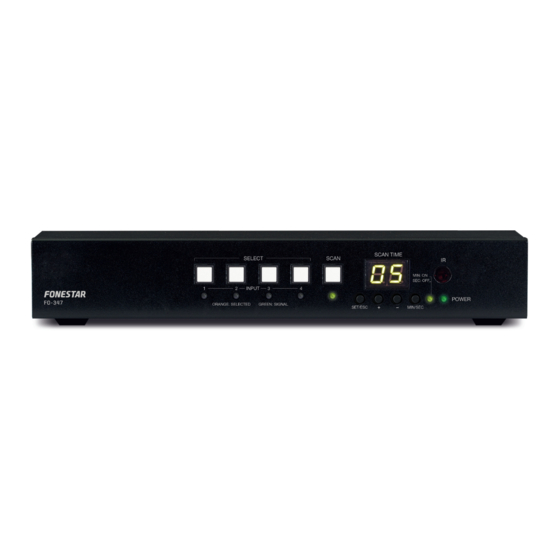

- Page 4 DESCRIPTION - 4 x 1 VGA switcher, manual selection and consecutive input switching with selectable interval. - Automatic intelligent selection function when an input signal is detected. Amplifies the output signal. Remote control. CONTROLS AND FUNCTIONS FRONT PANEL 1.- SELECT: Audio/video input selection buttons to be sent to the output. 2.- LED selected input indicators.
- Page 5 REAR PANEL 1.- ON/OFF: switcher on/off power switch. 2.- Power supply input for the mains adapter provided. 3.- RS-232: allows the system to be controlled through the series port. For more information, consult the Communication Protocol section. 4.- OUTPUT: Video/audio signal output, female D15 VGA connector and 3.5 mm jack. 5.- INPUT: Video/audio signal inputs 1-4, female D15 VGA connectors and 3.5 mm jack.
- Page 6 - Connect the VGA signal and the stereo audio sources to the corresponding switcher inputs. - Connect the VGA signal and the audio stereo output to the monitor and computer loudspeakers or any device you wish to use. - Power the FO-347 switcher with the mains adapter provided. TECHNICAL SPECIFICATIONS FO-347 CHARACTERISTICS 4 x 1 VGA switcher.
- Page 7 This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
- Page 8 www.fonestar.com...
