Installation and Operating Manual

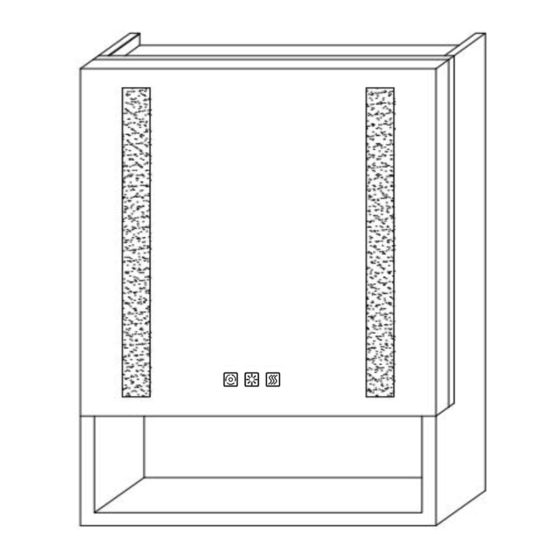

Series : LED Cabinet with external storage shelf and
Night light
DHMC2028V5RX / DHMC2028V5LX
W20" x H28"
DHMC2432V5RX / DHMC2432V5LX
W24" x H32"
DHMC3032V5TX W30" x H32"
LED Lighted Medicine Cabinet
DHMC2432V5RY / DHMC2432V5LY
W24" x H32"
DHMC3632V5FX / DHMC3632V5FB
W36" x H32"
Advertisement
Related Manuals for ExBrite DHMC2028V5RX
Summary of Contents for ExBrite DHMC2028V5RX

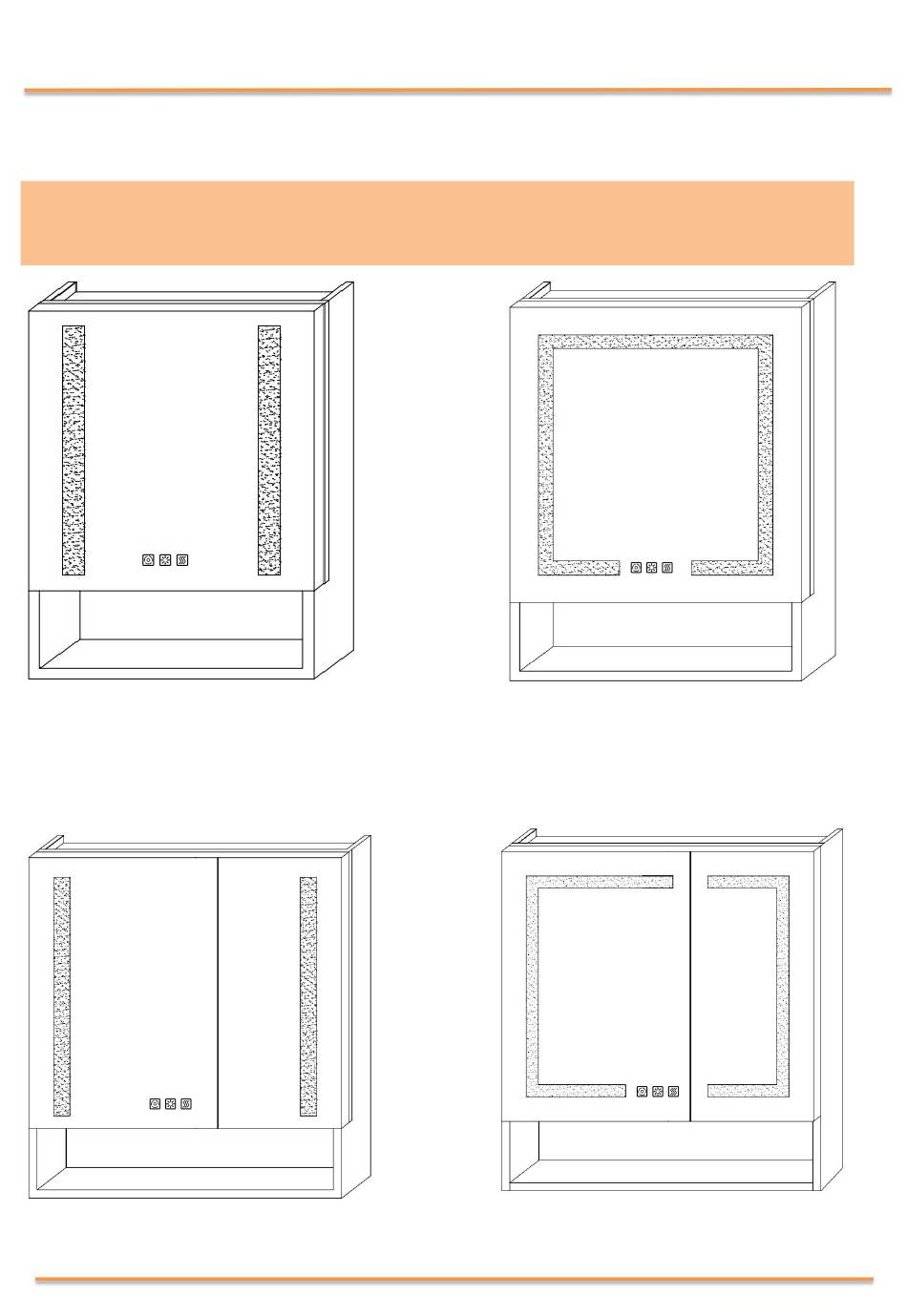

- Page 1 LED Lighted Medicine Cabinet Installation and Operating Manual Series : LED Cabinet with external storage shelf and Night light DHMC2028V5RX / DHMC2028V5LX DHMC2432V5RY / DHMC2432V5LY W20” x H28” W24” x H32” DHMC2432V5RX / DHMC2432V5LX W24” x H32” DHMC3632V5FX / DHMC3632V5FB DHMC3032V5TX W30”...
- Page 2 LED Lighted Medicine Cabinet Installation and Operating Manual Series : LED Cabinet with external storage shelf and Night light DHMC4832V5FX / DHMC4832V5FB W48” x 32” For easy and safe installation, please refer to the following: Read all instructions thoroughly before installing the enclosed product. Read and take note of all safety, care and maintenance information.
-
Page 3: Installation Instructions
LED Lighted Medicine Cabinet INSTALLATION INSTRUCTIONS WARNING AND SAFETY INSTRUCTIONS Before installing your LED Medicine Cabinet fixture,please make sure that you carefully read through this instruction sheet, refer back to them during installation to ensure your product is fitted safely and correctly. Keep these instructions for future use. WARNING Risk of Fire and Electric Shock All fittings must be installed in accordance with current IEE wiring regulations. - Page 4 LED Lighted Medicine Cabinet REQUIRTOOLSED PARTS SUPPLIED hinge cover X 2-6 Z-Hook x1 Z-Bar x1 for spare Matching screws x2 Side panels x 2 30”*26”/20”*28”: Glass shelves x 2 Side panel lids x4 , Round head Anchor x5-7 Other size: Wire caps x3 Matching screws screw x5-7...
- Page 5 LED Lighted Medicine Cabinet Cabinet installation Instructions for Hanging Walls Verify minimum clearances STEP 1 STEP 2...
- Page 6 LED Lighted Medicine Cabinet Cabinet installation Instructions for Hanging Walls Secure the bar with round-head screws STEP 3 STEP 4 Press down the side panels until they are clamped tightly with the cabinet. Align the slots inside of the side panels and cabinet.
- Page 7 LED Lighted Medicine Cabinet Cabinet installation Instructions for Hanging Walls STEP 7 STEP 8...
- Page 8 LED Lighted Medicine Cabinet Cabinet installation Instructions for Hanging Walls Insert the glass shelves between the layer board clips...
- Page 9 LED Lighted Medicine Cabinet Cabinet embedded Installation Instructions Determine the size of the opening STEP 1 STEP 2 STEP 2 STEP 4 STEP 3 STEP 4 *All diagrams are for reference only.All model dimensions and proportion sposition will vary.
- Page 10 LED Lighted Medicine Cabinet Instructions for assembling the doors and cabinet-- Suit for the items which doors and cabinet are separately packaging (considering the huge weight, we suggest installing the cabinet first, then assemble the door with cabinnet as below steps) 1.Insert the hings to the base ,then connect the doors with the cabinet 2.Adjust corresponding screws on the hinge to align the doors, ensure that gaps are even and the doors open and close smoothly...
- Page 11 LED Lighted Medicine Cabinet Manual to turn on/off light,dimming,CCT changing with touch switch Short ‐touch the button to turn on/off the mirror. Adjusting color temperatures (CCT) between warm white and cool white by long ‐touching the button for seconds. Finish setting by withdrawing your finger when the color reaches the ...
- Page 12 LED Lighted Medicine Cabinet Manual to setting clock with touch switch Choose and set the clock and temperature mode -Turn off the light. -Long-touch button 2 to choose and set the mode when it flash. There are two clock and temperature modes to choose. A: 12C/12F: Fahrenheit (F) and 12 hours B: 24C/24F: Celsius (C) and 24 hours The default mode is 12C/12F.
- Page 13 LED Lighted Medicine Cabinet Night Light Inside Night Light - The Night Light inside the cabinet will be auto-on/off according to the brightness surrounding when the door be opened. - Don’t cover the night light sensor. External Night Light -The Night Light will be auto-on/off according to the brightnes surrounding when the rocker switch is kepping turned on.
