- Page 1 LED Lighted Medicine Cabinet W e b s it e : Htt p ://w w w. ex b r it e u sa . c o m E m a i l : i nfo @ ex b r it e u s a . c o m H ot l i n e : + 1 3 0 2 3 3 6 8 1 8 0...

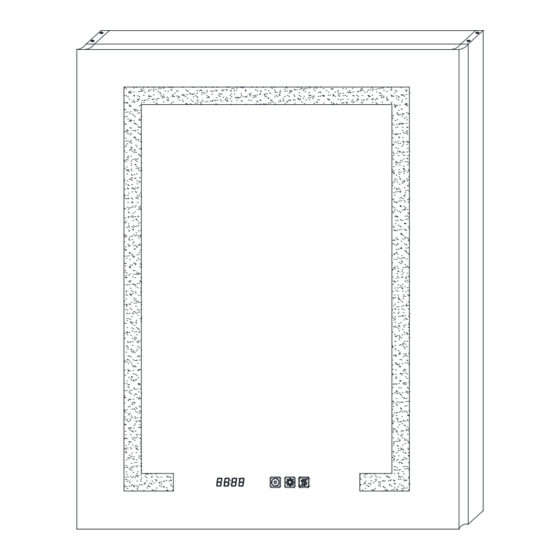

- Page 2 LED Lighted Medicine Cabinet Installation and Operating Manual Size: W24''xH32'' Series: 13MC2432V4LX 13MC2432V4RX For easy and safe installation, please refer to the following: Read all instructions thoroughly before installing the enclosed product. Read and take note of all safety, care and maintenance information.
-
Page 3: Installation Instructions
LED Lighted Medicine Cabinet INSTALLATION INSTRUCTIONS WARNING AND SAFETY INSTRUCTIONS Before installing your LED Medicine Cabinet fixture,please make sure that you carefully read through this instruction sheet, refer back to them during installation to ensure your product is fitted safely and correctly. Keep these instructions for future use. WARNING Risk of Fire and Electric Shock ●All fittings must be installed in accordance with current IEE wiring regulations. - Page 4 LED Lighted Medicine Cabinet REQUIRTOOLSED PARTS SUPPLIED Z-Hook x1 Layer board supporting X4 Z-Bar x1 22.2”x3.74”: for spare Matching screws x2 Glass Shelf x3 Side panels x 2 Hinge cover x3 Side panel lids x4 , Round head screw Matching screws x10 Anchor x6 Wire caps x3 W e b s it e : Htt p ://w w w.
- Page 5 LED Lighted Medicine Cabinet Installation Instructions for Hanging Walls Verify minimum clearances 76 [3”] STEP STEP W e b s it e : Htt p ://w w w. ex b r it e u s a . c o m E m a i l : i nfo @ ex b r it e u s a .
- Page 6 LED Lighted Medicine Cabinet Installation Instructions for Hanging Walls Mark hole loca�ons on the wall.Drill Secure the bar with round-head screws holes Insert anchors where needed STEP STEP Align the slots inside of the side panels and cabinet. STEP The side panels and cabinets are individually packaged , you need follow the STEP 5 to STEP 7 to install the side panels for hanging walls version,for embedded installation no need install the side boards.
- Page 7 LED Lighted Medicine Cabinet Installation Instructions for Hanging Walls White wire(Neutral) Ground wire Black wire (Hot) 3-connec�on cap STEP STEP W e b s it e : Htt p ://w w w. ex b r it e u sa . c o m E m a i l : i nfo @ ex b r it e u s a .
- Page 8 LED Lighted Medicine Cabinet Installation Instructions for Hanging Walls Install the glass shelf Adjust corresponding screws on the hinge to align the doors, ensure that gaps are even and the doors open and close smoothly Install the Hinge cover Adjust gap between door and cabinet W e b s it e : Htt p ://w w w.
- Page 9 LED Lighted Medicine Cabinet Embedded Installation Instructions Determine the size of the opening 105 mm (4 1/8 ”) 795 mm (31 1/4 ”) 595 mm (23 1/2 ”) 76 mm (3”) STEP White wire(Neutral) Ground wire Black wire (Hot) 3-connec�on cap STEP W e b s it e : Htt p ://w w w.
- Page 10 LED Lighted Medicine Cabinet Embedded Installation Instructions STEP STEP STEP * All diagrams are for reference only. All model dimensions and proportions position will vary. W e b s it e : Htt p ://w w w. ex b r it e u sa . c o m E m a i l : i nfo @ ex b r it e u s a .
- Page 11 LED Lighted Medicine Cabinet Bright sensor UL socket with USB 3.6A ON/OFF button Color temperature button ON/OFF button Dimming button Defogger button ON/OFF switch for night light only Night light DO NOT cover the sensor on the cabinet . ...
- Page 12 LED Lighted Medicine Cabinet Short press and touch bu�on to turn on/off the mirror. Bu�on turns blue when connected to main supply & turns to white a�er a short press.The mirror starts to work accordingly. Long press bu�on to change color temperature when the mirror is working.
