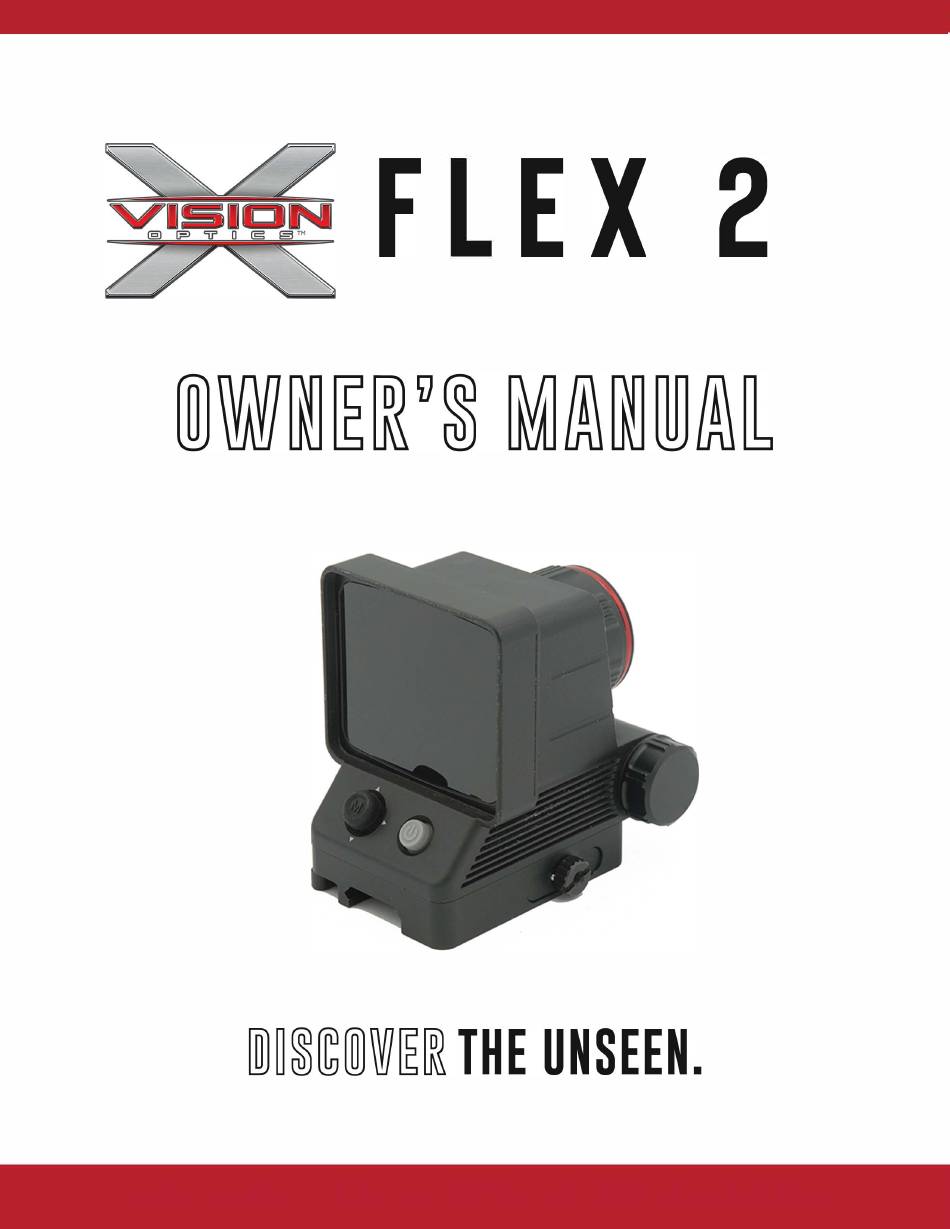

  • Page 1 THERMRL REFLEX SIGHT X-VISION OPTICS I 5140 MOUNDVIEW DR. I RED WING, MN 55066...
  • Page 2 PAGE 1 ABOUT FLEX 2 PAGE 2 QUICK START PAGE 3 RETICLE PARAMETERS PAGE 4 BUTTON OP ERATION PAGE 5 SAFETY & FCC PAGE 6 SP ECIFICATIONS TR2 THERMAL SIGHT 18500 RECHARGEABLE BATTERY 18650 BATTERY ADAP TER CAP UNIVERSAL BATTERY CHARGER...
  • Page 3 (1) DISPLAY (2) JOYSTICK (3) POWER BUTTON (4) CLAMPING PLATE (5) MOUNT TIGHTNESS ADJUSTMENT (6) BATTERY COVER (7) LENS FOCUS (8) THERMAL SENSOR ( 3 ) ( 4 ) ( 5 ) (9) BATTERY COMPARTMENT (10) PICATINNY MOUNT ( 7 ) (11) LASER (12) TYPE-C PLUGIN (13) QUICK RELEASE...

  • Page 4: Install Batteries

    INSTALL BATTERIES + REMOVE THE THREADED BATTERY COVER IN A COUNTERCLOCKWISE DIRECTION (6). + INSERT ONE 18500 BATTERY INTO THE BATTERY COMPARTMENT (9) WITH POSITIVE END FACING INWARD AND NEGATIVE END FACING OUTWARD. + TIGHTEN THE BATTERY COVER CLOCKWISE. + NOTE: THE DEVICE CAN CONNECT TO AN EXTERNAL POWER SUPPLY VIA THE USB-C CABLE.
  • Page 5 TYPE SECTION INCHES@ 100 YDS 35.1 SECTION A 35.1 SECTION B SECTIONC � 35.1 SECTION A 35.1 SECTION B SECTIONC 315.9 SECTION D 17.5 SECTION E � SECTION A 263.2 SECTION B 140.4 SECTIONC -� 17.5 SECTION D -� 35.1 SECTION A '-' I �f...
  • Page 6 BUTTON OPERATING TIME BUTTON BUTTON CURRENT STATUS OPERATION SHORT LONG 1) - - - - 1) POWER ON DEVICE 1) POWERED OFF 2) HOME SCREEN 2) SHUTTER CALIB. 2/3) POWER OFF STANDBY THE DEVICE 3) SAVE AND RETURN 3) SHORTCUT TO HOME SCREEN MENU POWER...
  • Page 7 PLEASE PAV ATTENTION TO THE FOLLOWING: + Do not point the laser at eyes. + Do not look into the laser with optical devices. + Do not disassemble, alter, or repair the laser yourself. + The laser can be hazardous to your health. + The wave length of the laser is 650 nm.

  • Page 8: Color Palette

    MAGNIFICATION: 1 - 4X THERMAL SENSOR: 384 X 288 PIXEL SIZE: 121,1m FRAME RATE: 50 HZ OBJECTIVE LENS: 25 MM FIELD OF VIEW: 55 FT@ 100 VD DETECTION RANGE: 1,700 VD RECOGNITION RANGE: 750 VD STADIAMETIC RANGEFINDING: PICTURE IN PICTURE {PIP): PIP: NETD:�40 MK °...
  • Page 9 FOR CUSTOMER SERVICE CONTACT US AT: EMAIL: SUPPORT@XVISIONOPTICS.COM I PHONE: 833.993.2382 PATENTED IN EU, USA, TAIWAN & CHINA US PATENT NO. US 10,466,467 B2...
