X-Vision Optics XANB60 User Manual

Night vision monocular

Night Vision Monocular (XANB60)

Thank you for your purchase of the X-Vision Night Vision Monocular

Please read this guide carefully and keep for future reference.

PACKAGE CONTENTS

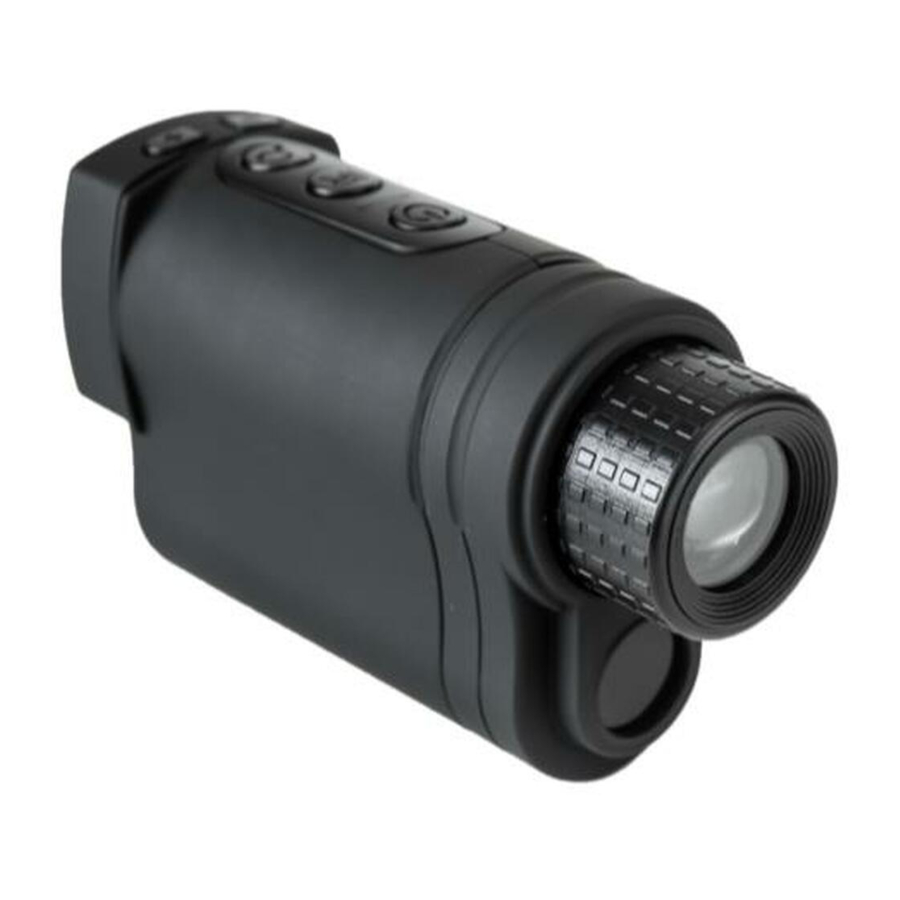

Monocular

1. POWER: Press and hold to power on and off.

2. IR: Press IR for 4 levels of brightness (IR Off->IR1

>IR2->IR3->IR Off..) when using the monocular at night.

First time power on, IR is set to IR2.

3. ZOOM: Press Zoom to zoom in at multiple levels:

4.5X and 6X. Once reaching 6X, keep pressing zoom to

go back to 3X.

4. +: Press + to increase the screen brightness

5. –: Press - to decrease the screen brightness

6. FOCUS WHEEL: Turn the wheel to focus.

7. BATTERY COMPARTMENT

8. BATTERY COMPARTMENT SWITCH: Switch to

the left to unlock the cover, and to the right to lock the

cover.

9. TRIPOD HOLDER

User Manual

(Model# XANB60).

Protection Case

3X,

Lanyard

3 4

Table of Contents

Do you have a question about the XANB60 and is the answer not in the manual?

Page 1 Night Vision Monocular (XANB60) User Manual Thank you for your purchase of the X-Vision Night Vision Monocular (Model# XANB60). Please read this guide carefully and keep for future reference. PACKAGE CONTENTS Monocular Protection Case Lanyard ABOUT THE MONOCULAR 1. POWER: Press and hold to power on and off.
Page 2 10. LCD SCREEN 11. WRIST STRAP HOLDER QUICK START Install Batteries 1. Open the cover . 2. Take out the cartridge and install 6 AA Alkaline batteries. 3. Close the cover. Turn on the Monocular 1. Press and hold the Power button to turn ON the monocular. 2.
Page 3 PRODUCT SPECIFICATIONS Viewfinder Electronic (EVF) LCD Screen Size 1.5” Aperture F1.4 with adjustable aperture Day and Night dual mode Daytime/Nighttime Adjust Automatic Visual Distance Up to 900 feet (300 yards) in total darkness Object Lens Magnification 6X Visual Angle 10° degrees Luminance Invisible IR LED Power Supply...
