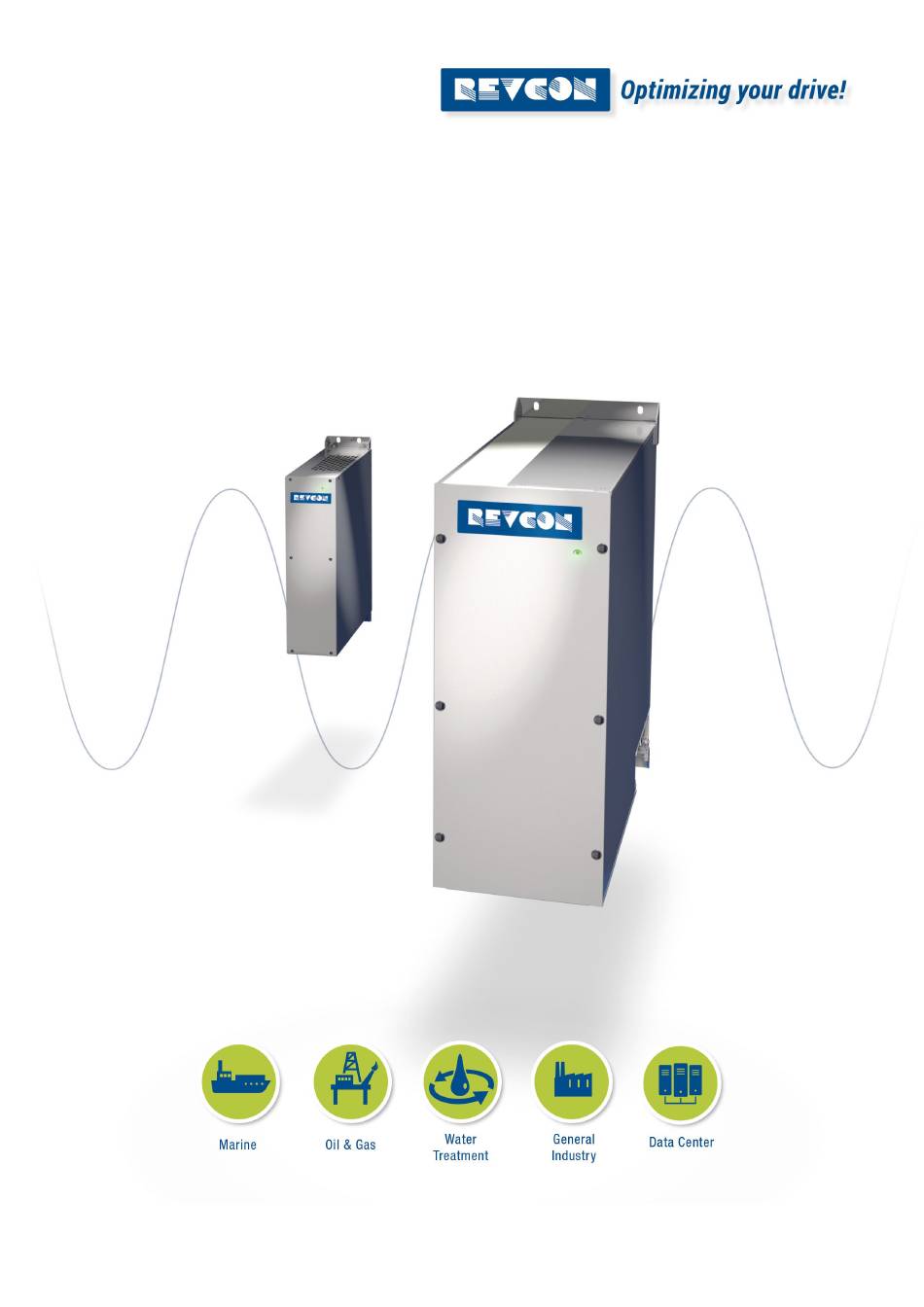

- Page 1 Commisioing guide Harmonic Filter RHF-Active Software configuration guide Version 2/2023...
-
Page 2: Table Of Contents
Content 1. Important Information ................2 1.1 About the manual ........................... 2 1.2 Terms and definitions ........................2 1.3 Working principle – RHF-Active ...................... 2 2. Connection ....................4 2.1 Required hardware ......................... 4 3. Home ......................8 3.1 Home page ............................. 8 4. -
Page 3: Important Information
In order to commission the active harmonic filter, a good understanding of the working principle is mandatory. The following picture is showing the basic topology and the working principle of the RHF-Active. Active Harmonic Filters are parallel filter circuits injecting harmonics into the supply. These Harmonics have phase shift of 180°... - Page 4 RHF-Active injected harmonics. As a result, harmonics upstream of the RHF-Active will be low. The RHF-Active will inject a harmonic current of same amplitude and frequency, but reverse angle into the connection point. Therefore, the theoretical result of the THDi upstream of the RHF-Active is 0%, assuming that the filter is sized for the full THC (Total Harmonic Current).
-
Page 5: Connection
2.1 Required hardware For connection of the RHF-Active, a RS485 to USB converter is required. 2.2 Software For connection of the RHF-Active to the PC the latest RHF-Active PC software should be used. This can be downloaded from www.revcon.de or requested from info@revcon.de... - Page 6 Content 2.3 Connection – PC to filter module For connection of the RHF-Active to the PC the latest RHF-Active PC software should be used. In order to establish the connection to the filter module. Got to: “Settings” → “Connection” 1. “Port Check”...
- Page 7 2. Connection 2.4 Connection – Parallel setup RHF-Active filters rated >55A are constellation of parallel setups. When ordered this way the filters will be set for parallel operation by factory. Settings can be changed in system level. If the compilation of active filters are changed, it can be necessary to follow the parallel setups.
- Page 8 2. Connection Step two: Configure individual filters for parallel operation: In order to run RHF-Active in parallel, the individual filters must be set to the correct total compensation current connected (“Parallel total comp. Current [A]”). This setting can be done in system mode.
-
Page 9: Home
3. Home 3. Home 3.1 Home page The first page of the RHF-Active is “Home” This page gives an overview of considered interesting values, such as “Voltage”, “Grid Power”, Grid current” and “Load current” Set the unit into operation Shut down... -
Page 10: Settings
4. Settings 4. Settings 4.1 Settings – Device The Device settings are mayor function paramaters of the RHF-Active. It is recommended that these paramters are only changed while RHF-Active is “Shut down” Set the unit into operation Shut down Turn of operation ↓... - Page 11 In1. (10-24V high to start, 0V to Stop) PFC capacitance The RHF-Active can be used, as a hybrid system for reactive power compensation on fundamental current (I1). In this mode, the RHF-Active controls additional passive PFC equipment. The value entered corresponds to the individual capacity of the passive PFC circuit in µF.
- Page 12 Target for reactive current compensation. Can be set Capacitive or Inductive. (leading or lagging current) VDE mode VDE Mode can be enabled if active filter is used with REVCON Regen unit in order to reach the VDE-AR 4105 Reactive power...
-
Page 13: Settings - Angle
4. Settings 4.2 Settings – Angle The RHF-Active is injecting harmonics of opposite angle, compared to the measured value. Deviation between measured value and injected value can be adjusted in the “Angle” settings. Values are referring to degree (2.20 correspond to an offset of 2.2° (injection angle 180°+2.2°)). Negative values are possible. -
Page 14: Settings - Harmonics (Odd)
“Harmonics (odd)”. Values are referring to a factor of the individual harmonic amplitude (1.05 correspond to compensation of 105%). This setting is used to fine-tune the performance of the RHF-Active. These settings can be changed during operation on the RHF-Active. -
Page 15: Settings - Harmonics (Odd/Even) - Fine-Tuning Harmonics
Harmonic on PQ analyser or start with 3 Harmonic if relevant content (e.g. in 3P4W system) 4. Add +0.01 to the corresponding harmonic value in the RHF-Active software. 5. Review the result: a. If harmonic content is less than before, move on to step 6. -
Page 16: Settings - Harmonics (Even)
105%). This setting is used to fine-tune the performance of the RHF-Active. These settings can be changed during operation on the RHF-Active. Even order harmonics may be caused by unbalance in the load. For symmetrical load, compensation of the even order harmonics should not be required and settings of 0.00 is recommended. -
Page 17: Settings - Calibration
2. Install PQ analyser or other accurate current measurement with detailed I calculation. Measurement should be in the same position as the CT connected to the RHF-Active. 3. Compare “load current” I (Home) and measured current by the measurement device connected (I 4. -
Page 18: Settings - Debug
4. Settings 4.7 Settings – Debug The Debug page can give information on different MODBUS RTU address. This page is currently reserved for factory use only. RHF-Active commissioning guide... -
Page 19: Settings - Connection
4. Settings 4.8 Settings – Connection Port Check Checks for available USB Devices. Connect Connects the PC Software to the RHF-Active if settings are correct. Disconnect Disconnects the PC Software to the RHF-Active. Serial Port Shows available USB Devices. Choose device corresponding to... -
Page 20: Data
NOTE! For CT on load side, there is no measurements of the grid side current. The grid side current should only be considered as a pproximation of the true current waveform. RHF-Active commissioning guide... -
Page 21: Data - Load
NOTE! For CT on grid side, there is no measurements of the load side current. The current should only be considered as approximation of the true current waveform. RHF-Active commisioning guide... -
Page 22: Data - Power
NOTE! For CT on load side, there is no measurements of the grid side current The values for grid side should be considered as approximations only. NOTE! For CT on grid side, there is no measurements of the load side current. The values for load side should be considered as approximations only. RHF-Active commissioning guide... -
Page 23: Data - Filter
5. Data 5.4 Data – Filter The Data-Filter page is showing voltage current waveforms of the RHF-Active. This individual current and voltage can be enabled and disabled using the check marks on the left side. This page is also showing the DC Bus voltage which can be used to indicate errors. -
Page 24: Data - Filter
5. Data 5.5 Data – Filter The Data-Temperature page is showing the individual SiC and ambient temperature. These individual temperatures can be enabled and disabled using the check marks. RHF-Active commissioning guide... -
Page 25: Data - I/O
“threshold 2” is reached. This is used for hybrid harmonic filter. Input1 – IN1 This signal is used for controlling the filter operation (RUN) High: will turn unit into run Low: shut down This function is only active for run mode: “Manually” RHF-Active commisioning guide... - Page 26 Low: Primary parameter are set High: Secondary parameter are set In order to set secondary parameter, the input must be high during setup. It´s not recommended to change the settings during operation of the RHF-Active (shut down). RSVD1 Reserved for future purpose RSVD2...
-
Page 27: Record
6. Record 6. Record 6.1 Record - Ongoing/cleared alerts This page is showing ongoing and cleared alerts. Note that the cleared alerts are stored only in the PC software. Disconnecting from the device will lose this date. RHF-Active commisioning guide... -
Page 28: Possible Alerts And Troubleshooting
Error' detects the resonance point 2. Adjust active damping coefficient 1. If the power grid is restored, RHF- Active will automatically clear the fault; Check the voltage frequency 'System Frequency 2. If the power grid is normal and the... - Page 29 6. Record 1. Wait until the temperature returns to Check power and ambient 'Inverter Over normal，then restart the RHF-Active temperature or radiator Temprature' 2. Temperature sampling failure. Factory temperature repair 1. Set the correct CT transformation ratio Check the actual current and 'CT Set Error' 2.
