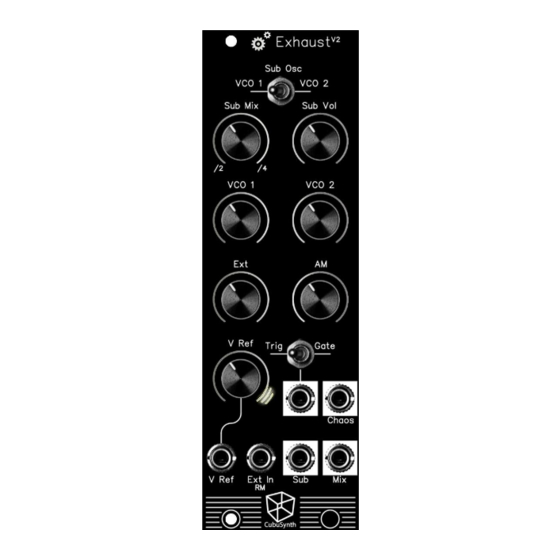

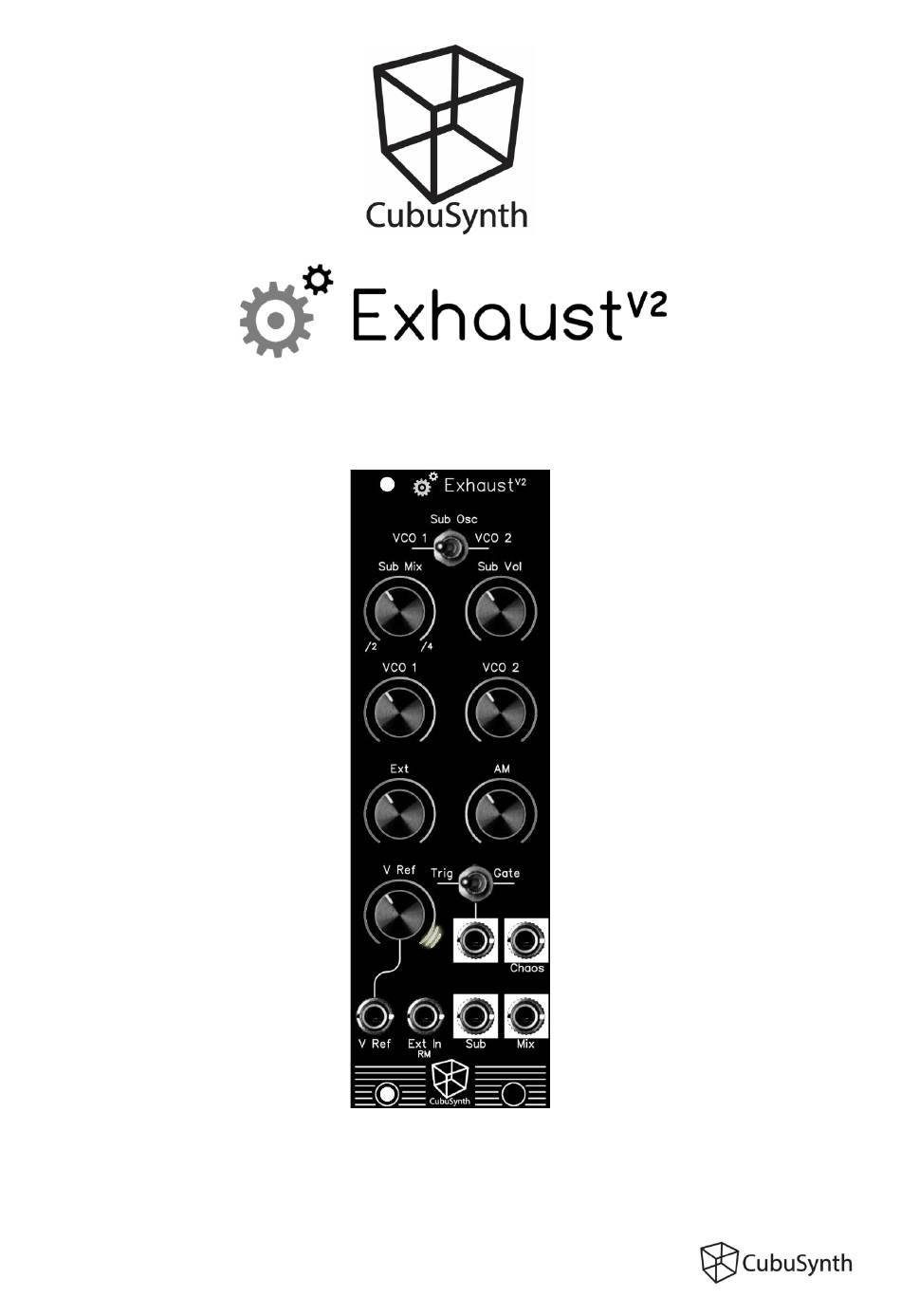

- Page 1 CubuSynth Exhaust V2 – User Manual PCB V1.1 Jul 2023 Expander Module for the CubuSynth Engine V2 User Manual PCB V1.1 Jul 2023 Written and Illustrated by Ruben Sponar Page 0...
- Page 2 Installation ………………..... Page 4 Limited Warranty: CubuSynth guarantees this product to be without defects in materials and workmanship for a period of one year from the date of purchase (proof of purchase/invoice needed). Malfunctions due to improper supply voltages, incorrect or reversed Eurorack power cable connection, misuse of the product, removal of knobs, changing faceplates, or other causes determined by CubuSynth are the user's responsibility and are not covered by this warranty.
- Page 3 CubuSynth Exhaust V2 – User Manual PCB V1.1 Jul 2023 1. Introduction The Exhaust adds many features to your Engine VCO module like Sub-octaves, Mixing and a Gate generated by the Chaos signal. You can select one of the two VCO cores of the engine to Produce Square Waves one and two octaves below the Oscillators frequency.
- Page 4 CubuSynth Exhaust V2 – User Manual PCB V1.1 Jul 2023 2. Specifications • Size: 8HP / 40mm • Depth: 35mm (measured from the front panel) • Current Draw: +12V: +6mA -12V: -5mA 3. Key features − Two Sub-Octave generator with selection switch, Mix knob for -1 and -2 octaves (/2 and /4) −...
- Page 5 PCB V1.1 Jul 2023 4. Installation To connect the module, plug in the 10pin Ribbon cable correctly to your CubuSynth Engine and the Exhaust while your rack is powered OFF! Make sure orientation is correct. (Red stripe down). Please note that if you have V1 of the Engine, you will have to get the V1 Exhaust. They are not backwards compatible.
