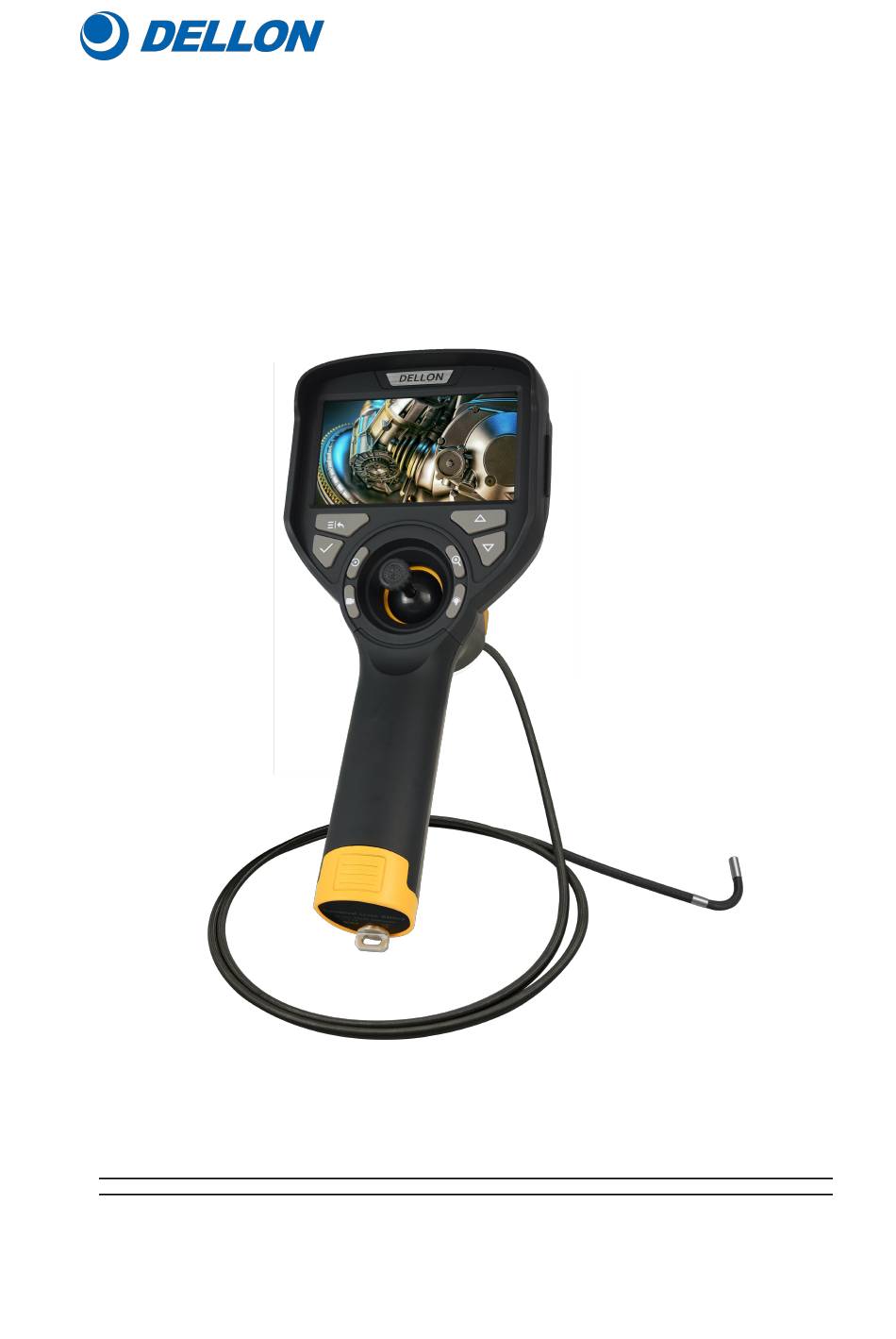

- Page 1 GM Series Industrial Videoscope Operation Manual ■ Please read this operation manual carefully before using the product. ■ Please keep it in a safe place for future reference.
-
Page 2: Table Of Contents
Thanks for purchasing our G-Mini series videoscope, if it is your first time to use the videoscope, please read this operation manual carefully in order to better and safer to use this product. Contents Product introduction ..................... 2 Hardware introduction ....................3 Operation ........................ -
Page 3: Product Introduction
Product introduction G-Mini series industrial videoscope (as shown above) is a new nondestructive testing instrument which integrates the technology of optics,electronic technique, precision machinery and photomicrography. ○Optics inspection The controller is equipped with high brightness LCD display, an ultra-small camera and the video signal is processed and amplified to clearly display the detection results on the 4.3 inches LCD display. -
Page 4: Hardware Introduction
Hardware introduction Front of controller Power on/ off Menu/ return Down Replay Zoom Video Light adjustment Joystick Probe Battery cover Battery locking screw Power on/off button: Click the button to power on, press and hold the button for 2 seconds to power off. Menu/return button: Press menu/return button to switch between the real-time screen and the menu mode;... - Page 5 the real-time screen state in the preview list state. Video button: In the real-time picture state, press this button to start recording, and to press it again to stop recording. Joystick: Control the bending part moving, achieving comprehensive inspection. Up button: Press this key to move the cursor forward during menu setting. Down button: Press this key to move the cursor backward during menu setting.
- Page 6 Insertion cable and lens Insertion cable Bending part Insertion cable: IP67 waterproof. Bending part: It is controlled by joystick, 4-way articulation. Equipment assembly 1. Assemble the controller and probe 1.Joystick is aligned with the joystick hole in the controller.
- Page 7 2.The hook on the host is aligned with the slot of probe, and press it Hook tightly. Slot 3.Shown as above, the controller and the probe is assembled in place. 4.Tighten the locking screw.
- Page 8 2.Battery installation Battery positive Battery negative 1.Unscrew the battery locking 2. Put the positive pole of screw and remove the handle cover. the battery into the handle. 3. First put the handle cover on the 4. Tighten the locking screw buckle into the end of the handle, and clockwise.
-
Page 9: Operation
Operation 1. When using, first confirm that the videoscope has installed the battery and TF card, and press the power on/off button to turn on the controller. 2. Observe objects. a.Press the light adjustment button to turn on the LED light; b.Insert the probe into the observation body to reach the observation position；... - Page 10 4. Live image status： a.Press the magnification key to cycle the image to 5x magnification； b.Press the light adjustment button to adjust the light brightness to achieve the ideal display effect； 5. After the observation is completed, the articulation part is adjusted to straighten, and then safely exits the observation body and then shuts down.
-
Page 11: Software Interface Operation
Software interface operation In the real-time mode, tap the screen to bring up the main interface, the main interface is divided into the status bar, function menu and monitoring screen display area, and tap the blank area of the screen again to close the main interface: （In addition to the touch screen mode, the screen operation can be controlled by menu/back button, confirmation button, playback button, video button, up button, down button, magnification button and other buttons.）... - Page 12 2.Menu Tap the menu icon , enter the menu setting interface, which contains 6 sub menus: image settings, display settings, application settings, system settings, playback, WIFI. 3.Playback Click the icon on the main interface ， the software will leave the current monitoring screen and enter the file management page, where you can view and manage the recorded audio and video.
- Page 13 4.Image settings Click the Image settings icon ，the main interface pops up the setting options of the image. On this page, you can set the image contrast one after the other ，image brightness ，image tone ，image sharpness ，click the confirmation button or to save the settings.
- Page 14 5.Watermark Click the watermark icon ， the text input box appears on the interface, click the text input box, you can enter the specified text in the text input box. Then click on icon to confirm. 6.Grid Click the grid icon ，...
-
Page 15: System Settings
7.Rotate Click the rotation icon ，image will rotate from to 0° to 180°. The "R" icon in the status bar displays the rotation angle of the current monitoring screen. System settings Press the menu button on the screen to enter the menu setting interface, as below figure shows, there are 6 first-level menus: image setting, display setting, application setting, system setting, playback, WIFI. - Page 16 image contrast, image brightness, image tone, image sharpness. After adjusting the parameters, click to save. 2.Display settings After entering the display setting interface. In this interface, you can set image rotation, display brightness, rulers, and watermark annotations. After adjusting the parameters, click to save.
- Page 17 3.Application settings Enter the application setting interface, you can set time, language, sound, temperature alarm and other functions. A: Time settings Click to enter the time setting sub-menu to set the year/month/day/hour/minute.
- Page 18 B: Language settings Click to enter the language setting menu, 10 languages can be selected and set. C: Sound settings Touch or drag the light bar to adjust the playing sound volume of the controller. D: Temperature alarm Touch the icon on the right side of the temperature alarm to turn on the temperature alarm function.
- Page 19 A: System information: Click system information to view the software version information. B: System upgrade: Install the new software in the TF card and insert it into the device, click the icon to pop up the corresponding warning box to choose whether to upgrade, and ensure that the device cannot be powered off during the upgrade process.
- Page 20 C: Restore factory settings: Click this icon to pop up a corresponding warning box to choose whether to restore factory settings. D: Format: Click this icon to pop up a corresponding warning box to choose whether to format the memory card.
- Page 21 5. Playback Click this icon to enter the file playback interface. In the preview interface, click to select the file to be viewed, and then click the play button to view a single file. As follows, the picture playback view, you can switch the upper and lower pictures through the symbols on the left and right sides of the screen.
- Page 22 Click the delete symbol in the upper right corner of the screen, and a deletion warning dialog box will pop up to choose whether to delete the file. In the preview interface, click to select the file you want to view, and then click the play button .
- Page 23 Click the delete symbol in the upper right corner of the screen, and a deletion warning dialog box will pop up to choose whether to delete the file. 6.WIFI settings Click the icon to enter the WIFI setting interface, click the icon in the lower right corner of QR code, turn on the WIFI, and use your Android device to scan the QR code that appears on the WIFI interface to download and install the...
- Page 24 以下为图片内容，麻烦曹老师看看能 P 上吗 STEP1: Scan the code to download "Lp-connect" and install it STEP2: Enter the phone "Settings" and turn on WIFI STEP3: Find "GM-XXXX" from the WIFI list and connect Find "GM-XXXX" from the WIFI list (as shown in the following picture) and connect it, the initial password for wifi is 12345678, and then click the icon installed on the Android device to directly enter the device synchronization...
- Page 25 In the Android device synchronization interface, click on the icon to take a photo, click to record a video, and click to query the files stored in the device. Photo and video files are automatically stored in the device's TF card. Click the icon to enter the device album.
- Page 26 Click the icon to enter the settings interface. Click to set language ， Click and then find the device network mode to re-edit the WIFI connection name and password.
-
Page 30: Main Accessories
Main Accessories Controller screen Probe Battery Charger Cable... -
Page 31: Product Parameters
Product parameters Controller Category Specifications G-Mini Joystick control Built-in damping Articulation control Manual Probe Battery replacement structure Battery interchangeable method Structural features Monitor/ probe interchangeable Display screen 4.3 inches Display resolution 800*480 Interface TF/HDMI/ TYPE C（charge and read） TF card 32G TF card Display module... - Page 32 Package Waterproof tool box Waterproof Controller, IP64/ Insertion cable, IP67 Drop rating Probe Specifications Probe 3.9mm 3.9mm 6.2mm 6.2mm diameter Cable length 1.5M 1.5M Image CMOS1/9 CMOS1/9 CMOS 1/9 CMOS 1/9 Sensor Pixels 1,000,000 1,000,000 1,000,000 1,000,000 F4.7 F4.7 10mm~100mm 10mm~100mm 15mm-infinity 15mm-infinity 90°...
-
Page 33: Simple Troubleshooting
Simple troubleshooting Fault Causes Articulation part Check whether the insertion cable is entangled and working properly knotted, and the articulation should be controlled after straightening the insertion cable. Video without image Check whether the power is connected, whether the power is insufficient, whether the probe is installed in place, or pull out the battery and reinstall it and then turn it on again. -
Page 34: After-Sales Service
After-sales service 1. Service commitment 1.1 The main part of the product is guaranteed for 1 years. The warranty period for repaired parts is 6 months, and the warranty period for parts that are only repaired and not replaced is 3 months. Man-made damage is not covered by the warranty, and only maintenance costs are charged for lifetime maintenance. -
Page 35: Fault Maintenance Period
3. Fault maintenance period When the equipment needs to be repaired after inspection, we will complete the maintenance task within one month after receiving the equipment. In case of special circumstances, if the maintenance cannot be completed within the time limit, the customer service staff will call you in advance to negotiate the maintenance date.
