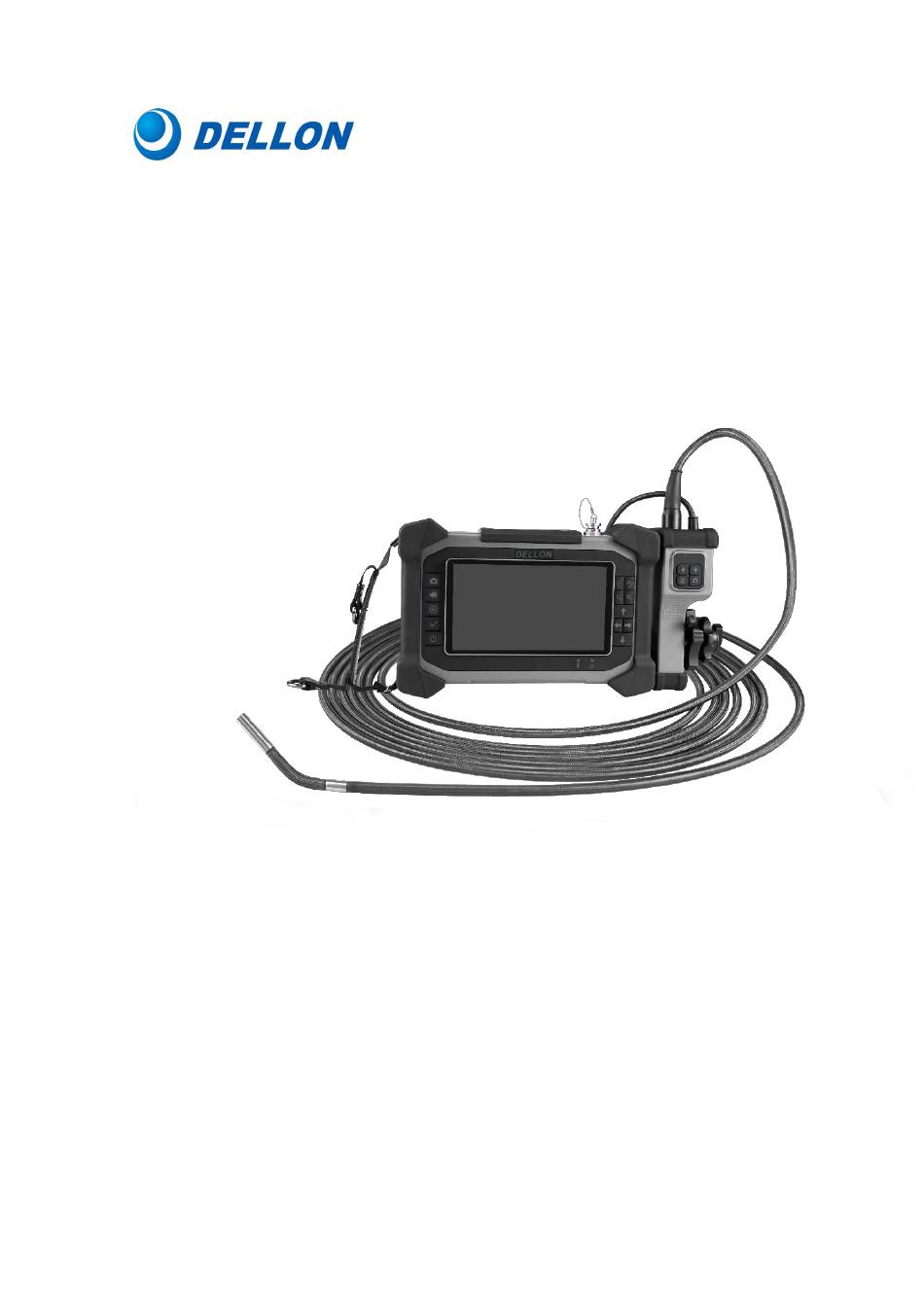

- Page 1 DX Industrial videoscope Operation manual ---------------------------------------------------------------------------------------------------------------------- ■ Please read the manual carefully before using the product. ■ Please keep it for easy reference...
-
Page 2: Table Of Contents
Catalogue Product instruction ..........................2 Hardware instruction .......................... 3 Controller front ........................... 3 Controller interface ........................5 Controller side ..........................7 Battery Instructions and Charging Tips ..................7 Probe ............................8 Menu opertion ..........................9 Product Specifications ........................23 Controller part ...........................23 Trouble shooting ..........................25 Precautions ............................25 After-sale Service .......................... -
Page 3: Product Instruction
Product instruction DX series Industrial videoscope is a new nondestructive flaw detection equipment, which combine with optics, electronic technical, precision machinery and micro-camera shooting. 〇 Optical detection The Controller adopts high brightness LCD, micro-small CCD/ CMOS camera, the video signal was processed and amplified, and the detection results will be clearly displayed on the 7inches LCD. -
Page 4: Hardware Instruction
Hardware instruction Controller front A/R: Capture button B/S: Video button C: Menu button D: OK button E: Power on/ off button and return button F/P: LED + G/Q: LED - H: Close focus button Far focus button J: Up button K：Right button L：... - Page 5 Capture button: In real-time image mode, press this button to take pictures. Video button: In real- time image mode, press this button to start or stop recording Menu button: Press this button to enter the menu interface when it is in real-time image mode.
-
Page 6: Controller Interface
When lock button is under non-locking condition “F”, turn the knob to control the bending angle U：Up D：Down L：Left R：Right Note: The Flexible part is bent in 4-way. When knob is rotated to the point that it can no longer be rotated, do not force it to rotate again; Otherwise, the rotating mechanism will be damaged. - Page 7 A: headphone jack B: SD slot C: USB data interface D: HDMI interface E: charging interface F: external cable interface Headphone jack: During video playback, plug in headphones to monitor the sound collected by the detection probe. Tf card slot: insert SD card. USB data interface: used for data transfer between the device and an external computer.
-
Page 8: Controller Side
Controller side Battery Instructions and Charging Tips Battery connector 12V charging port Electric quantity Battery level indicator button 1.When using the charger to charge the battery, the battery indicator light will keep flashing. When the battery is fully charged, the charger indicator will turn from red to green. -
Page 9: Probe
Probe Insertion cable Articulation part Insertion cable: It is a part that is inserted into the observed object, and this part is waterproof. Articulation part: It can be bent in four directions under the control of the operating lever. This part can be customized waterproof (IP67). The rest of the buttons have the same functions as the corresponding buttons on the controller. -
Page 10: Menu Opertion
Menu opertion After the device is turned on, it will automatically enter the video screen and the screen will be full screen. The lower right corner showsthe brightness level of the camera light. Click any point on the screen to call up the touch screen button interface. After about 8 seconds of no operation, the button interface will be automatically hidden. - Page 11 Negative film: Click the icon to enter the negative film state; Ruler: when the menu is set to "ruler 1", click the icon to turn on or off the XY cross ruler for comparison measurement; XY cross ruler display...
- Page 12 When the menu is set to "Ruler 2", click the icon to open or close the ring ruler; (The menu setting will be explained in detail in the menu introduction later.) Ring ruler display Split screen switching: cycle the button, click the icon to display in sequence, front full screen, side full screen, straight/side split screen display.
- Page 13 Front/side split screen display Image enlargement: Click the icon to enlarge the image, up to 3 times enlargement.
- Page 14 Take photo: Click the icon or the photo button, take a photo with one button, as shown in the figure. Recording: Click the icon or the recording button, one-key recording, when recording, the recording indicator flashes, and the recording time is displayed at the same time, touch the screen or press the icon or the recording button again to exit the recording state.
- Page 15 Playback: Click the icon to enter the picture and video playback interface, and click the or icon to switch between the picture preview interface and the video preview interface. Click the vertical blue scroll bar on the right side up or down or the up and down buttons to turn pages on the interface. Click directly on the pictures and videos or press the left and right keys to select files by jumping left and right.
- Page 16 When previewing image files and video files, click the icon to enter the delete interface and choose whether to delete the file. Setting: Click the icon or menu key to enter the menu interface.
- Page 17 Video settings After entering the menu interface, respectively click the corresponding icon at the top of the screen to enter video settings /screen settings /application settings /system settings White balance: The camera image can accurately reflect the color status of the subject, including automatic, cloudy, incandescent, sunlight, etc.
- Page 18 Hue: Drag the icon cursor or press the left and right keys to adjust the color tone, the user can choose according to the actual needs, the setting method is the same as above. Negative: Click "On" or "Off" to turn on or off the negative state, and press the OK button to switch between on and off.
- Page 19 Screen settings Screen brightness: Drag the icon cursor or press the left and right keys to adjust the screen brightness, the user can choose according to actual needs, the setting method is the same as above. Ruler: Click this cursor or enter the submenu to open or close the ruler. Scale 1 is an XY cross scale, and scale 2 is a ring scale.
- Page 20 Display mode: Click the left or right side of the icon ○ in the picture or the Ok key to select the display mode, the user can choose according to actual needs, the setting method is the same as above. Screen rotation: Click the left and right sides of the icon ○...
- Page 21 Application settings Date setting: Click the date setting light bar or the OK key to enter the date and time submenu, and to adjust the year/month/day/hour/minute. When selects the parameter with the cursor , click icon or the up and down keys to adjust the parameter , and press the OK key to complete the adjustment of the date and time.
- Page 22 Icon display: After the icon display state is turned on, in the real-time image state, the SD card marking, date and power are displayed on the screen respectively. Users can choose according to actual needs, and the setting method is the same as above. System settings Automatic shutdown: to set the length of the automatic shutdown time according to actual needs.
- Page 23 Software version: The software version is fixed, which is used to display the version status of the software. The device can be software upgraded via SD. Setting recovery: Users can choose whether to restore the factory settings of the device according to their needs, the method is the same as above. Format: Users can choose whether to format the memory card according to their needs, the method is the same as above.
-
Page 24: Product Specifications
Product Specifications Controller part Model Controller LCD monitor 7 inch Resolution 1280*720 30 fps Screen brightness 400cd/m² Screen contrast Touch screen Capacitive touch screens Video output HMDI high resolution USB interface Data transfer Memory card 32G SD Video resolution 1280*720 Picture resolution 1280*720 WIFI... - Page 25 Articulation probe Inspection cable dia. 8.2mm Inspection cable length 8M/10M/15M Inspection cable materials Tungsten wire Bending Angle >90° Waterproof IP64， IP67*（Articulation degree>90°） Camera Camera dia. 8.4mm Image sensor CMOS 1/4 Pixels 720P >120° 25mm-infinity Materials of the camera surface Titanium alloy Waterproof IP64，...
-
Page 26: Trouble Shooting
Trouble shooting Description Possible causes Solutions Cannot turn on the Battery is out Charge the battery or connect instrument directly to an external power supply Mnitor blue or blinking Camera is not installed properly Re-install the camera Abnormal video display Error in parameter adjustment on Adjusting the hue, contrast and colours... - Page 27 4. At the end of the use of the equipment, adjust the bending part straight, and then pull out the measured body, prohibit hard pulling and tugging. 5. When the device is finished, please turn off the power supply, and at the same time do a good job of protecting the lens pins by installing a protective cover for the pins (or directly to the built-in cable tray connection port) to avoid damage to the pins.
-
Page 28: After-Sale Service
After-sale Service 1.Service Commitment 1.1 The main body of the product is guaranteed for one year, the warranty period for the parts replaced by the repair is six months, the warranty period for the parts only repaired without replacement is three months, man-made damage is not covered by the warranty, lifetime repair is only charged for the cost of repair. -
Page 29: Maintenance Period
2.1 Your product is repaired by our after-sales service department and continues to be covered by the warranty period for the original machine. If the repaired part exceeds the free warranty period, please pay a repair service fee, which will be customised by our after-sales service department, for your product. - Page 30 Zhengzhou Runde Dellonscope Co., Ltd. Address.: North 2nd Floor, Building 15C, University Science & Technology Park, West 3rd Ring Rd. No.289，Zhengzhou, Henan, China Tel：+86-371 55693095 Website: www.china-borescope.com Email: info@dellon.cc...
