Summary of Contents for Hoover HLSI 363

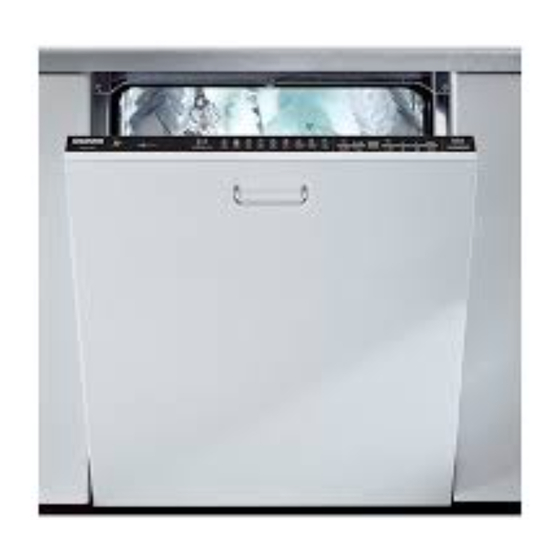

- Page 1 User instructions ® HLSI 363 DISHWASHER...
-
Page 3: Table Of Contents
CONTENTS pag. General safety rules pag. Water connection pag. Loading the salt Adjusting the upper basket pag. 10 Loading the dishes pag. 11 pag. 13 Information for test laboratories pag. 14 Loading the detergent pag. 15 Types of detergent pag. 16 Loading the rinse aid pag. -
Page 4: General Safety Rules
above and persons with reduced GENERAL SAFETY RULES physical, sensory or mental capabilities or lack of experience This appliances is intended to be and knowledge if they have been used in household and similar given supervision or instruction applications such as: concerning use of the appliance in a safe way and understand the - staff kitchen areas in shops,... - Page 5 In general it is not advisable to use For the maximum place loading, adaptors, multiple plugs and/or please refer to the "TECHNICAL extension cables. DATA" table/section. Do not remove the plug from the mains supply socket by pulling the WARNING ! mains cable or the machine itself.
- Page 6 Appliance complies with If it you need to move the machi- European Directives: ne after removing the packaging, do not try to lift it by the bottom of the door. 2006/95/EC (LVD); Open the door slightly and lift the 2004/108/EC (EMC); machine by holding on the top.
-
Page 7: Water Connection
WATER CONNECTION IMPORTANT The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused. The inlet and drain hoses can be directed to left or right. IMPORTANT The dishwasher can be connected to either cold or hot water, as long as it is no hotter than 60°C. - Page 8 The hose can be hooked over the side of Connecting the outlet hose the sink, but it must not be immersed in water, in order to prevent water from being syphoned back to the machine The outlet hose should disharge into a when this is in operation (fig.
-
Page 9: Loading The Salt
LOADING THE SALT The salt dispenser has a capacity of between 1.5 and 1.8 kg and, for efficient use of the appliance, it should be refilled from time to time according to the The appearance of white stains on dishes regulation of the water softener unit. -
Page 10: Loading The Dishes
ADJUSTMENT OF THE UPPER BASKET If 29 cm to 32,5 cm plates are normally used, load them onto the lower basket after the upper basket has been placed in its upper position and proceed as detailed below: 1. Pull out the upper basket; 2. - Page 11 LOADING DISHES A standard daily load is represented in figs. 1, 2 and 3. Using the upper basket Upper basket (fig. 1) The upper basket is provided with A = soup plates mobile racks hooked to the sides of the B = dinner plates basket, which can be regulated into 4 C = dessert plates...
- Page 12 Upper basket (fig. 3) - POSITION “B”: for dishes which, although standard size, have a particular A = glasses shape (very deep bowls, square dishes B = saucers or ones without borders etc.). C = cups D = small bowl - POSITION “C”: for larger than average E = medium bowl flat plates and/or ones with non-...
-
Page 13: Information For Test Laboratories
A standard daily load is represented in Please load the dishwasher sensibly to figs. 7 and 8. ensure the best wash results. Lower basket (fig. 7) IMPORTANT A = medium-sized saucepan The lower basket has a safety-stop B = large saucepan device, for its safe extraction, also C = frying pan especially useful with a full load. -
Page 14: Loading The Detergent
LOADING THE DETERGENT The detergent IMPORTANT It is essential to use a detergent that is specifically designed for dishwashers either in powder, liquid or tablet form. After pouring the detergent into the container, close the lid, firstly pushing (1) and then “FINISH”... -
Page 15: Types Of Detergent
the effectiveness of detergents containing TYPES OF DETERGENT the built in water softener/salt depends on the hardness of your water supply. Detergent tablets Check that the hardness of your water supply is within the effective range given Detergent tablets of different manufacturers on the detergent packaging. -
Page 16: Loading The Rinse Aid
LOADING THE RINSE AID The rinse aid The rinse aid, which is automatically released during the last rinsing cycle, helps the dishes to dry quickly and prevents spots and stains forming. Filling the rinse aid container The rinse aid container can be found to the left of the detergent container (fig. -
Page 17: Cleaning The Filters
CLEANING THE FILTERS The filter system (fig.A “4”) consists of: a central container that traps the larger particles; a flat gauze that continuously filters the wash water; a micro filter, located beneath the gauze, that traps the tiniest particles ensuring a perfect rinse. - Page 18 PRATICAL HINTS How to make savings How to get really good wash If you want the dishwasher to give a complete wash, place the dishes in the results dishwasher at the end of each meal and if necessary turn on the COLD RINSE Before placing the dishes in the cycle to soften the food remains and dishwasher, remove any remaining...
- Page 19 CLEANING AND MAINTENANCE To clean the dishwasher outside, do not use solvents (degreasing action) neither abrasives, but only a cloth soaked with water. The dishwasher does not require special maintenance, because the tank is self-cleaning. Regularly wipe the door gasket with a damp cloth to remove any food remains or rinse aid.
-
Page 20: Description Of The Control Panel
DESCRIPTION OF THE CONTROL PANEL "ON/OFF" button "START"/"RESET" button (start/cancelling programme) "PROGRAMME SELECTION" button "OPTION SELECTION" lights "DELAY START" button "SUPER ECO" option button DIGITAL DISPLAY "ALL IN 1" option button Programme guide DIMENSIONS Width x Height x Depth (cm) 59,8 x 81,8 ÷... -
Page 21: Programme Selection And Special Functions
PROGRAMME SELECTION WARNING! AND SPECIAL FUNCTIONS If you open the door during the (Use in conjunction with programme guide) drying cycle, an audible audio signal advises you that the drying cycle has not yet finished. Programme settings Open the door and place the dirty dishes inside the appliance. - Page 22 Option buttons "DELAY START" button "SUPER ECO" button Dishwasher start time can be set with this button, delaying start from 1 to 23 hours. This button provides an energy and time saving of 25% on average (according to the select cycle) reducing the wash water temperature and the drying time during the Proceed as follows to set a delayed start: final rinse.
- Page 23 Alarm mute for the PROGRAMME Memorization of the last programme used last programme used The alarm for the programme end may be memorized by following the below: muted as follows: IMPORTANT The dishwasher must ALWAYS be off IMPORTANT before start of this procedure. The dishwasher must ALWAYS be off before start of this procedure.
- Page 24 The dishwasher is able to signal a series of faults in the display. AUTOMATIC FAULT SIGNALS FAULTS CAUSE SOLUTION No water (inlet hose closed). Turn off the dishwasher, open the appears on the display and inlet hose and reset the cycle. the alarm sounds.
-
Page 25: Water Softener Unit
WATER SOFTENER UNIT * The softener unit is set in the factory at level 4 (d4) as this satisfies the requirements of the majority of users. Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. -
Page 26: Programme Guide
PROGRAMME GUIDE Wash with prewash For wash programmes with prewash, it is advisable to add a second dose of detergent (max. 10 g) directly in the machine. Programme Description Cycle with alternated action of water jets and steam. Steam Effective in softening and removing dried up soil and 75°C bacteria, with no need to pre-wash pots and dishes. - Page 27 Avarage Special function Programme contents Check list duration buttons in minutes available • • • • • 75°C • • • • 70°C • • • • 60°C • • • • 55°C • • • • • 45°C • •...
-
Page 28: Identifying Minor Faults
IDENTIFYING MINOR FAULTS Should the dishwasher fail to operate, before contacting the Service Centre, make the following checks: FAULT CAUSE REMEDY Plug is not connected to wall Connect electric plug socket O/I button has not been pressed Press button 1 - Machine completely dead Door is open Close door No electricity... - Page 29 FAULT CAUSE REMEDY See causes for no. 5 Check Bottom of saucepans have not Burnt on food remains must been washed well be soaked before putting pans in dishwasher Edge of saucepans have not Reposition saucepans been washed well Spray arms are partially blocked Remove spray arms by unscrewing ring nuts clockwise and wash under running water...
- Page 30 Hoover guarantees all parts of this product for 5 years from the date of purchase. During that time Hoover will replace or repair all defective parts free of charge, except for parts subject to fair wear and tear such as belts. The call out fee and labour costs are chargeable after the first 12 months.
- Page 31 This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.
- Page 32 Also Channel Islands, Scilly Isles, Orkney, Shetlands See local telephone directory Hoover policy is one of continuous development and for this reason we reserve the right to change specifications without prior notice HOOVER LIMITED DRAGONPARC ABERCANAID MERTHYR TYDFIL MID-GLAMORGAN CF48 1PQ...
