Summary of Contents for Republic Design House Kahuna

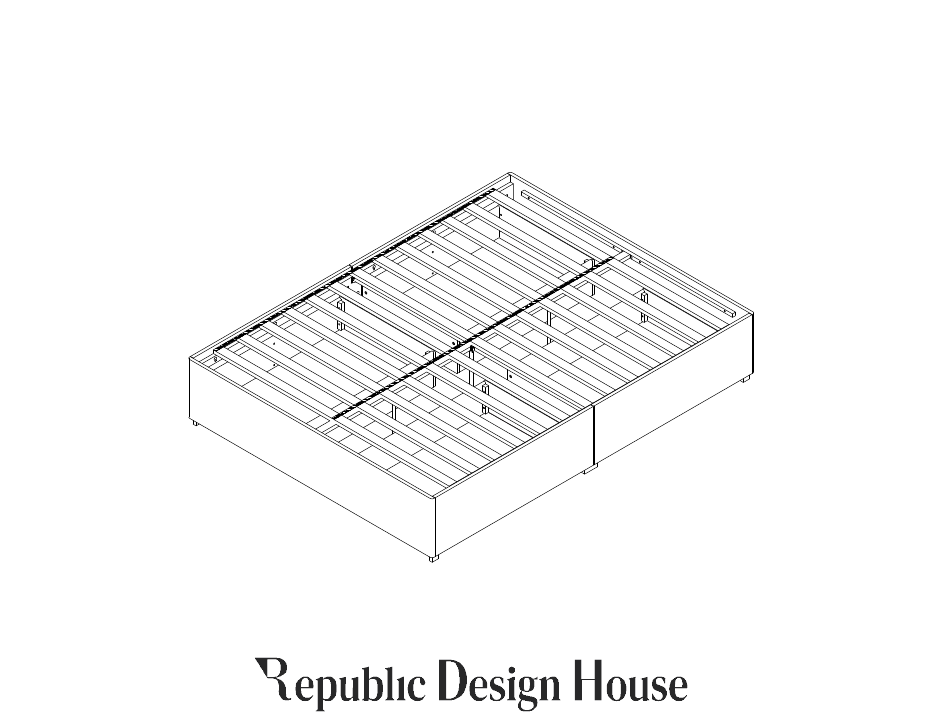

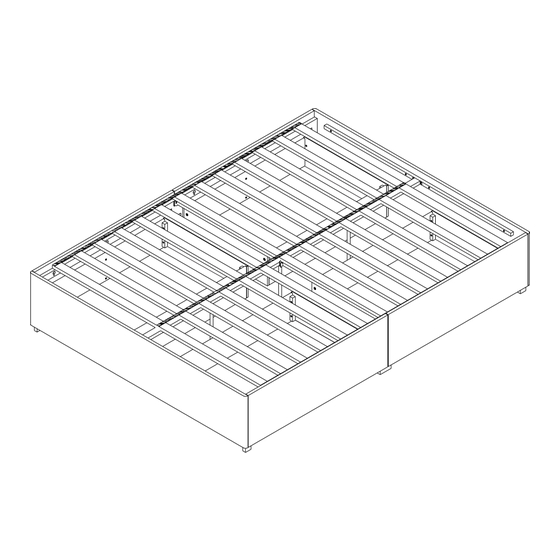

- Page 1 “Kahuna” Platform Storage Bed Assembly Instructions (4 Drawer, 2 Drawer or No Drawer) ™...
- Page 2 “Kahuna” Platform Storage Bed Assembly Instructions (4 Drawer, 2 Drawer or No Drawer) ™...
- Page 3 “Kahuna” Platform Storage Bed Assembly Instructions (4 Drawer, 2 Drawer or No Drawer) 5. Center Support 4. Siderail Panel 3. Backboard 2. Footboard 1. Siderail Frame 1- Piece 2- Pieces (2 Dr) 1- Piece 2- Pieces 1- Piece 4- Pieces (No Dr) 10.
- Page 4 “Kahuna” Platform Storage Bed Assembly Instructions (4 Drawer, 2 Drawer or No Drawer) (con’t) 13. Drawer Wheels 14. Drawer Support 15. Support Slats 11. Drawer Back 12. Drawer Face 8- Pieces (2 Dr) 2- Pieces (2 Dr) 1- Set 2- Pieces (2 Dr)
- Page 5 “Kahuna” Platform Storage Bed Assembly Instructions (4 Drawer, 2 Drawer or No Drawer) 14mm Washer 20 pcs (2 Drawer) 20mm Size Bolt 32 pcs (No Drawer) 16mm Size Bolt 32 pcs (2 Drawer) 34 pcs (2 Drawer) 25mm Size Bolt...
- Page 6 “Kahuna” Platform Storage Bed Assembly Instructions “Kahuna” Platform Storage BedAssembly Instructions (4 Drawer, 2 Drawer or No Drawer) STEP 1: Insert Bolt into all insert openings, All threading of bolts should be started except the middle top opening, see by hand, with a minimum of 3 rotations description below.
- Page 7 “Kahuna” Platform Storage Bed Assembly Instructions (4 Drawer, 2 Drawer or No Drawer) STEP 2: Take Side Panel(s) with bolts partially screwed in and attach to Siderail Frame by inserting bolt heads (all 6 at same time) in keyhole opening...
- Page 8 “Kahuna” Platform Storage Bed Assembly Instructions (4 Drawer, 2 Drawer or No Drawer) (IGNORE THIS STEP- If you ordered a 4 Drawer bed) See Diagram 1.2 STEP 3: After Side Panels have been attached to the Siderail Frame, using Allen Wrench...
- Page 9 “Kahuna” Platform Storage Bed Assembly Instructions (4 Drawer, 2 Drawer or No Drawer) STEP 4: Attach Footboard and Backboard the same way the side panels were attached using bolt & washer (See Diagrams 1.1 & 1.2) on previous pages. Tighten all bolts and make sure the frame is secure.
-
Page 10: Important Note
“Kahuna” Platform Storage Bed Assembly Instructions (4 Drawer, 2 Drawer or No Drawer) STEP 5: Attach Center Support Legs to Center Support Bar Important Note: using bolts Adjust levelers on bottom STEP 6: Attach assembled Center Support Bar to the assembled... - Page 11 “Kahuna” Platform Storage Bed Assembly Instructions (4 Drawer, 2 Drawer or No Drawer) STEP 7: Attach Center Support Bars to main Center Support Bar by inserting down facing tabs into up facing tabs as shown in below image. (Skip to the last page if you ordered this bed with no drawers) ™...
-
Page 12: Drawer Assembly
“Kahuna” Platform Storage Bed Assembly Instructions (4 Drawer, 2 Drawer or No Drawer) DRAWER ASSEMBLY STEP 8: Take (2) Drawer Sides and attach to Drawer Front using (4) bolts & (4) washers C , making sure the groove for the drawer bottom is lined up on all pieces. - Page 13 “Kahuna” Platform Storage Bed Assembly Instructions (4 Drawer, 2 Drawer or No Drawer) DRAWER ASSEMBLY CON’T STEP 10: Attach drawer back same way the drawer front was attached, using (4) Bolts and (4) washers C STEP 11: Attach drawer bottom support rod...
- Page 14 “Kahuna” Platform Storage Bed Assembly Instructions (4 Drawer, 2 Drawer or No Drawer) DRAWER ASSEMBLY CON’T STEP 13: Attach drawer face using (6) Bolts This bolt is used as a locking mechanism to and (6) washers C keep the drawer locked while drawer is closed, it is optional.
- Page 15 “Kahuna” Platform Storage Bed Assembly Instructions (4 Drawer, 2 Drawer or No Drawer) STEP 15: Assembled drawers roll into place STEP 15: Finally lay slat pack 15 on top of the within the cavities that were left open when assembled bed to complete bed.
