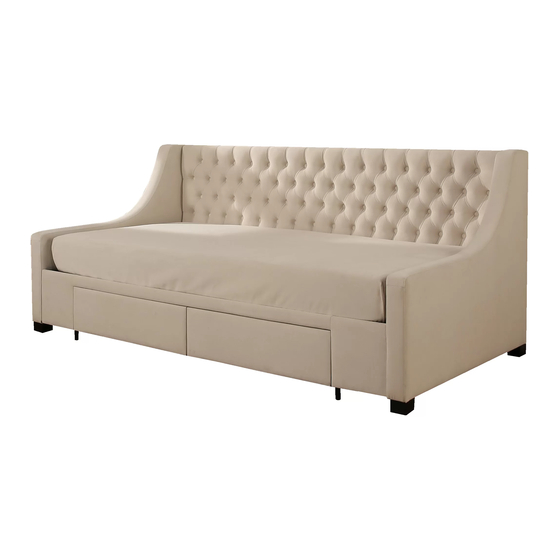

- Page 1 Laurin Daybed Assembly Instructions epublic esign ouse...
- Page 2 Laurin Daybed Assembly Instructions NOTE: Unbox and place all parts on a clean and smooth surface (rug, carpet) to avoid the parts from being scratched. NOTE: Follow assembly instructions step by step. NOTE: This bed comes in 3 boxes .
-
Page 3: Part List
Platform Drawer Bed Assembly Instructions PART LIST: Back 1pc Arms 2pcs Drawer Units 1pc Siderail 1pc Inside Deck Board 2pcs Connecting Rod 4pcs Assembly epublic esign ouse Video Available www.republicdesignhouse.com... -
Page 4: Hardware List
Platform Drawer Bed Assembly Instructions PART LIST: Support Legs 5pcs Legs 4pcs HARDWARE LIST: LABEL PICTURE DESCRIPTION LABEL PICTURE DESCRIPTION SMALL BOLT LONG BOLT SML FLAT ALLEN ALLEN WASHER WRENCH WRENCH LRG FLAT LOCK WASHER WASHER MEDIUM BOLT epublic esign ouse... - Page 5 Laurin Daybed Assembly Instructions STEP 1: Attach the 4 legs to the bottom STEP 2: Next, screw on the 8- support of both the upholstered arms legs to the underside of each using the A- long bolts drawer unit, 5 legs per unit and D- washers.
- Page 6 Laurin Daybed Assembly Instructions STEP 3: After the support legs are securely fastened, place a side rail, face down, TEP 4:Remove the velcro corner on both sides of the top of the back,exposing the attachment holes. From there attach the left and right arms using G-bolts ,E- flat washer and F-lock washer.
- Page 7 Laurin Daybed Assembly Instructions STEP 5: After both arms have been attached to the back, place the drawer unit upright (standing on the support legs), attach the left arm and right arm using the hook attachments (please note: the attachment bolts on either end of the left arm and right arm can be loosened and tightened with the allen wrench FIG.1).
- Page 8 Laurin Daybed Assembly Instructions STEP 6: Once the two corners are STEP 7: Lay the deck boards atop the bed, securely tightened and your bed is complete! connected, link drawer unit and back in the middle with the 4- connecting rods. (see diagram)
