Lumi OASIS NE102 Installation

OASIS
NE102
Please choose one of the following installation according to your handrails and pool type.
Read carefully the cautions and every steps before assembly and using your step.
Caution : File off all stripped or sharp edges before assembly to avoid injuries and pool damage.
Handrails box content:
18x 10x 10x 4x 4x
Screw ¾
Bolt 3"
Bolt 3½"
2x Braces

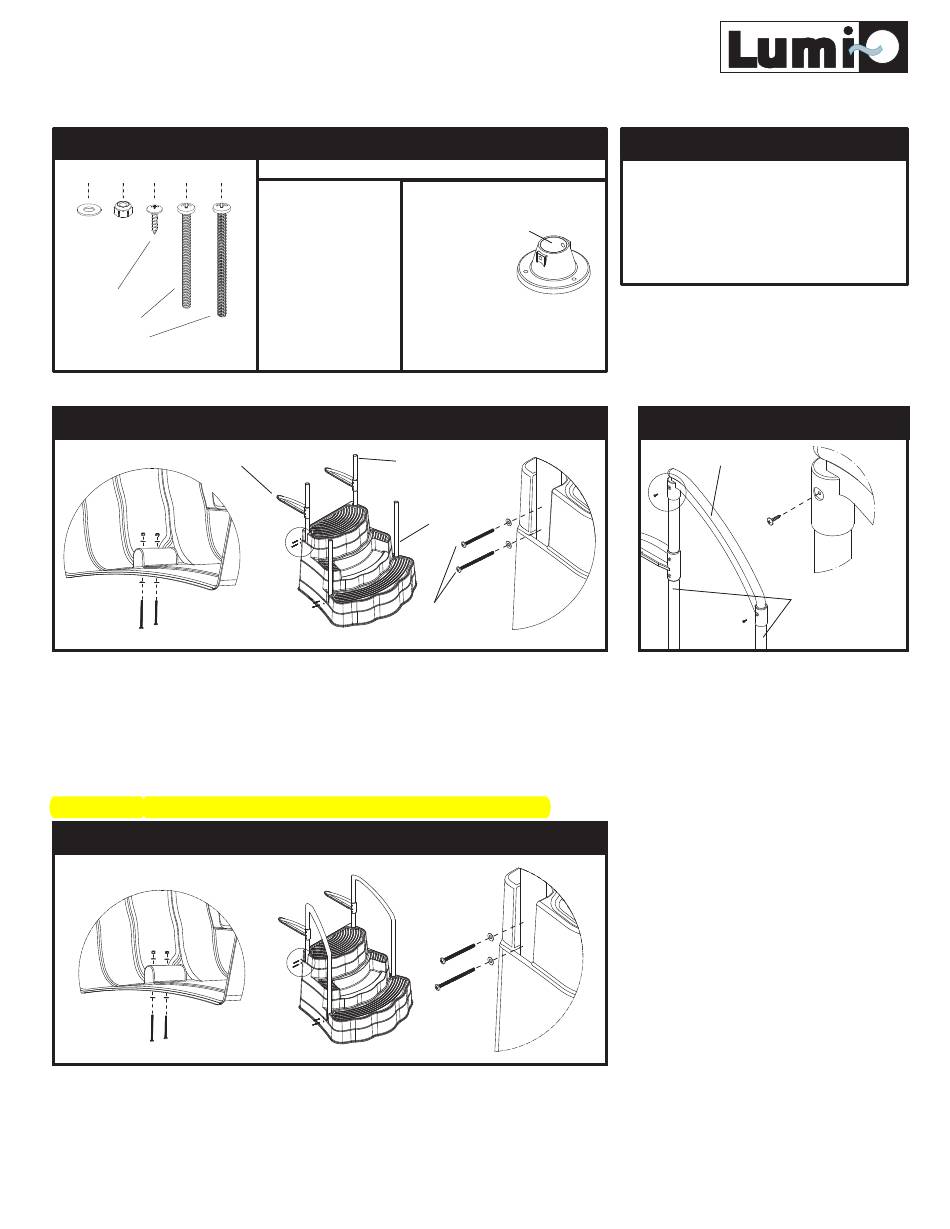

PVC HANDRAILS INSTALLATION :
Step 1
Brace
1- Slide the braces in the top of the shorter support tubes . Lay the step on the side and fix the support tubes on the step with the 3" bolt
for the upper holes (4), the 3 ½" for the lower holes(4), the nuts (8) and the washers(16). (fig.1)
2- Fix the ramps on the support tubes with the ¾" screws(4). (fig.2)
3- Fill the ballast unit with sand, seal with the plastic cap and put the ballast unit at the apppropriate place on the step. (annexe a)
4- Move the step into the water and allow the air to escape. Place the step by the pool wall leaving at least 1" between the step and the wall.
Ensure that the step touches the ground solidly. Lower the braces until its rests on the sidewalk. (annexe b)
5- Fix the braces on the sidewalk with concrete screws (not included ). (annexe c)
STAINLESS STEEL HANDRAILS INSTALLATION WITH BRACES:
Step 1
1- Slide the braces in the top of the handrails . Lay the step on the side and fix both handrails on the step with the 3" bolt for the upper
holes (4), the 3 ½" for the lower holes(4) ,the nuts (8) and the washers(16). (fig.1)
2- Fix the ramps on the support tubes with the ¾" screws(4). (fig.2)
3- Fill the ballast unit with sand, seal with the plastic cap and put the ballast unit at the apppropriate place on the step. (annexe a)
4- Move the step into the water and allow the air to escape. Place the step by the pool wall leaving at least 1" between the step and the wall.
Ensure that the step touches the ground solidly. Lower the braces until its rests on the sidewalk. (annexe b)
5- Fix the braces on the sidewalk with concrete screws (not included ). (annexe c)
Rev. 2007-11-26
Installation
Additionnal Material
PVC handrails Stainless steel handrails
- 2 x Flanges
- 4 x screws ¾
- 2 x short
support tubes
- 2 x long
- 2 x bolts 3"
support tubes
- 2 x ramps - 2 x nuts
Short support
tube
Long support
tube
3" Bolt (top)
3½" Bolt (bottom)
Not included:
- Sand
Note: you may need
approximately 100 lbs of sand
- Concrete screws
Helpful hint:
To ease the installation of the rails and
bolts, use a screwdriver to line up holes.
Step p 2
Ramp
fig.1
fig.1
www.lumi-o.com
fig.2
Support tubes
p.1
